Mill Identification R to Y


Additional pictures were added to this page on 1/1/19.

One of the most fun aspects of acquiring and restoring a windmill is the treasure hunt itself. The "hunt" often includes identification of remnants or partial mills as many are acquired as gifts from relatives, neighbors or friends or purchased from local farmers and ranchers cleaning out years of accumulation. As a result we are often contacted to assist in the identification of a mill as knowing its manufacturer, model designation and size are important first steps towards finding parts for its restoration.

While some mills, like those made by R.G. Marcy as the Red Star or Kenwood, were copies of those made by other prominent manufacturers, most mills have unique visual characteristics beyond part casting numbers. Windmill manufacturers were always looking to create a special feature or uniqueness that would separate them from their competitors and attract new buyers. Others did it to insure their place in future sales of replacement parts. Sometimes it was the shape of the tail vane, or the shape of the bonnet. Perhaps it was a sail brace/clip, wheel arm or the configuration of the wheel hub that the manufacturer thought made their mill "the best".

We have created this website page as educational help in narrowing your search identifying your lastest acquisition or the parts you are missing. While it is impossible for us to offer pictures of every windmill and its every part, we are hopeful these pictures, along with our other gallery pages, will help confirm your research or what others may have told you about your mill. This page is updated frequently as we acquire additional pictures that fit this format.

All pictures are protected by copyright laws and may not be used without the written permission of Windmill-Part.com or the original source.

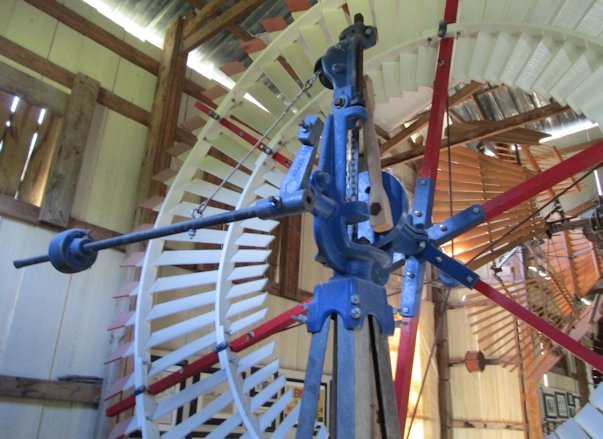

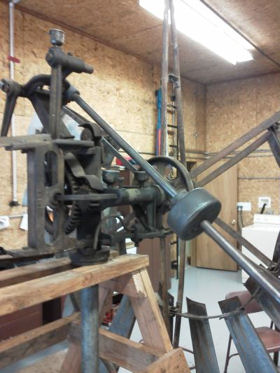

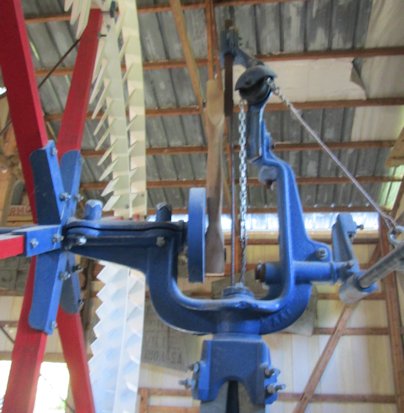

Red Cross / Red Star / Kenwood


Kenwood Open Gear Head


Kenwood Open Gear Head

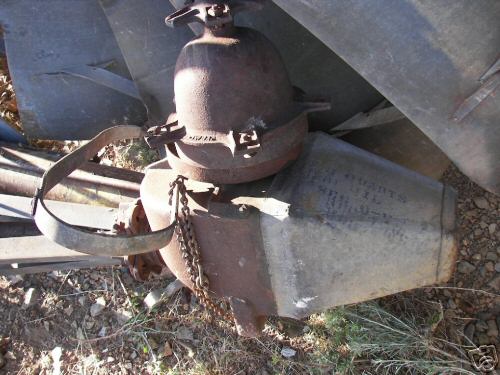

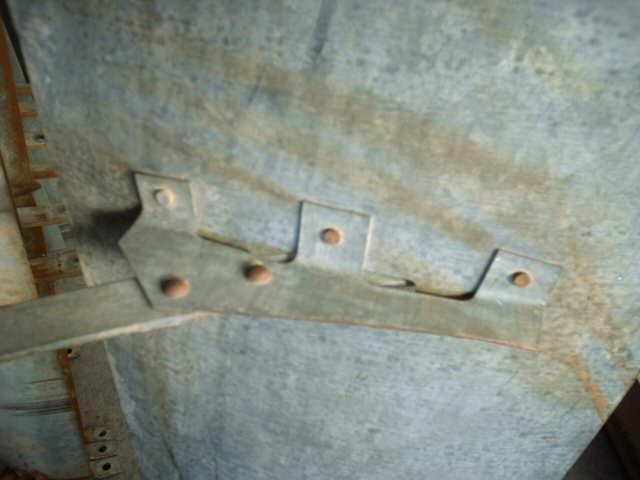

Kenwood Sail Brace

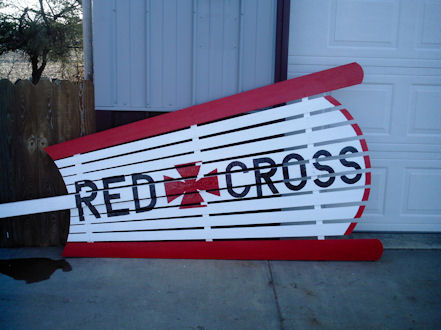

Vane

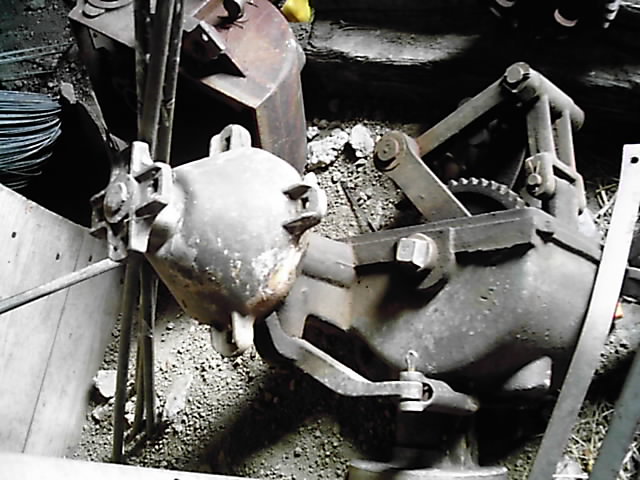

6ft Back-Geared


8ft Complete


Vane from 10ft Open Back Geared

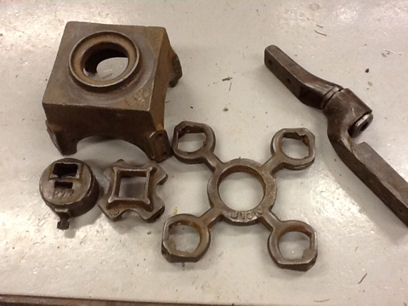

Red Cross Tower Castings, etc

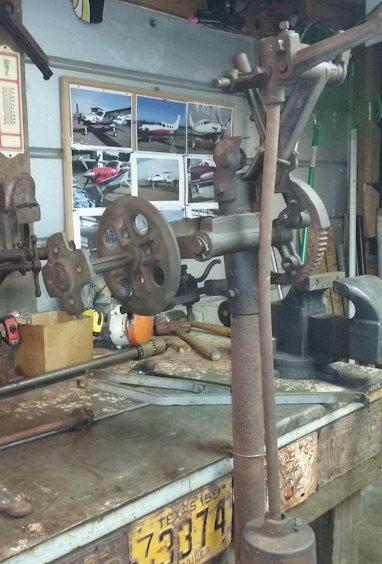

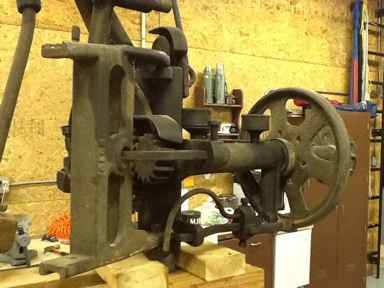

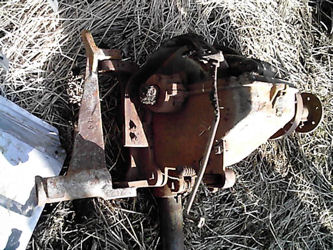

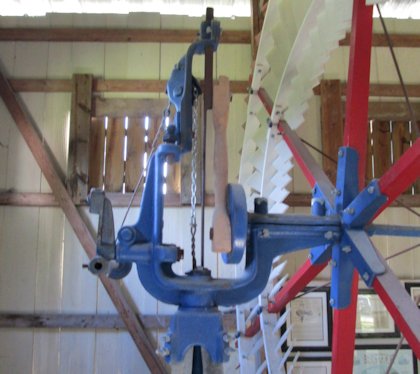

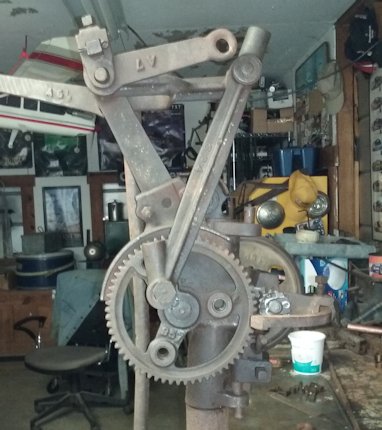

8ft Red Cross Back Geared Motor


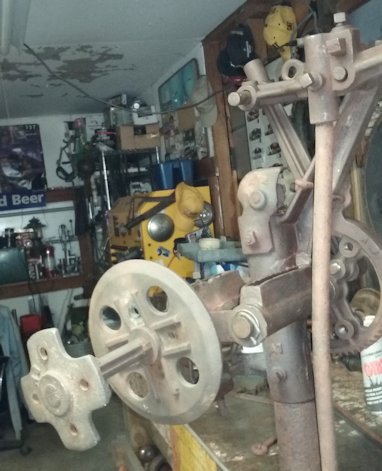

8ft Red Cross Back Geared Motor


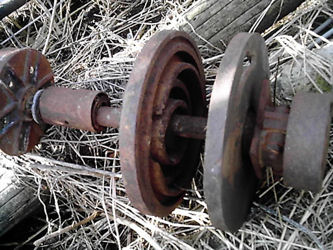

8ft Red Cross Back Vane & Wheel Section

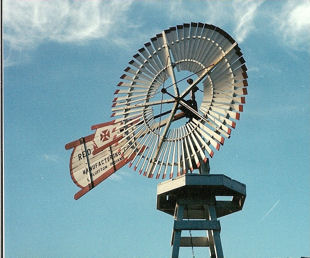

12ft Wood Solid Wheel Model


Early 10ft Wood Solid Wheel Head


10ft Wood Solid Wheel Vane (partial)

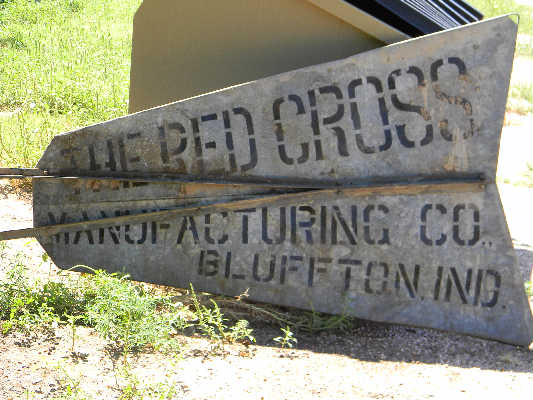

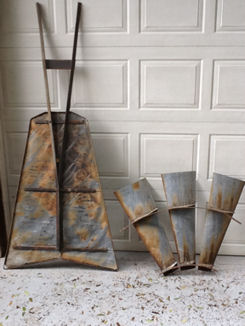

10ft Red Cross Vane


8 1/2ft Kenwood Main Frame

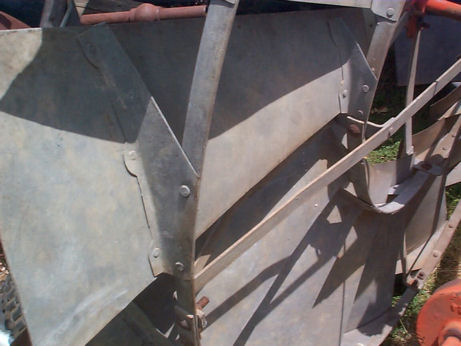

Red Cross Sail Brace


Early 10ft Wood Solid Wheel Head


Early 10ft Wood Solid Wheel Head


Early 10ft Wood Solid Wheel Head


6ft Back-Geared


6ft Back-Geared


6ft Back-Geared

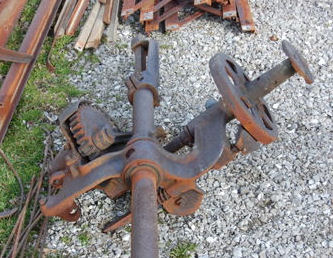

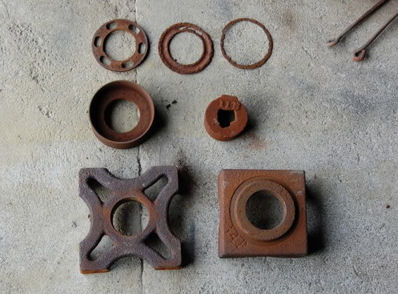

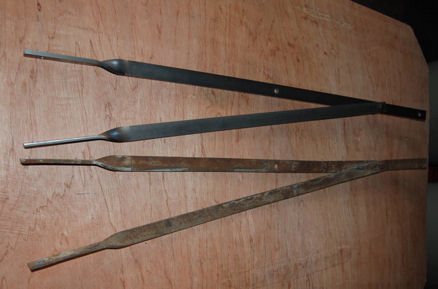

Rex

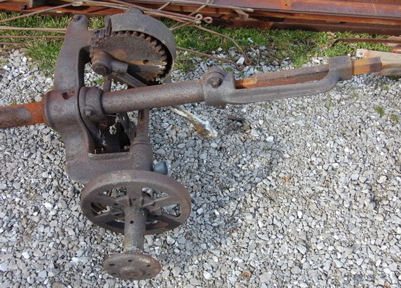

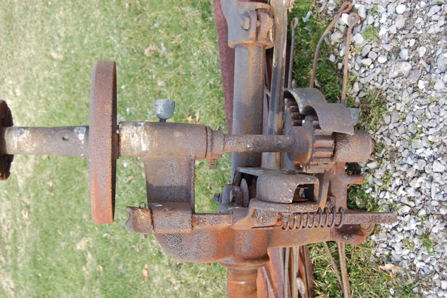

Motor


Motor


Motor


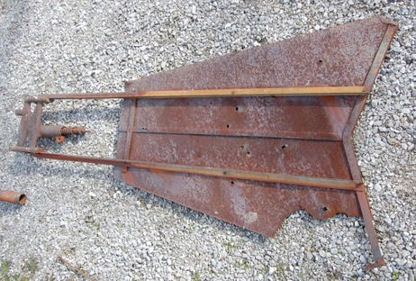

Vane


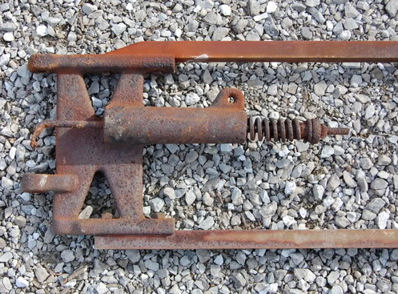

Vane Hinge


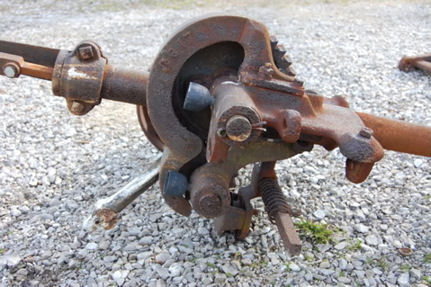

Motor (rear view)

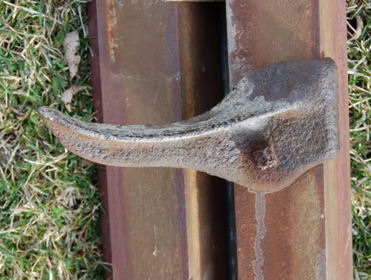

Tower Step


Tower Cap, Race & Stay

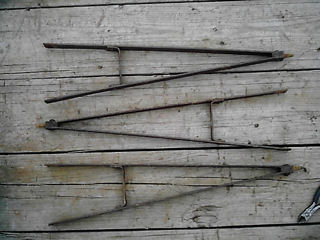

Spoke

Sears & Roebuck

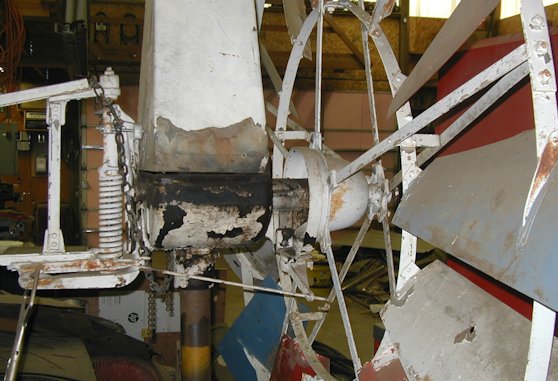

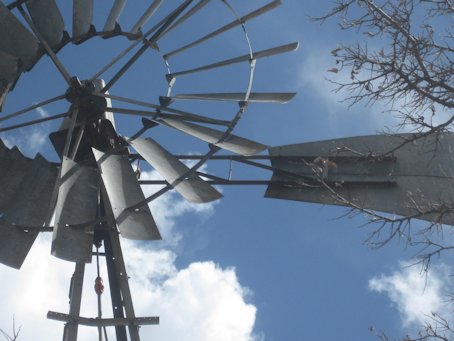

6ft Champion, (Stover Model M)


8ft David Bradley Model 802.8 (Monitor WC)


David Bradley Model 802.8 Vane


Champion Vane (Samson AirFlow Version)


Champion Stem (Samson AirFlow Version)


Champion (Samson AirFlow Version)




Champion (Samson AirFlow Version)

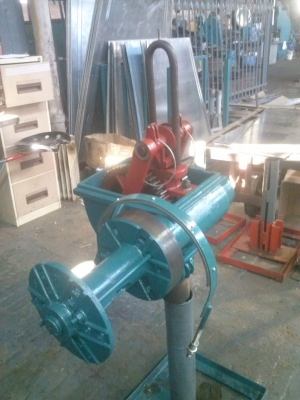

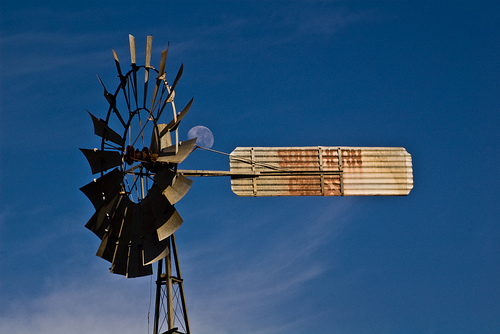

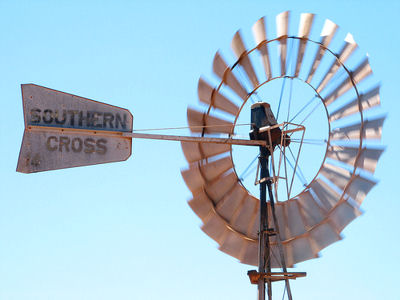

Southern Cross


Model Z


Improved Z Model


Sails, Braces & Spokes
(Aermotor inspired)

Climax Motor

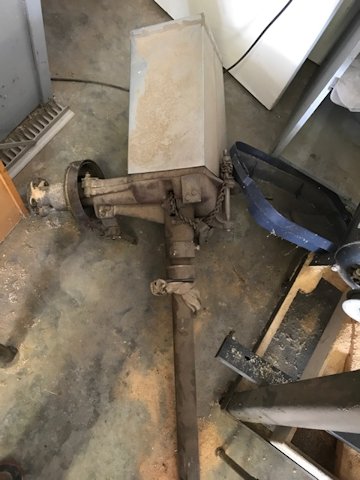

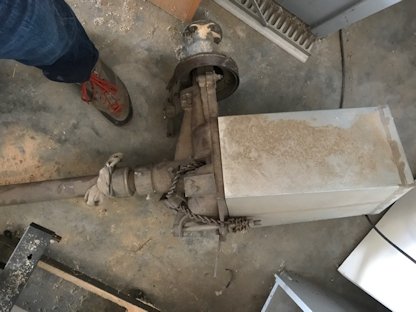

Stover / Samson

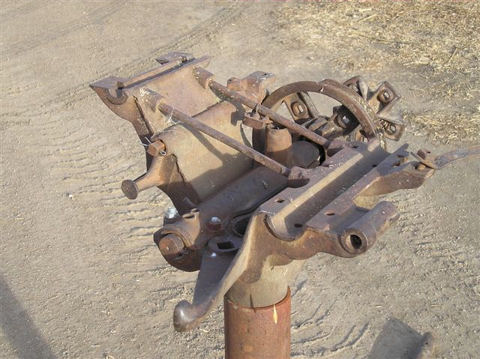

8ft Freeport Main Frame

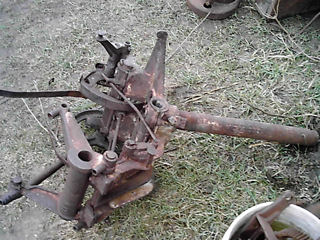

8ft Freeport Main Frame


8ft Freeport Main Frame

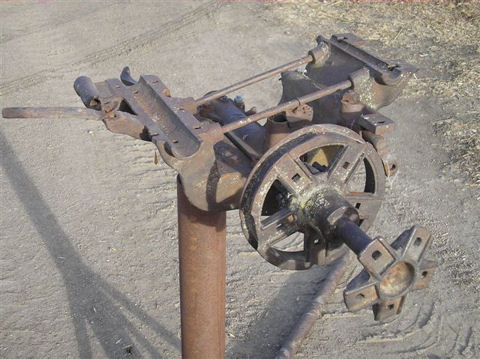

8ft Freeport

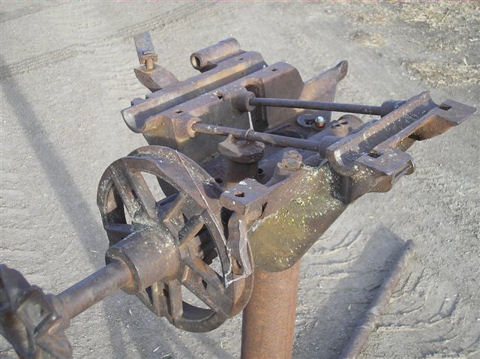

8ft Freeport Hub


8ft Freeport

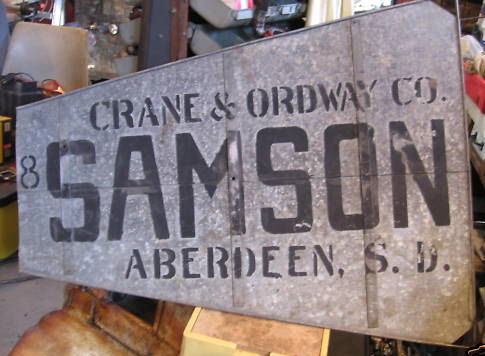

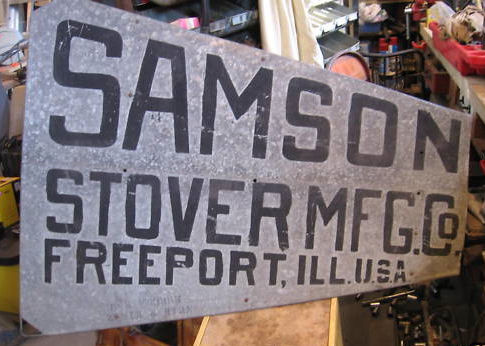

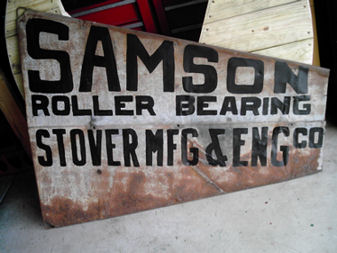

Samson Steel Vane


Samson Steel Tailbone Castings


8ft Samson Steel Head (early)


Samson Steel Logo


Samson Steel Logo

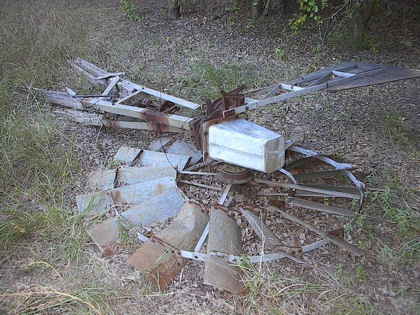

6ft Airflow w/ Champion Vane

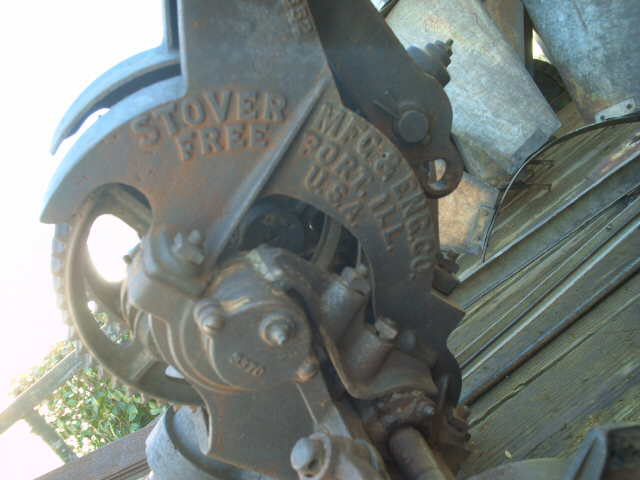

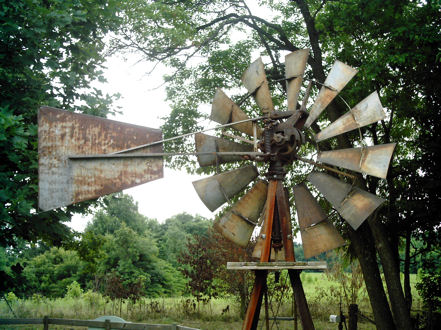

6ft Steel Head, Hyatt Version


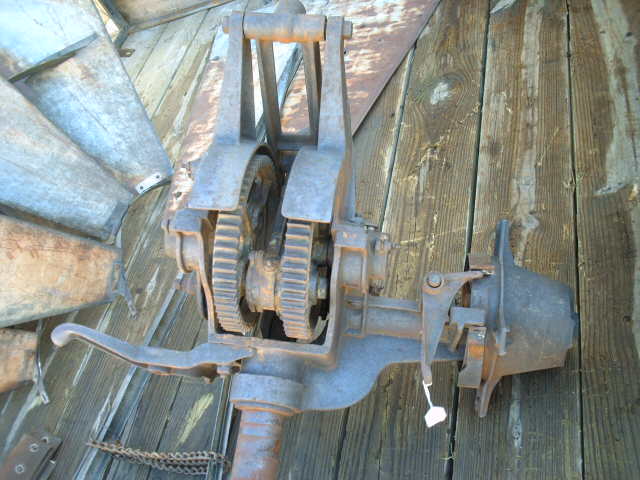

6ft Steel Open Gear, Hyatt Version


Steel Head, Hyatt Version


Stover Sail Braces (face)


Stover Sail Braces (back)


Steel Oil Wicks

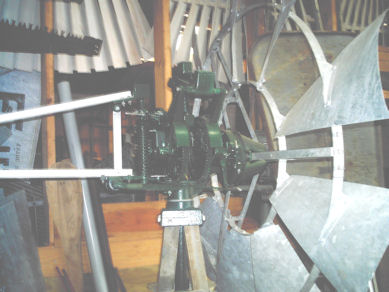

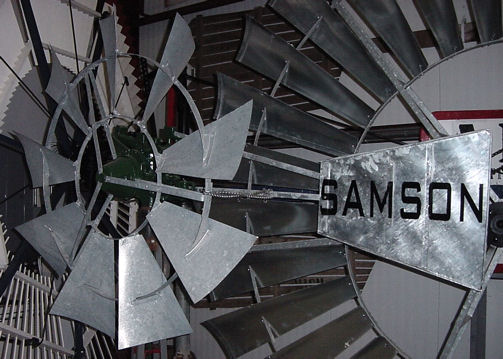

4.5ft Samson Steel


AirFlow Buffer & Linkage


8ft Steel Head, Hyatt Version Vane


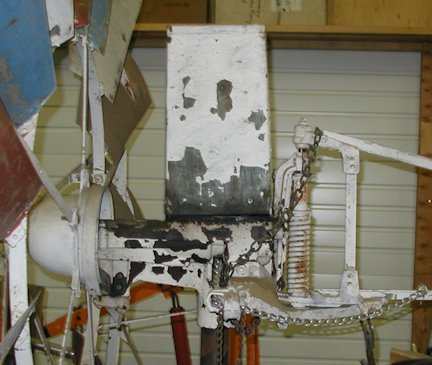

8ft Oil-Rite Model S Head


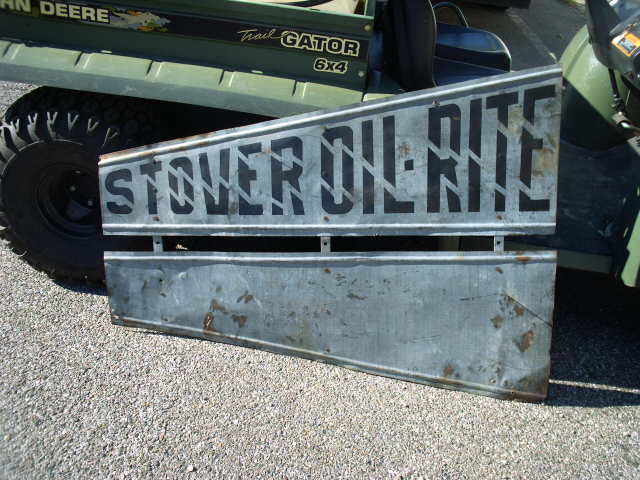

Model W Oil-Rite Vane


AirFlow Head & Bonnet


Air Flow Vane


Air Flow Sails


Air Flow Sail Brace


Model W Oil-Rite Vane Stem


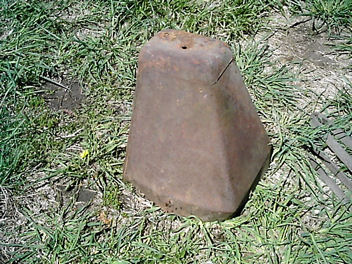

Model W Oil-Rite Bonnet


Model W Oil-Rite Frame & Hub


Oil-Rite M/S Vane

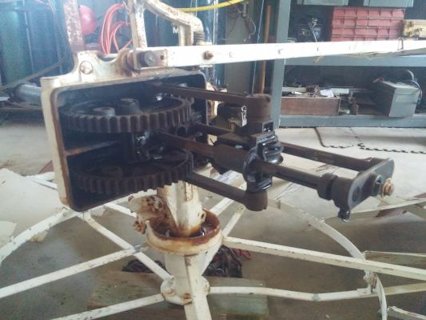

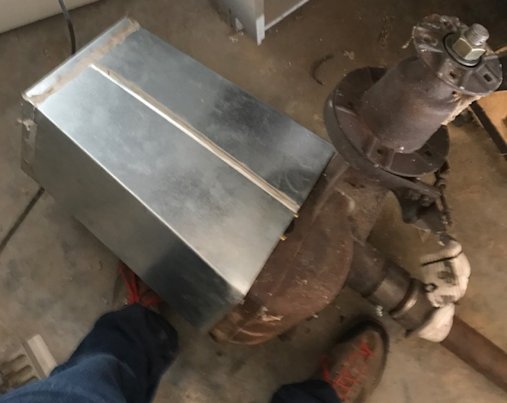

Oil-Rite Model M Head


Oil-Rite M Bonnet , Etc


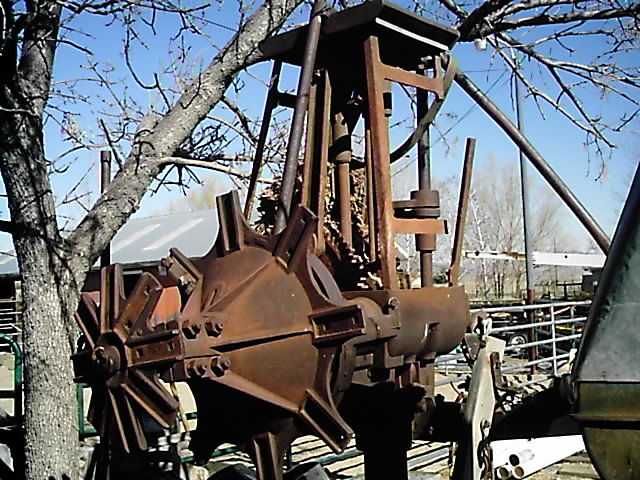

14ft Ranch Style S Head


Model M Spokes


Model M Hubs

Oil-Rite Model M Head

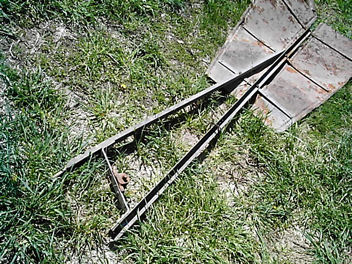

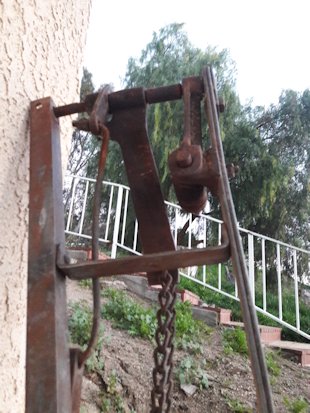

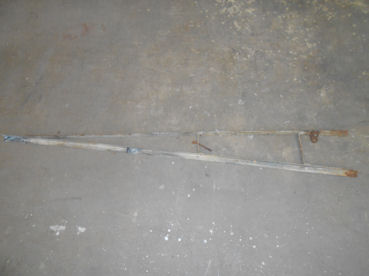

8ft Model M Stem

Oil-Rite Model M Head

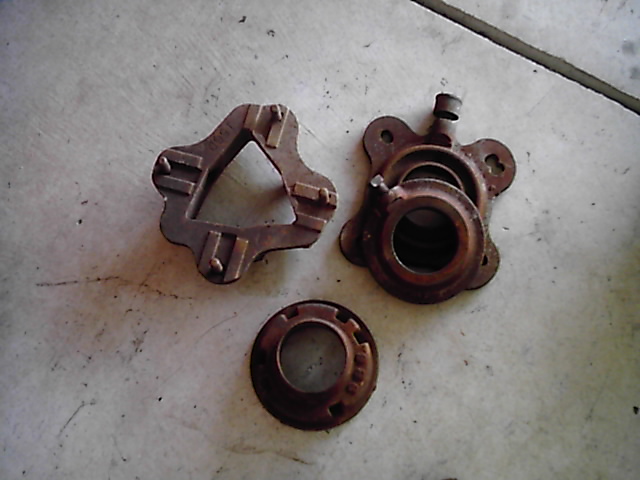

3 Post Tower Cap, Stay & Race


4.5ft Samson Steel


Early Solid Wheel

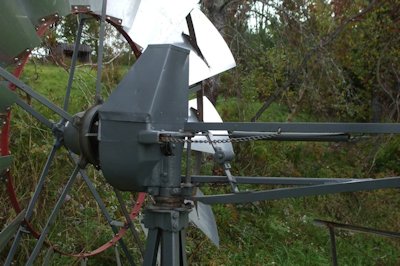

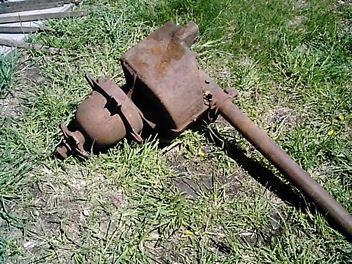

Model W Oil-Rite


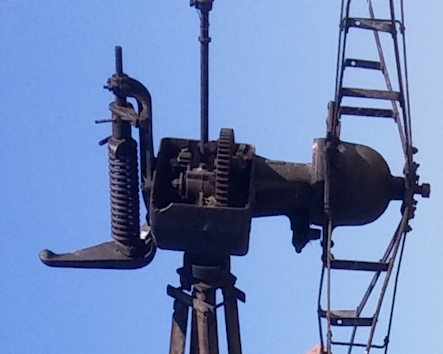

12ft Samson S Oil-Rite

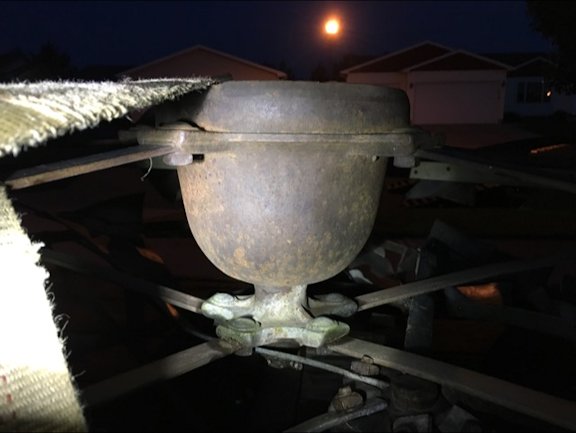

6ft Samson S Hub


8ft Samson S


8ft Samson S

Oil-Rite Model M Head

Oil-Rite Model M Head

Tip Top


Tip Top Loop Type


Tip Top Head, Loop Style


Tip Top Loop Style


Tip Top Motor Rocker Style


Tip Top Motor Rocker Style


12ft Rocker arm Tip Top


Tip Top Motor Channel Style


Tip Top Motors Rocker & Channel Styles


Tip Top Spokes


Tip Top Hub & Wheel Arm


Tip Top Vane


Tip Top Channel Style Vane stem

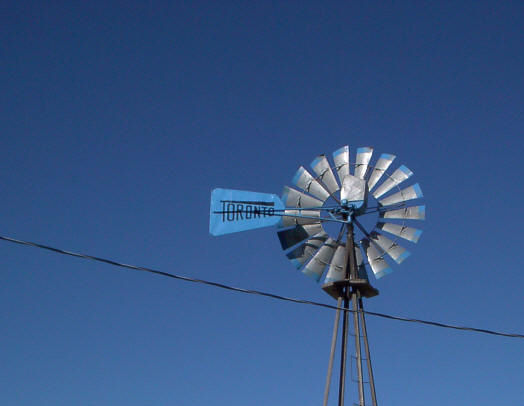

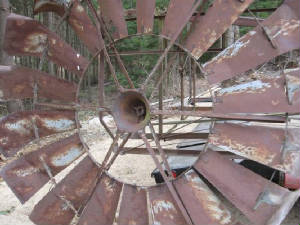

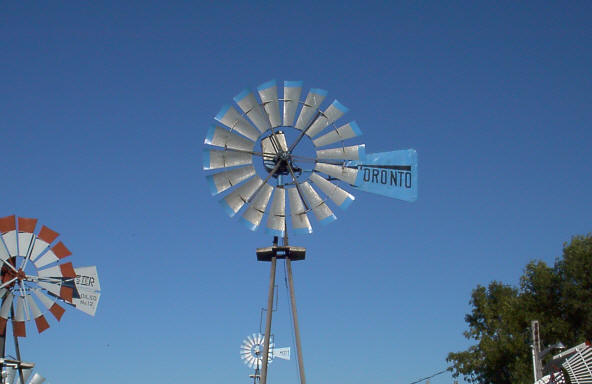

Toronto

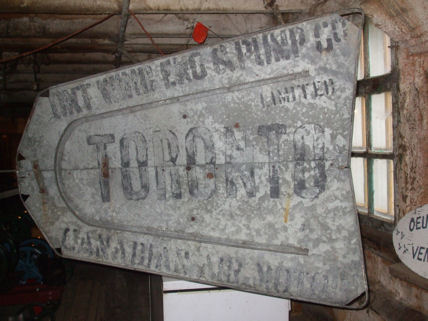

Open Gear Vane
(Bell Hub Aermotor)


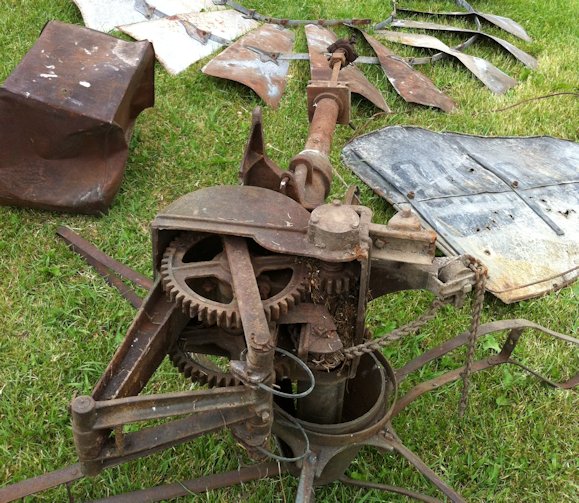

Open Gear Main Frame

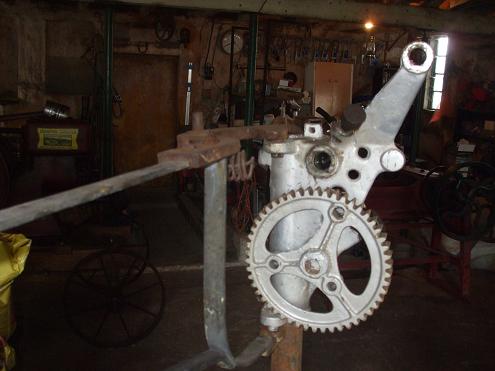

(Bell Hub Aermotor)


Open Gear Wheel & Hub
(Bell Hub Aermotor)


Self-Oiling Model


Self-Oiling Model

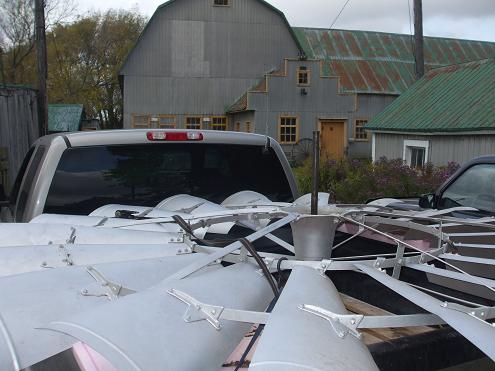

Bell Hub Wheel & Spokes

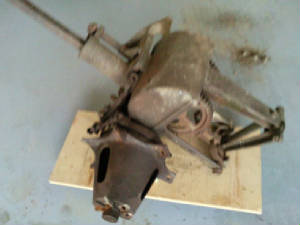

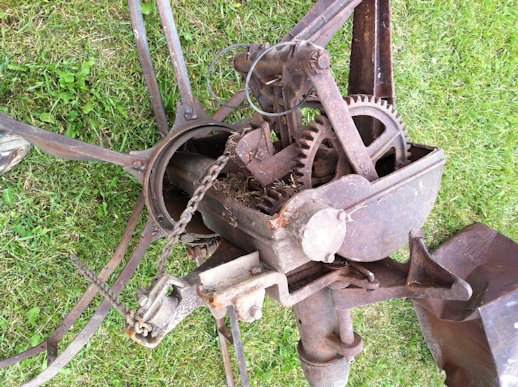

Toronto Self-Oiling Motor


Toronto Self-Oiling Motor


Toronto Self-Oiling Motor

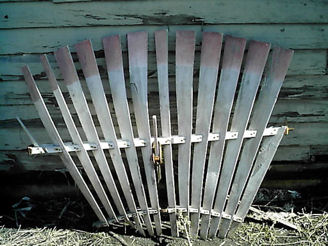

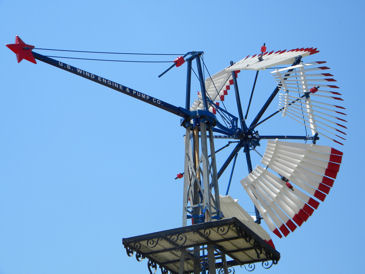

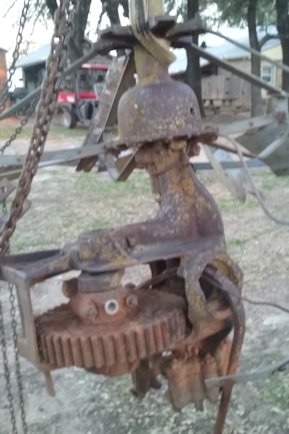

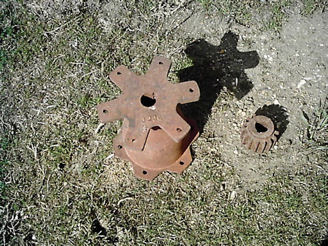

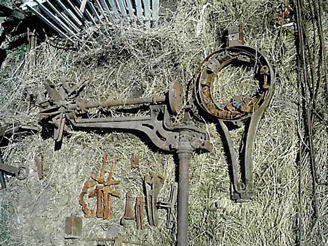

U. S. Wind Engine

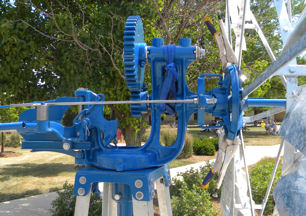

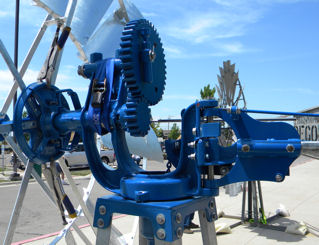

Comet Motor

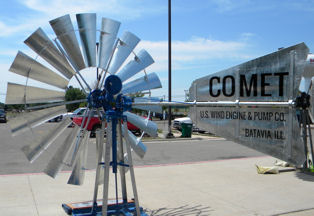

8ft Comet


Comet Motor


Model A Spider

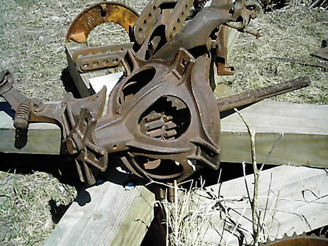

Model A Head


Model A Head


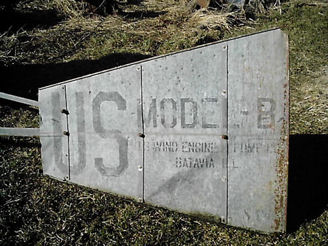

Model B Vane

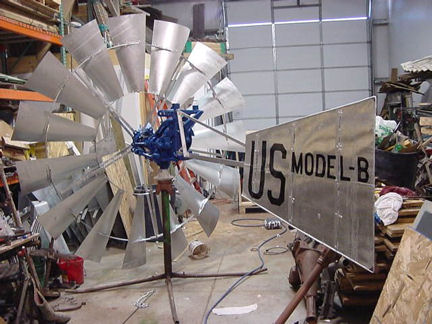

Model B


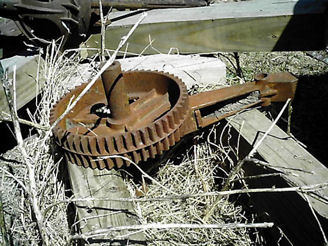

Model B Head


Model B Vane Pin, Etc


Model B Hub


Model B Step Gear

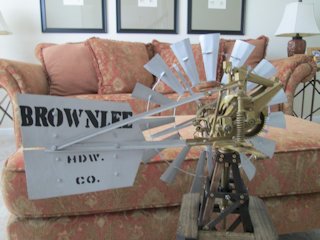

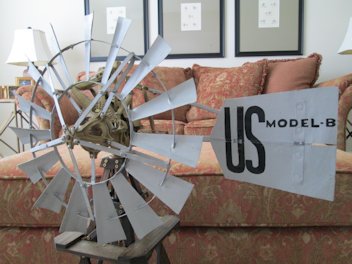

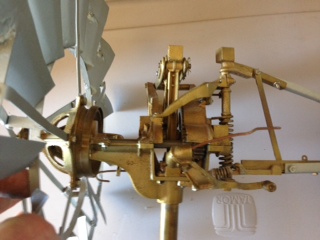

Model B Salesman Sample


Model B Salesman Sample


Model B Salesman Sample

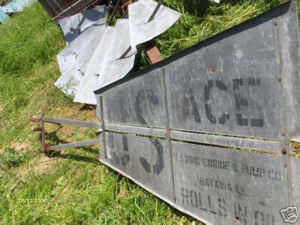

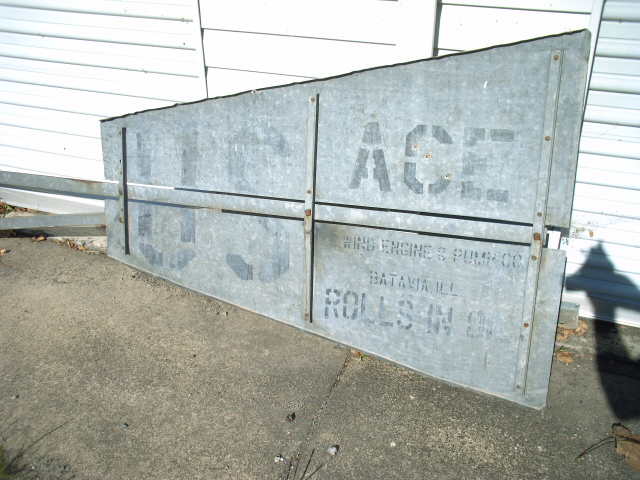

Model Ace Vane


Sails & Brace


Sail Brace

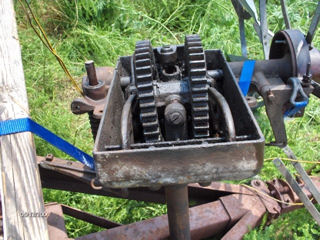

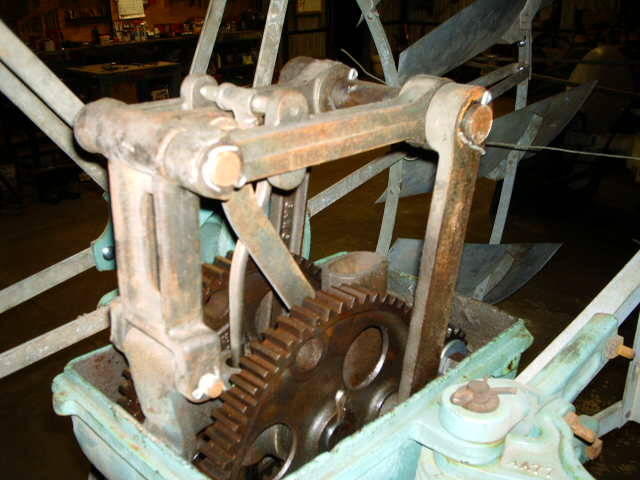

Model Ace Gear Assembly

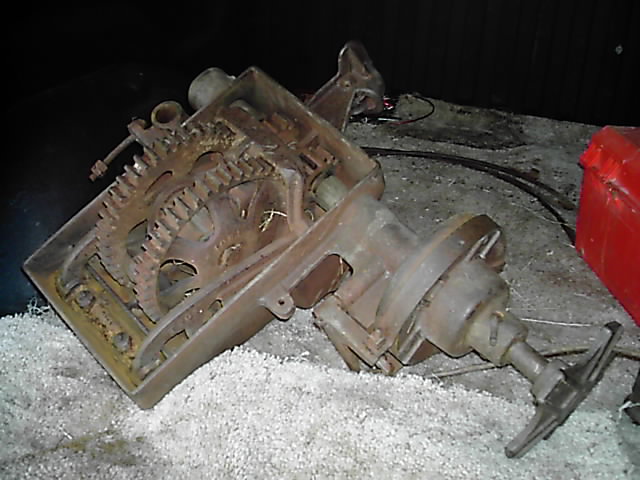

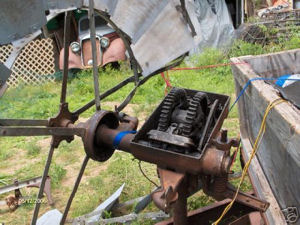

Model Ace Head


Model Ace Vane

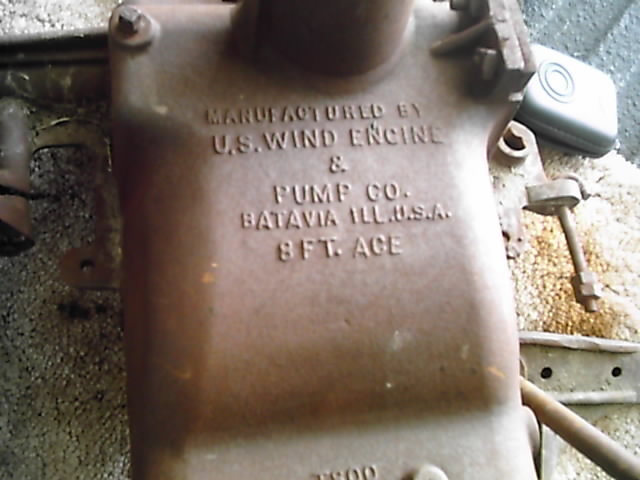

8ft Ace Head


8ft Ace Case Bottom

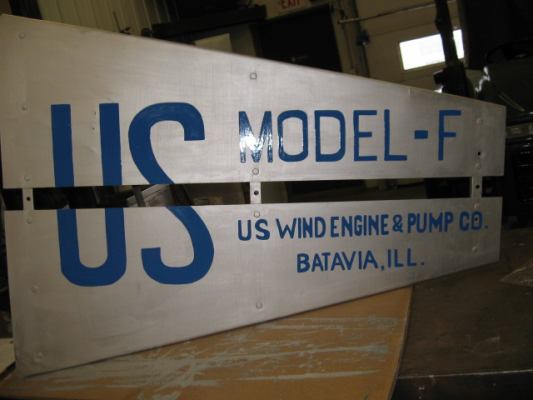

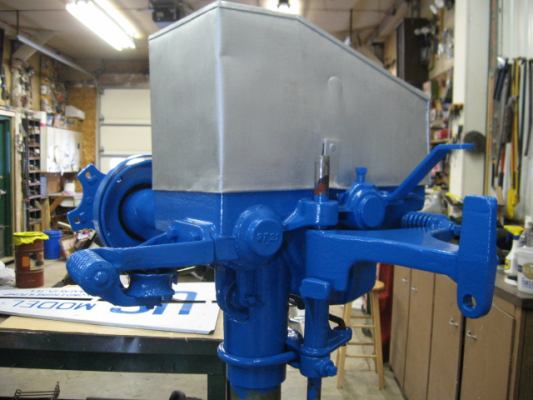

Model F Motor

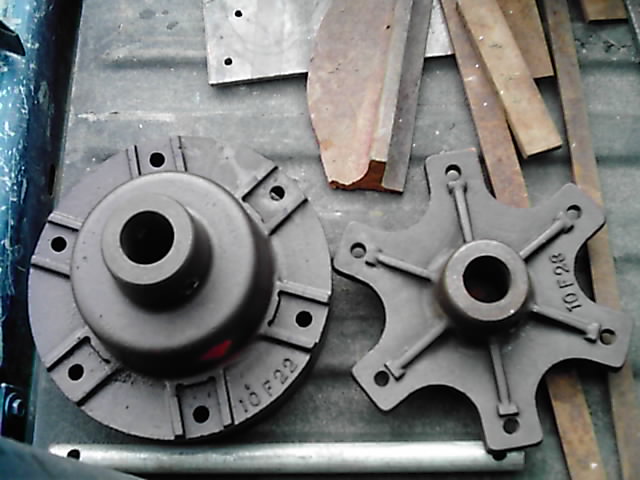

10ft Model F Hub & Spider

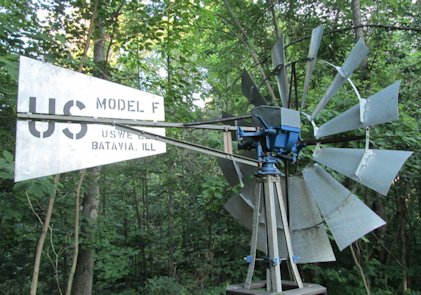

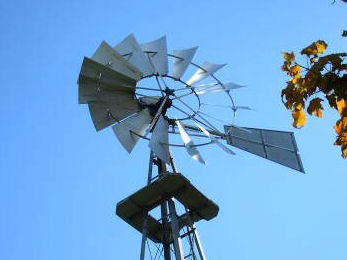

Model F


Model F


6ft Model F


6ft Model F


6ft Model F

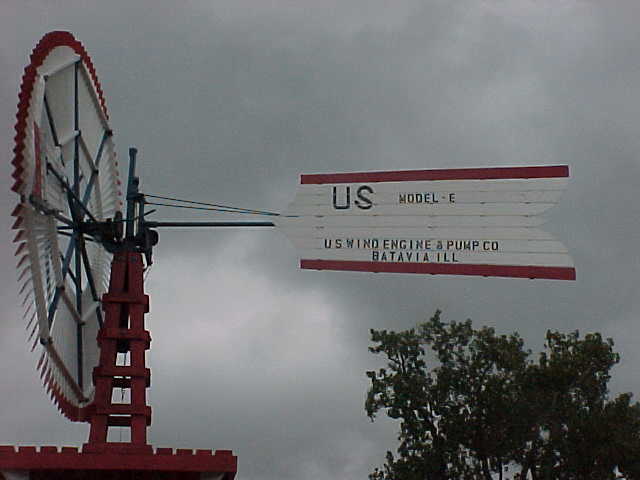

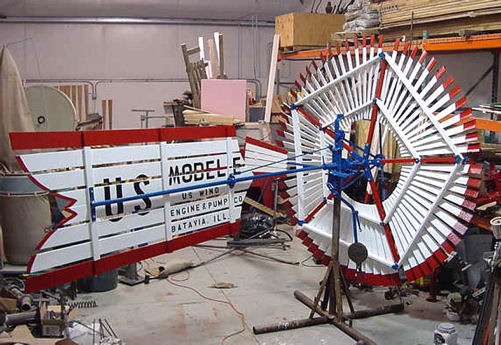

Model E


Model E Head


Model E


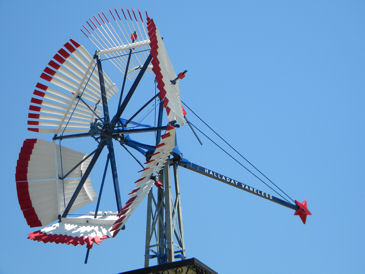

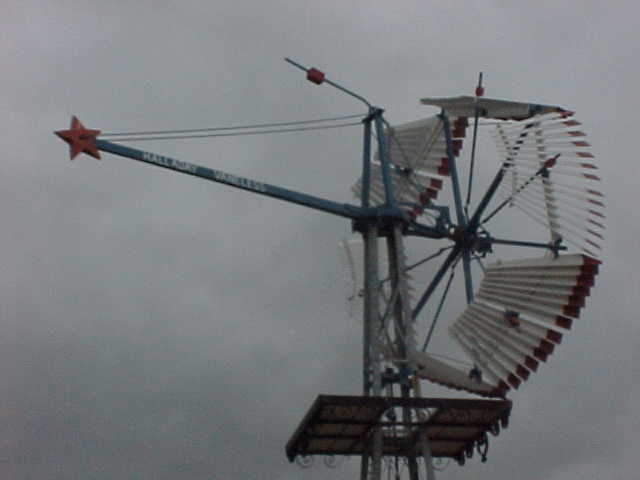

Vaneless Standard


Vaneless Standard Main Frame


Vaneless Standard Pull-Out


Vaneless Standard

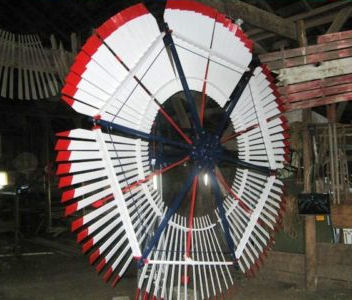

Vaneless Standard Wheel


10ft Vaneless Standard Wheel Section

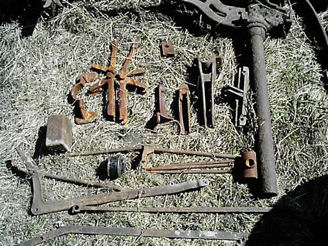

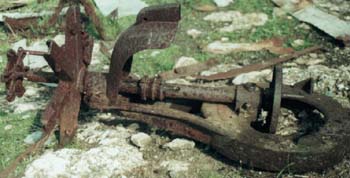

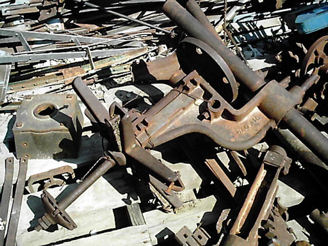

Disassembled Vaneless Standard


Disassembled Vaneless Standard

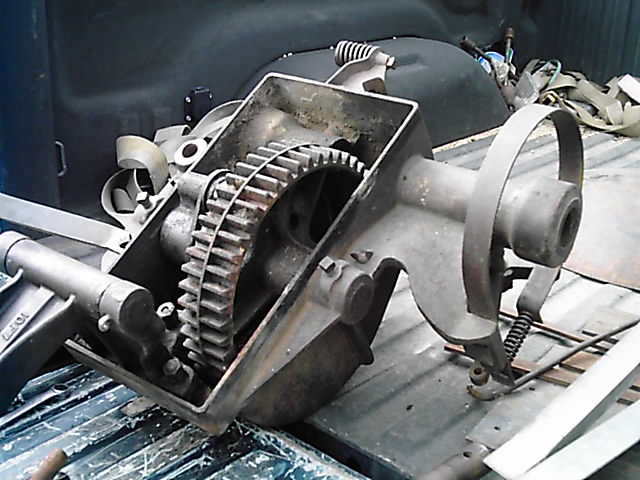

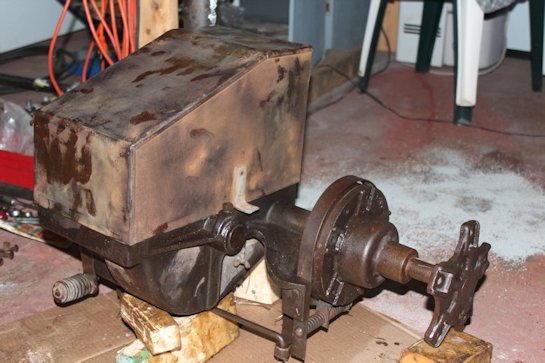

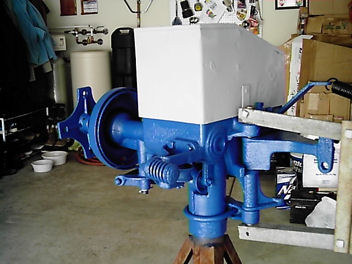

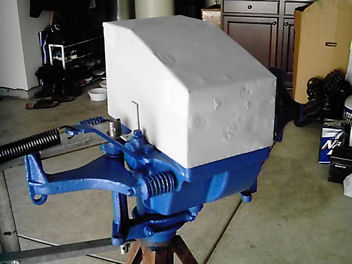

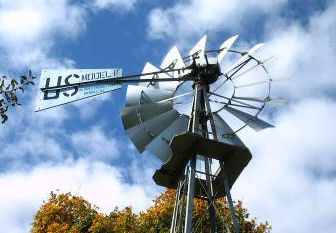

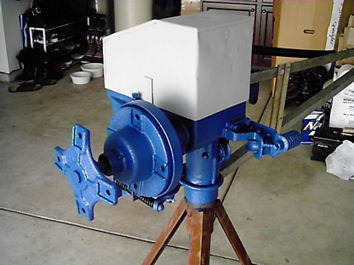

10ft U.S.W.E. Model D


Model A Hub & Pinion


6ft Model F Spokes

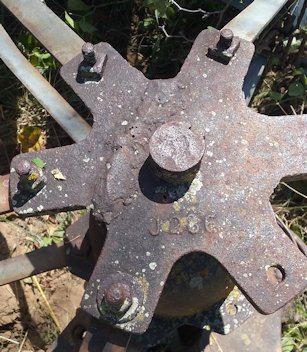

10ft Model E Hub Spider


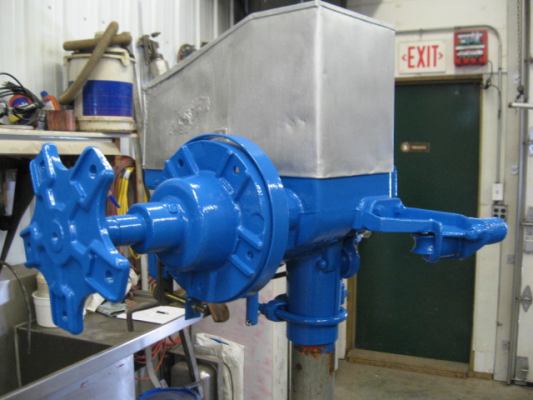

8ft Model F Motor


8ft Model F Vane


8ft Model F Motor

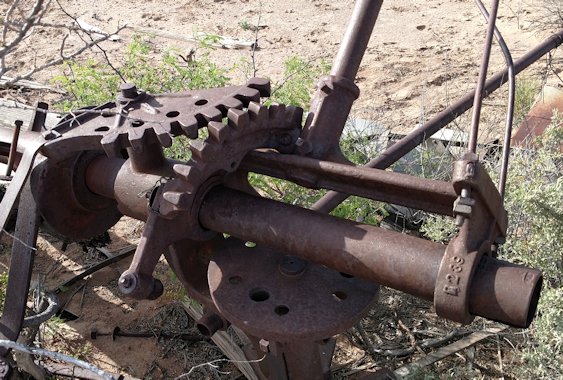

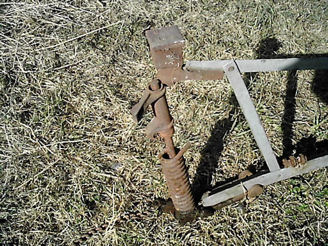

12ft Model E Vane Hinge


6ft Model F


8ft Model F Motor

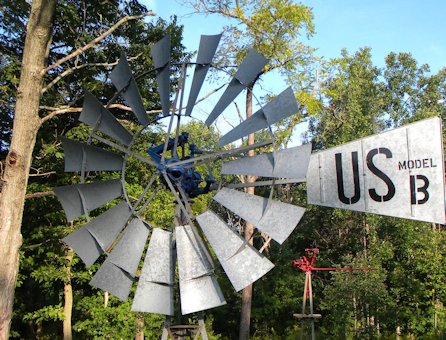

8ft Model B

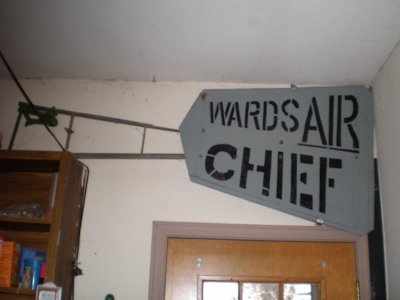

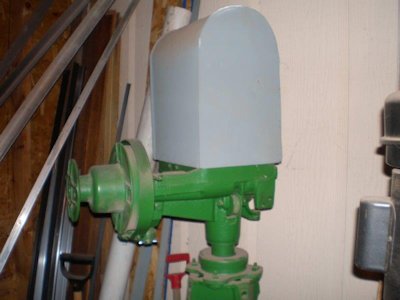

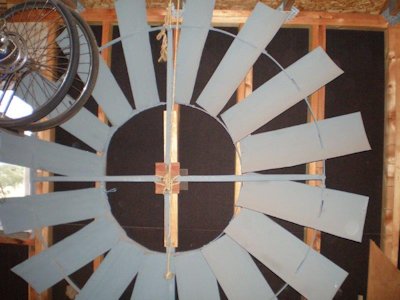

Wards Air Chief


6.5 ft Model


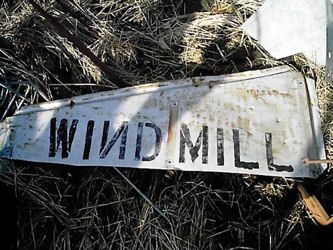

Vane


6.5 Model Wheel, Etc.
6.5 ft Wheel

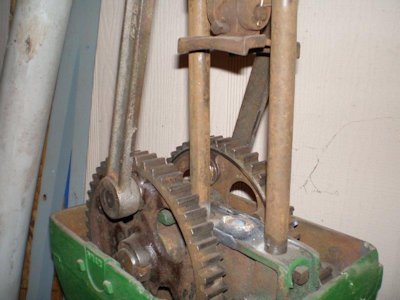

6.5 ft Motor
6.5 ft Model Vane/Stem

6.5 ft Motor

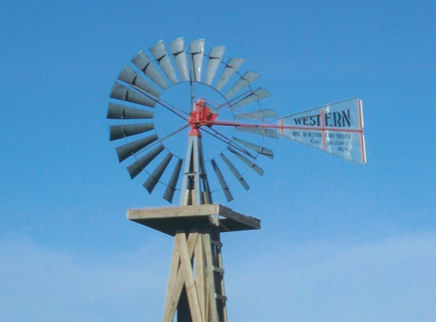

Western Roller

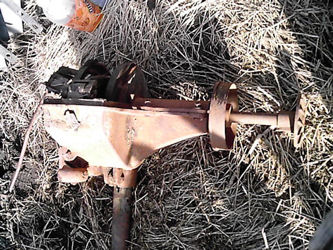

8ft Motor

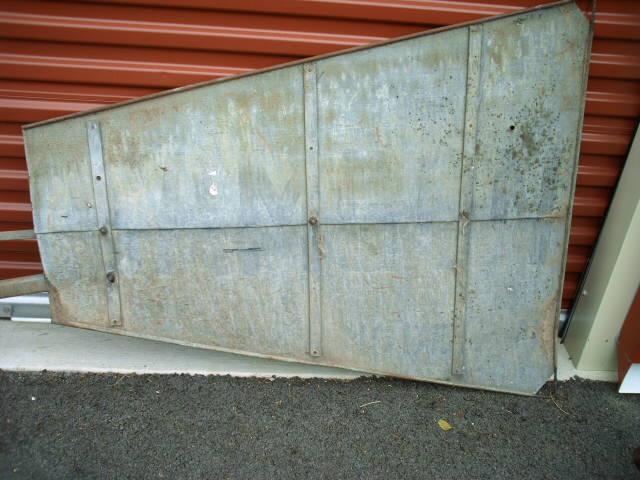

Vane Upper Half


Stem Hinge

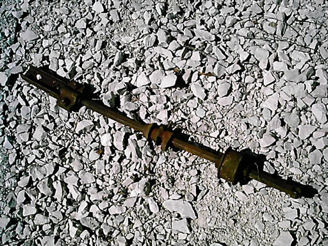

Eccentric Rollers & Main Shaft

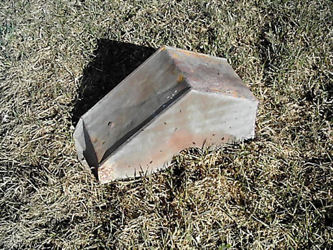

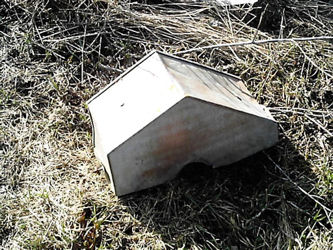

Bonnet


Bonnet


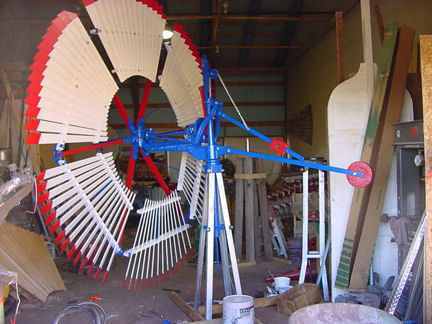

Restored Mill


.

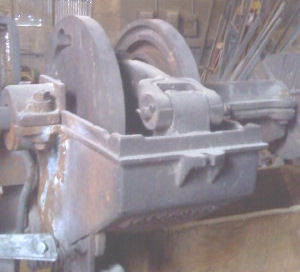

10ft Motor

.

Wind Master

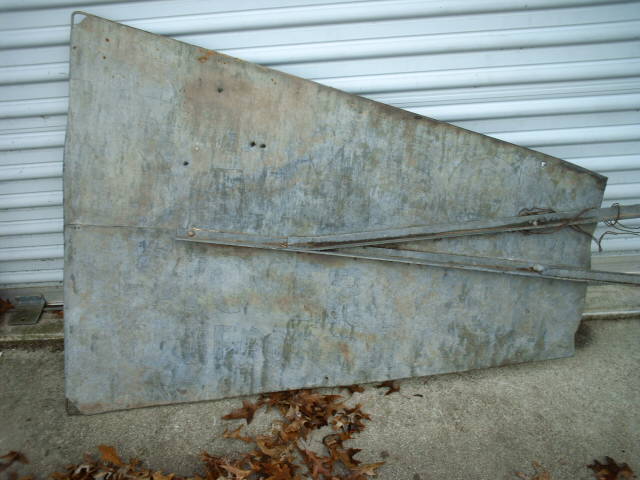

Wind Master Vane


Wind Master Head


Wheel & Spokes


Wind Master Head

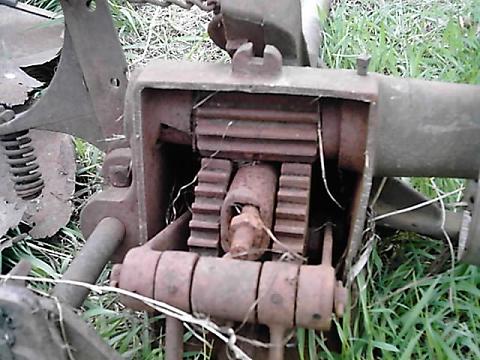

Unique Wind Master Gears


Wind Master Complete



Channel Iron Spoke


Wind Master Sail & Brace


8ft Windmaster (AKA Althouse-Wheeler Giant)


8ft Windmaster (AKA Althouse- Wheeler Giant)


8ft Windmaster (AKA Althouse-Wheeler Giant)

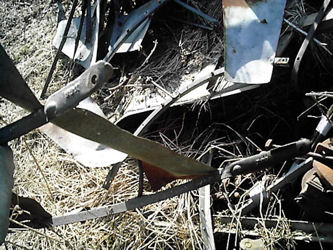

Whizz

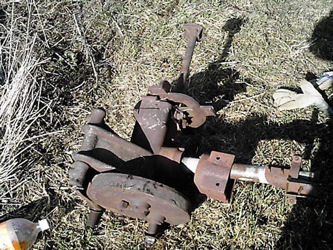

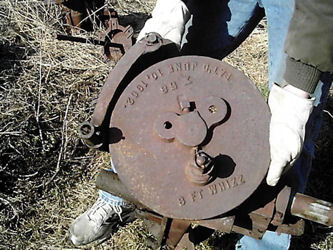

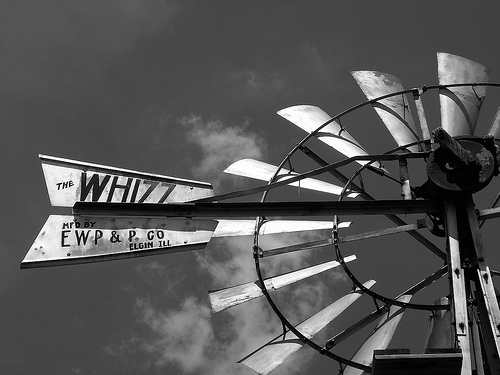

Elgin Whizz

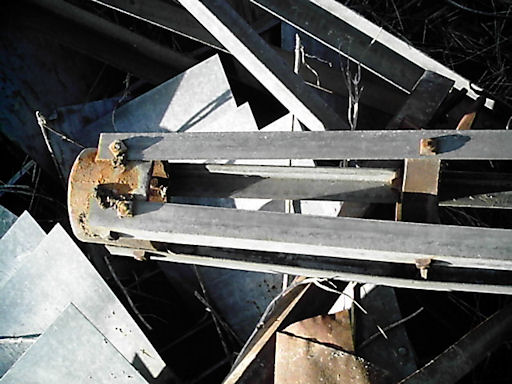

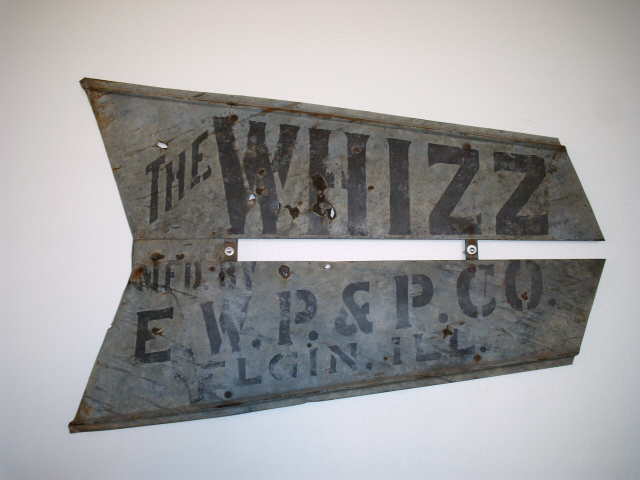

Vane

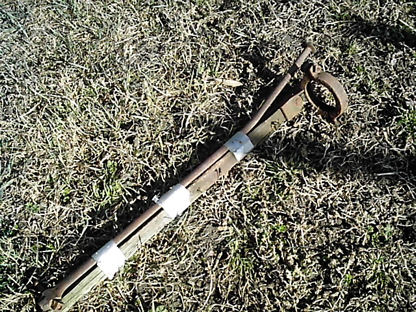

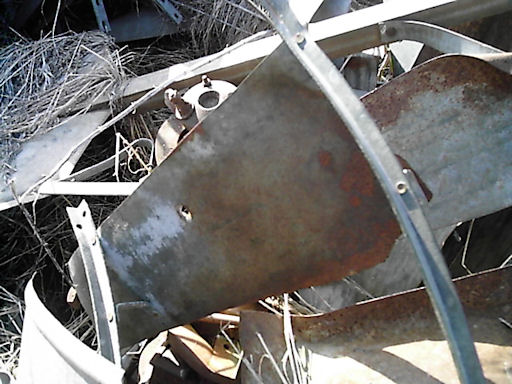

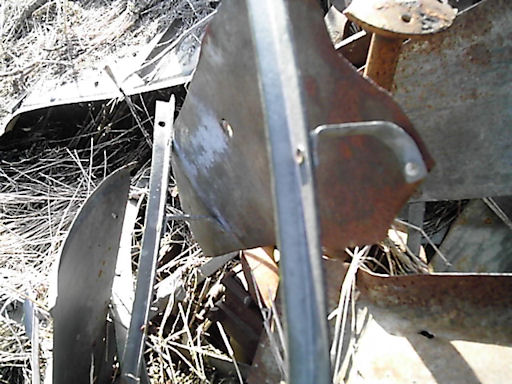

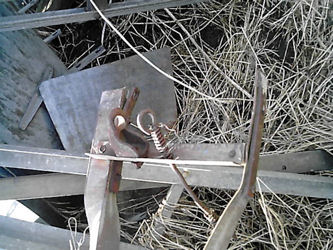

Unique Sail Brace Design


8ft Motor


Internal Gear


8ft Motor


Angle Iron Wheel Bands


Flat Strap Sail Braces


Cast Iron Band Joints


Tower Cap, Stub & Trueing Center

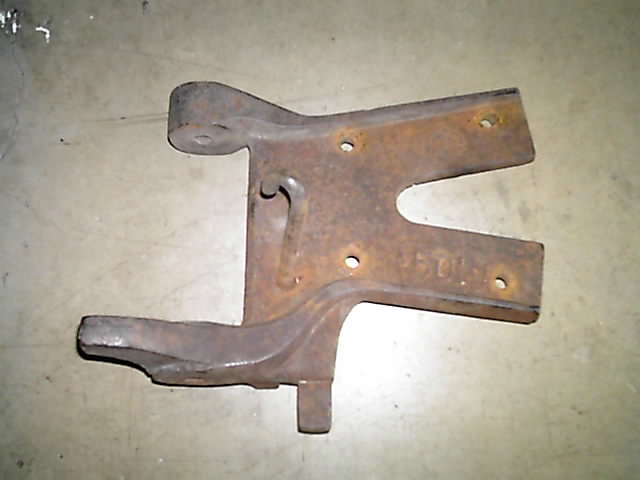

Tail Bone Mounts


Pull Out W/ Swivel

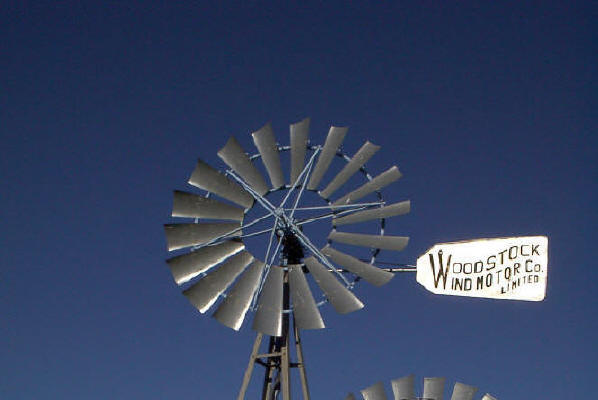

Woodstock


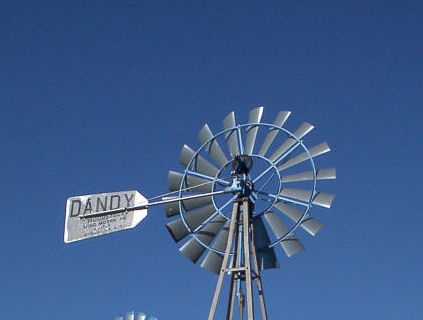

Dandy Open Gear


Dandy Open Gear

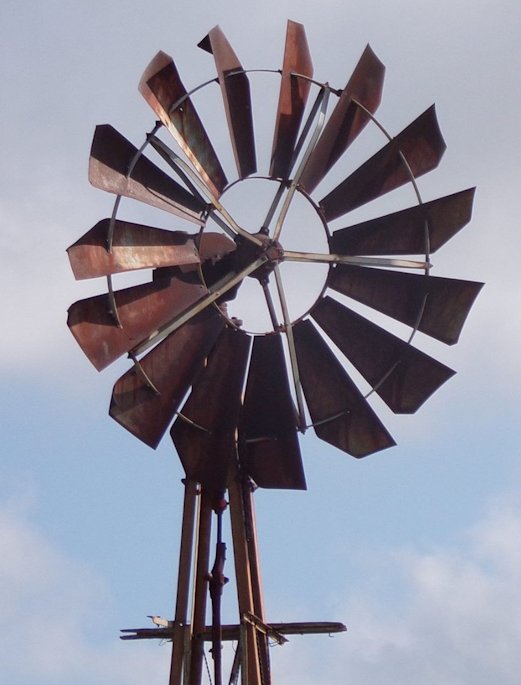

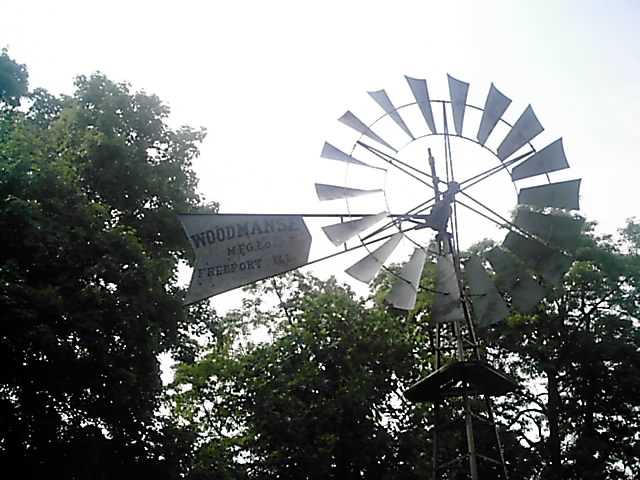

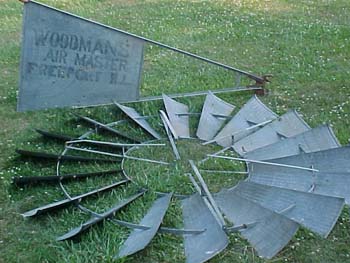

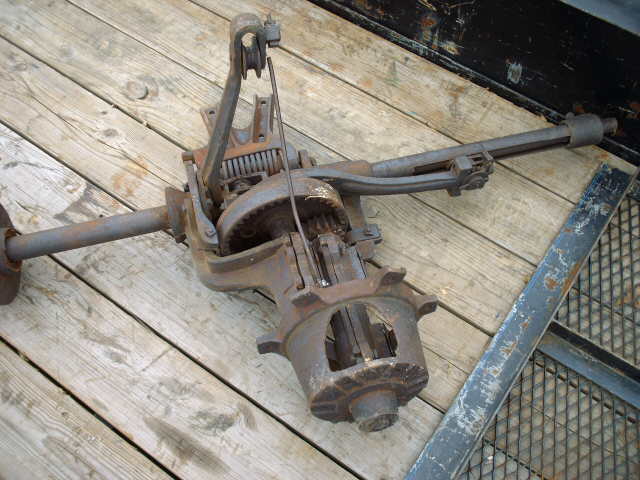

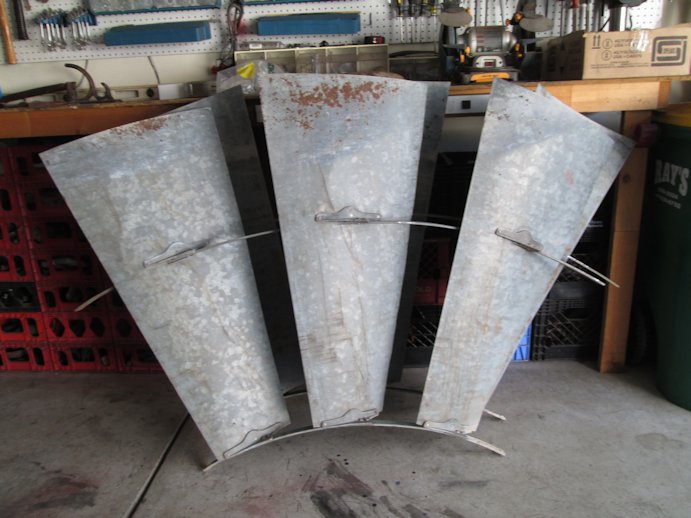

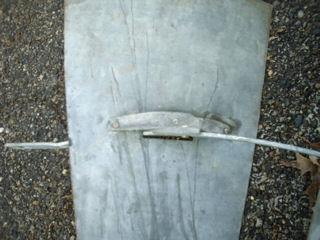

Woodmanse

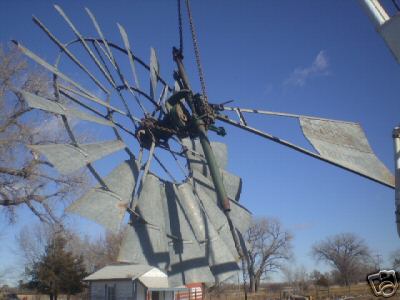

10ft Steel Direct Stroke

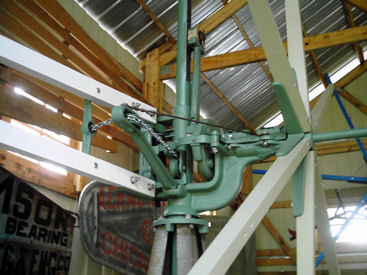

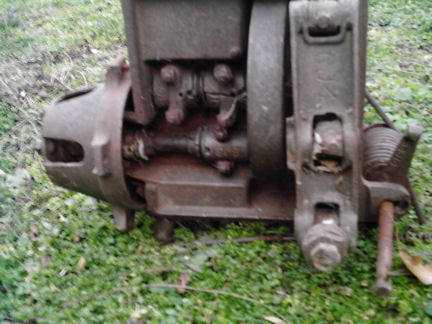

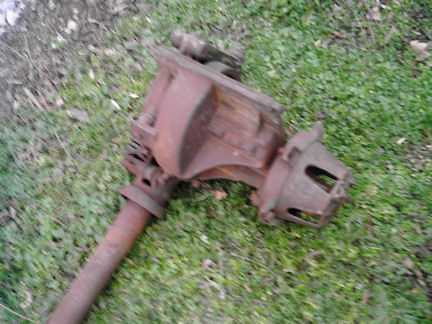

10ft Wood Direct Stroke Motor


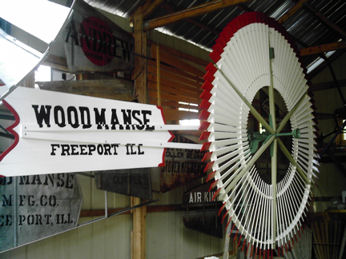

10ft Wood Direct Stroke

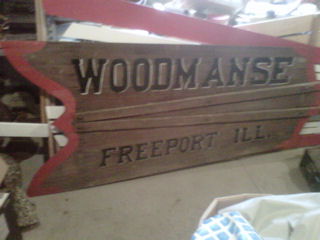

Steel Vane

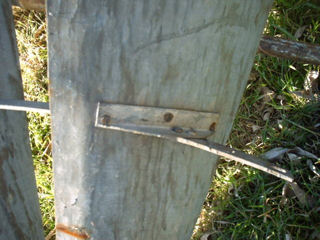

Sail Brace (early)


10ft Steel Direct Stroke Head


Oil-Bath Vane


Sail Brace (mid)


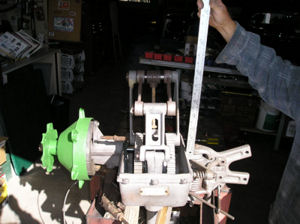

8ft E Head


Early Direct Stroke Cast Sail Braces

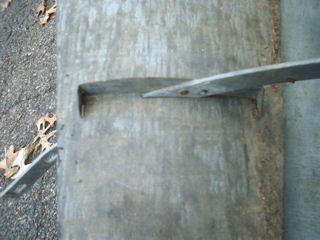

Sail Brace (late)


8ft G Head


Airmaster Head


Steel Back Geared Head

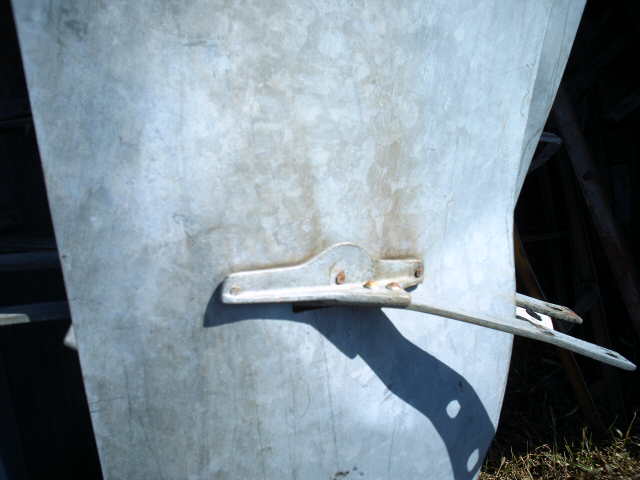

Early 10ft/12ft/Mogul Sail Brace

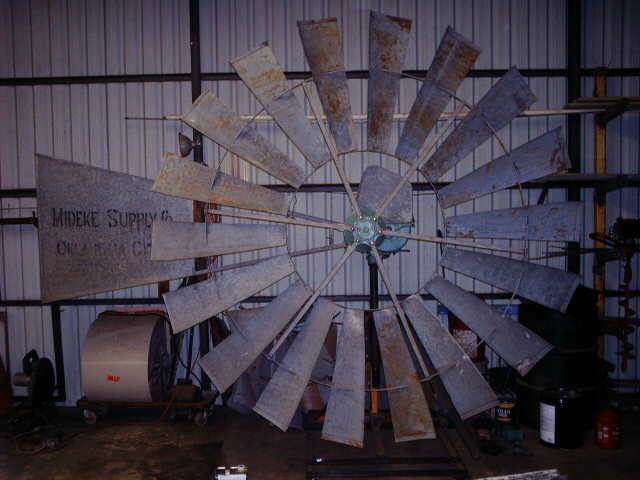

8ft AirMaster complete


AirMaster Gears, etc


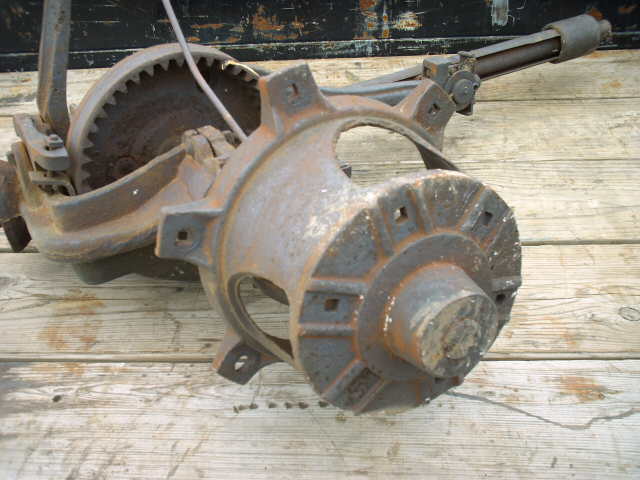

8ft Steel Hub

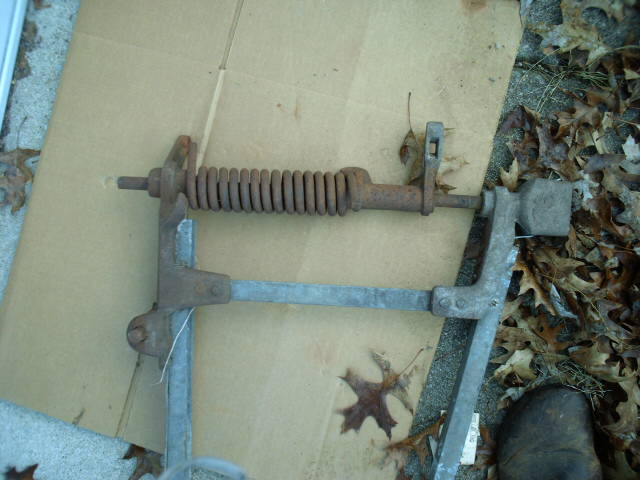

8ft Model G Brake Linkage


8ft Back-Geared Steel Model


Oil-Bath & Steel Model Tailbone Casting


Airmaster Tower Cap & Race


6ft AirMaster


Airmaster Wheel & Vane

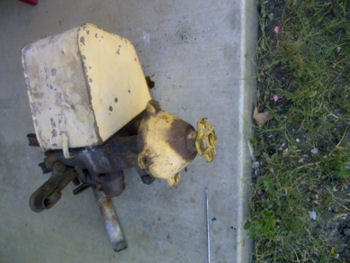

6ft Airmaster Head w/ Bonnet


6ft Airmaster Head

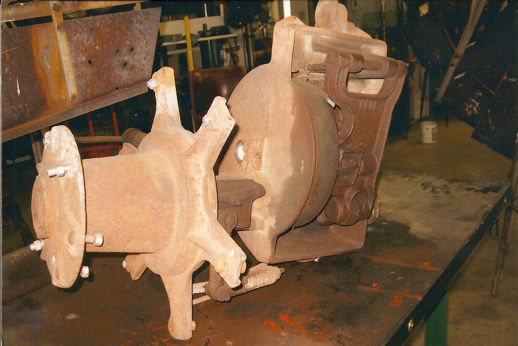

10ft GB Head


Spokes


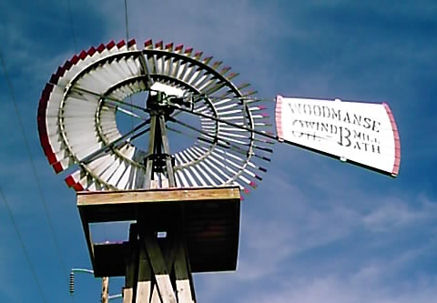

Model G Wood


Vane for Direct Stroke Wood Wheel Version

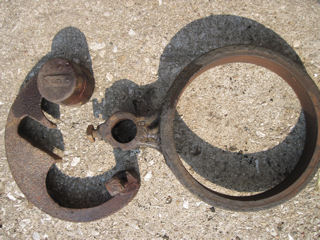

Model G Brake & Eccenctric

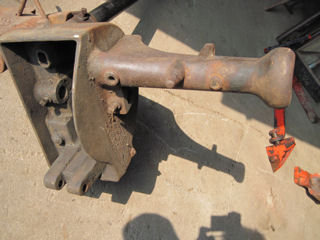

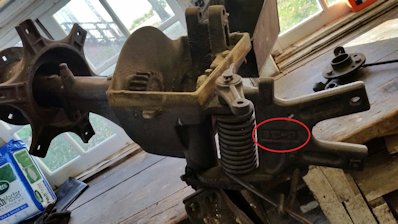

Model G Main Frame


Model G Main Frame

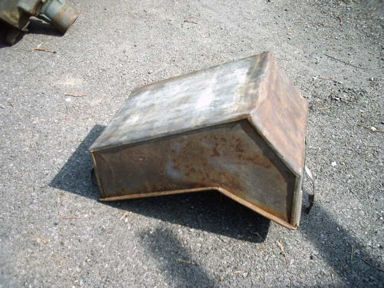

Model E Bonnet

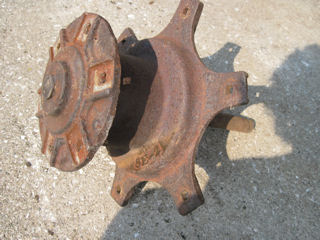

Model E & G Hub

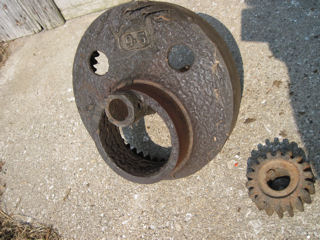

Model G & GB Pinion & Inside Gear


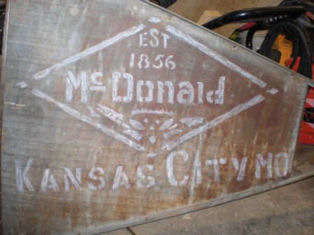

A. Y. McDonald Oil Bath Variant Vane


Model J Motor


Model J Motor

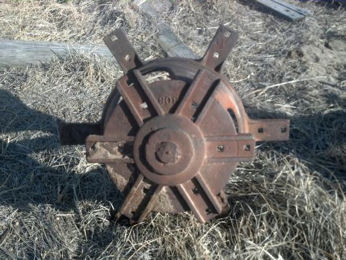

12ft Mogul Hub


AirMaster & Model 45 Tower Cap


AirMaster & Model 45 Pull-Out Swivel

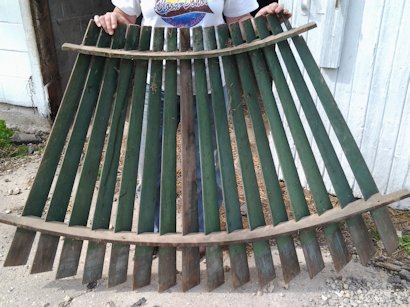

12ft Wood Wheel Section


12ft Open Gear Wheel Section


6.5ft Model J

XRAY


XRAY Head


XRAY Main Frame


XRAY Spiders & Spokes


XRAY Vane

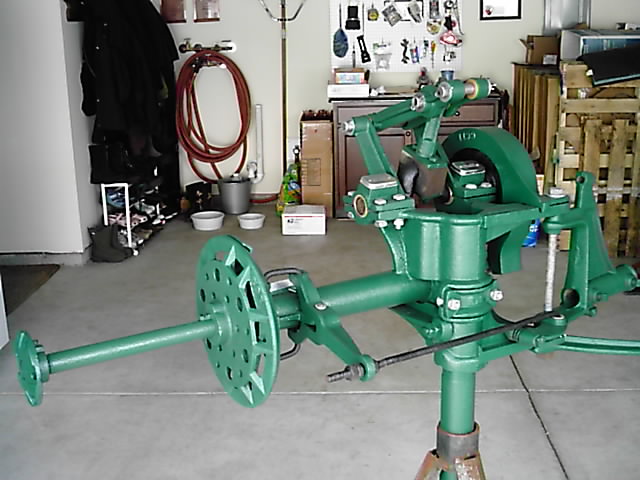

Restored Mill


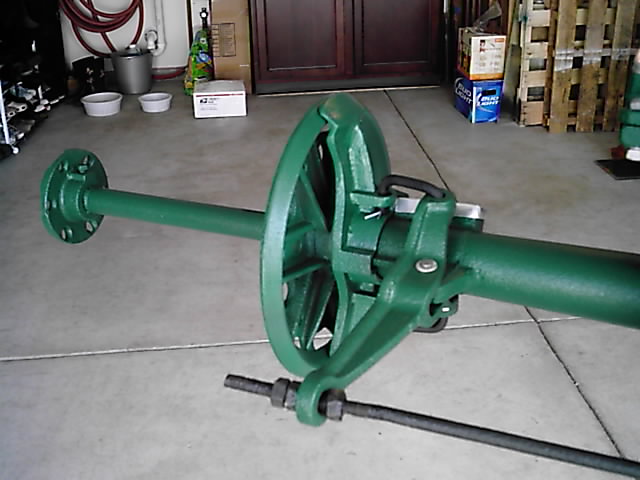

XRAY Braking System

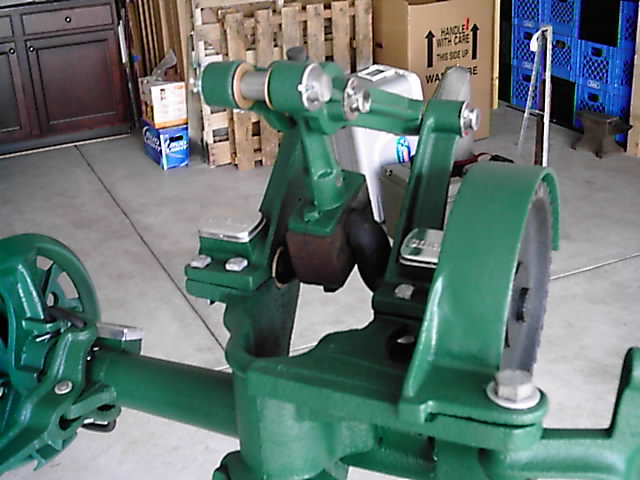

Pitman, Rocker & Crank Shaft

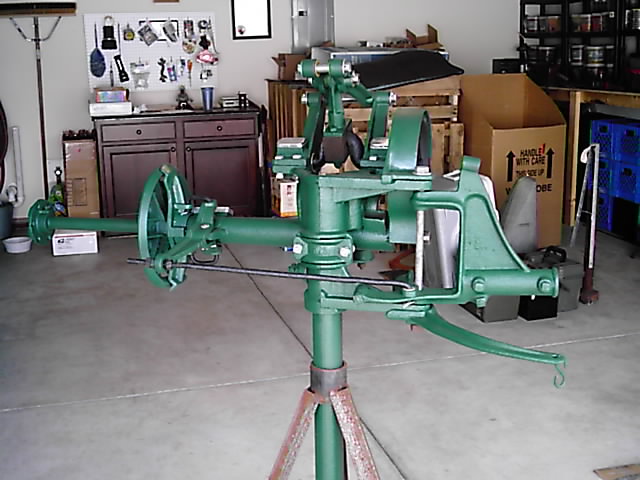

Profile with Vane Hinge

.

Yale / Plattner-Yale


Oil Bath Model


Sectional Wheel Model


Fixed Wheel Model


Yale #6 Planetary Gear Model


Yale #6 Vane Hinge

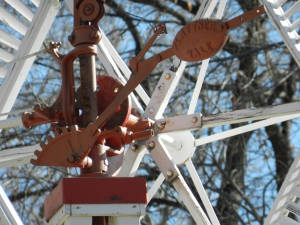

Plattner-Yale # 3 Motor
