Tower Identification A thru Z


Additional pictures were added to this page on 9/23/17.

The identity of a tower or a particular tower accessory can sometimes be a help in identifying a particular windmill. However, more often than not, given the extended life of a steel tower, they are not indicative of a mills identity. As an old windmill wore out farmers were not worried about matching a mill and tower. In fact often a tower became a mish-mash of components salvaged here and there over the years.  Farmers were resourceful then as they are now and had little pride in keeping an aging derick useful. None the less towers have heritage and pedigrees just like the mills they held erect.

Below we share some photos that may help you to determine where your tower originated. These are provided as educational assistance.

All pictures are protected by copyright laws and may not be used without the written permission of Windmill-Part.com or the original source.

Tower Accessories


Aermotor Style Pull-Out Lever


Dempster Pump Pole Guide


Challenge Pull-Out Winch


Stover Pull-Out Winch


Dempster Pull-Out Lever


Fairbury Pump Pole Guides


Aermotor Pump Pole Guides


Flint & Walling Pull-Out Winch


F.E.Meyers Regulator


Monitor Pull-Out Winch


Baker Regulator


Dempster Pump Pole Guides

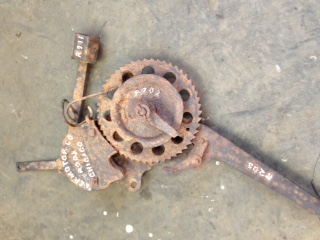

Aermotor Regulator


Stover Pump Pole Guide


Stover Regulator


Early Dempster Pull-Out Winch


Dempster Wood Girt Mounts


Pump Pole Splices


Challenge Pump Pole Guides


Flint & Walling Regulator


Woodmanse Pull-Out Winch


Fairbanks-Morse Pull-Out Winch


Dempster Pull-Out Lever Mount


Challenge / Dandy Pull-Out Lever Mount


Early Stover Regulator


USWE Pull-Out Winch


Aermotor Pull-Out Lever Mount


1927 Challenge
Triple Pump Pole Guide


Early Cast Iron Pump Pole Guide


Acme Regulator


Tower Punch


Baker Monitor Pull-In Lever


Eccentric Washers For Tightening Wire Cross Braces


Pumping Triangles

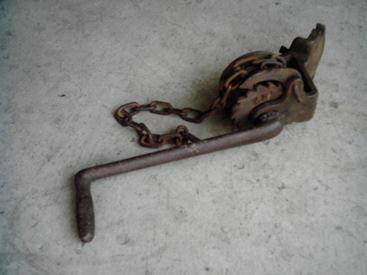

Perkins Pull-Out Winch


Worm Gear Winch



Aermotor Regulator

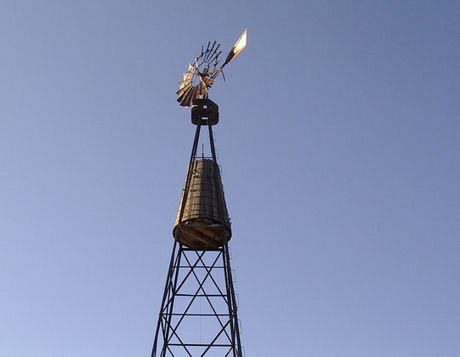

Aermotor Towers


1893-95 Tower Step


1893-95 Tower Step


Early Peg Step On 90 Degree Rounded Corner Angle Iron


Early Peg Steps With Angle Iron Cross Braces On Rounded Corner 90 Degree Posts


Suburban Tower Rig


Tilting Tower from the 1890's


Suburban Tower Rig


Suburban Tower Rig


Traditional 4 Post Tower With Loop Steps used 1899 onward

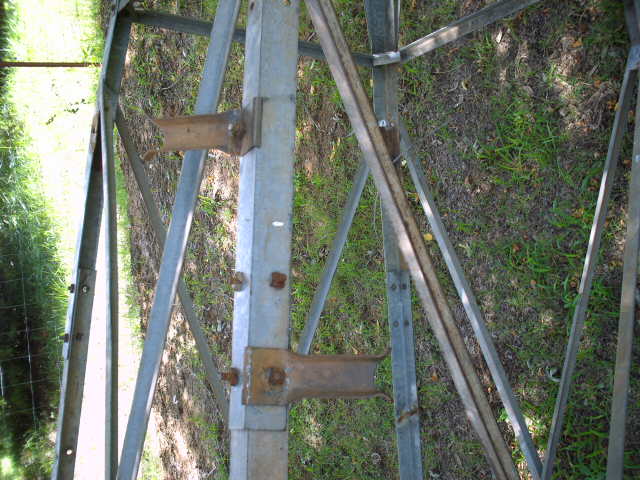

Early Tower Step Used On 1895-96 Towers


Early 3 Post With Button End Upper Cross Braces and Angle Iron Lower Cross Braces

.


Bilby Style 3 Post Tower

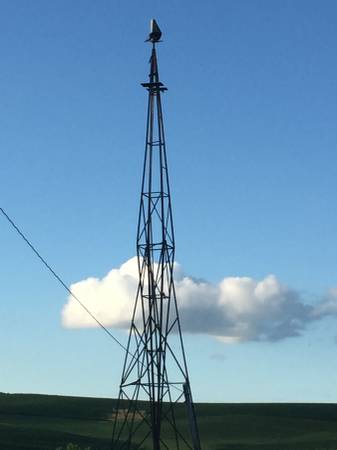

Tilting Tower


Early Button End Cross Braces And Slotted Girts

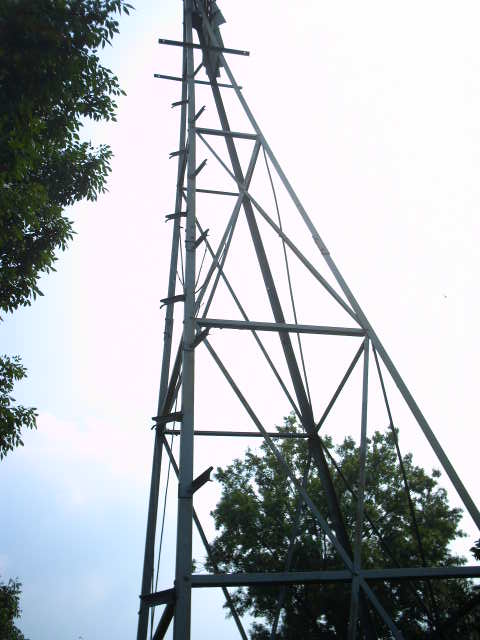

Appleton-Goodhue Towers


Cast Step


Rod Cross Brace w/ Twisted Loop End

Axtell Towers


Rod Ladder Rung


Rod Cross Braces with Cast Clamp

Baker Towers


Angle Iron Cross Lower Braces With Flat Strap Upper Cross Braces


Folded Sheet Metal Ladder Rung Incorporated In Outer Post


Unusual Right Hand Ladder


3 Post With 90 Degree Outer Posts With Bent Girt Ends


Early 4 Post With Outside Mount Girts And Corner Post Ladder Steps


Early Corner Post Ladder Steps

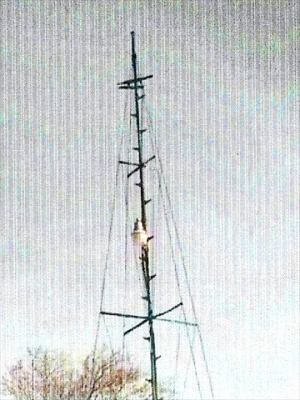

Early Baker Wire Tower

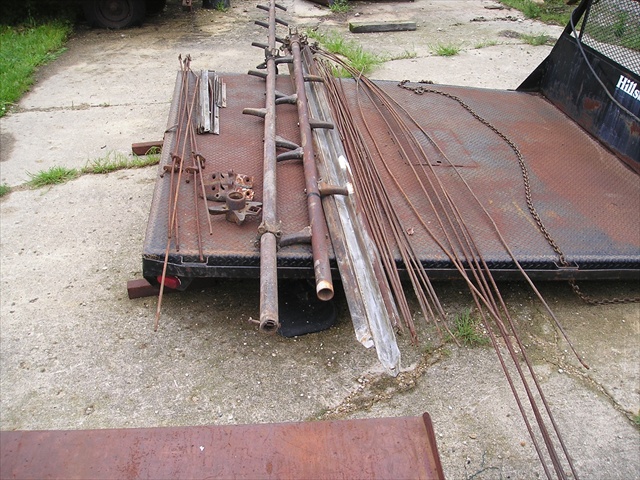

Parts of Early Baker Wire Tower



Early 4 Post With Corner Post Ladder Steps

Beatty


27ft w/ Rod & Angle Iron Cross Braces


Corner Mounted Ladder & Angle Iron Bottom Cross Braces

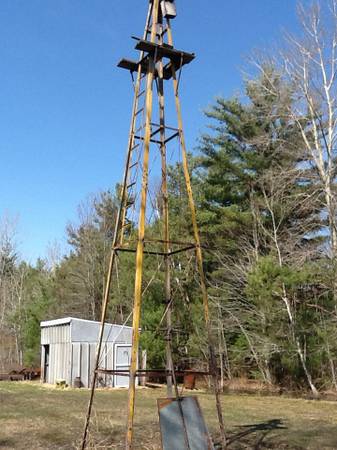

Butler Towers

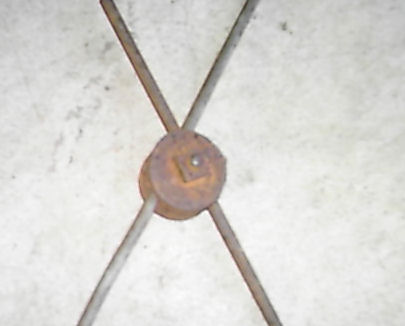

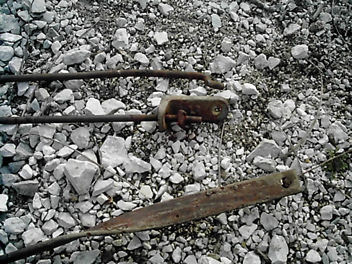

Cross Brace Clamp

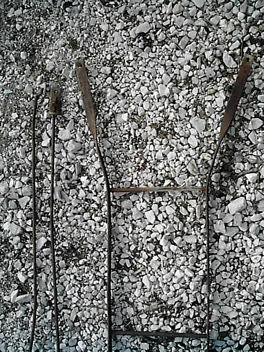

Flat Strap & Rod Ladder


Cross Brace Rod & Cast "L" Anchor

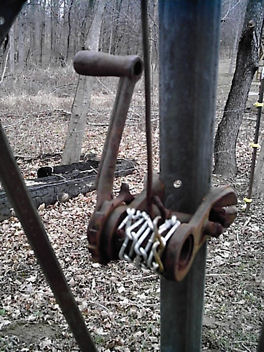

Pull-Out Winch



30ft Tower

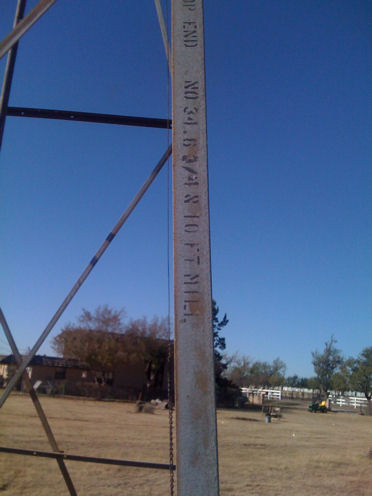

Challenge, Dandy Towers


Ladder Of Angle Iron And Folded Sheet Metal


1930's Version Tower


Flat Strap Cross Braces


Flat Strap Cross Braces w/ Strap Tensioners



Original Dandy Tower, Steps, Cross Braces

Currie Towers


Outside Mount Girts With Ball & Threaded Rod Cross Braces


Cast Step


Dempster Towers


Early Flat Strap Ladder w/ Angle Iron Rungs
.


Early Style With 20ft Upper Posts And Wire Braces With Brace Clamps


Ecentric Washers Used to Tighten Wire Cross Braces

Eli Towers


Late Style With Angle Iron Ladder


Unique Girt And Braided Wire Cross Braces

.


Early Ladder With Channel Iron Rung

Fairbanks-Morse Towers


Rod Cross Braces With One End Looped And One End Threaded For U Clamps
.

Fairbury Towers


Ladder Mounted With "J" Bolts


Flat Strap Cross Braces With Ladder Of Angle Iron Posts & Rungs


Wide Top Tower Cap & Storm Stay


Early Version With 20ft Upper Tower Posts

Flint & Walling Towers


20ft Early F &W Tower


5/16" Round Cross Braces


Early Style Tower Cap & Stay Mounted With U-Bolts


Cross Braces Threaded Through Girts


50ft Suburban Tower


Ladder With Flat Bar Rails & Round Rungs


Star 24/37 Tower Cap

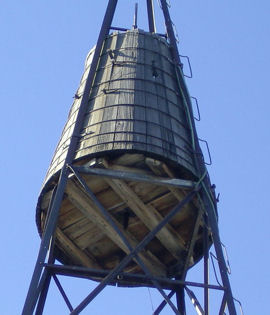

Suburban Tower Tank

Freeman & Sons Towers


Ladder


Rod Cross Brace w/ Cast Clamp

Heller-Aller Towers


Angle Iron Cross Braces


Stamped Sheet Metal Step

I.X.L.


20ft Tower


Cross Brace Anchors, Upper End


Ladder


Girt, Cross Brace & Anchor Bolt Pattern

Kenwood, Marcy, Red Cross Towers


Ladder Of Flat Strap Posts With Round Rod Rungs


4 Post Version


Round Rod Cross Braces Hooked On One End And Threaded On The Other
.

Maud Towers


Spares Girt Spacing On Upper Section


Cross Brace Turnbuckle & Ladder

Perkins Towers


Channel Iron Cross Braces And Ladder Rungs


Channel Iron Ladder Rungs


Channel Iron Cross Braces & Girt

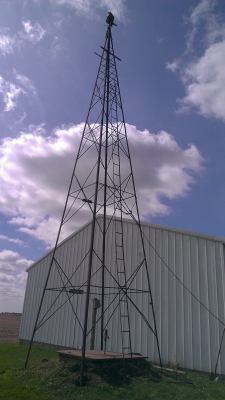

40ft Perkins Tower


Rod Cross Braces Used On Late Version Towers


40ft Perkins Tower

Phelps & Bigalow Towers


Angle Iron Ladder Rung


Rod Cross Braces With Loop End and Threaded End

Stover Towers


Ladder With Angle Iron Posts And Folded Sheet Metal Rungs


60 Degree Angle Iron Posts, Braided Wire Cross Braces w/ Ecentric Washers


Brace Clamps


4 Post Version


Clamps Used To Tighten Wire Cross Braces


Ecentric Washers


Duck Foot Flair On An Anchor

.

U.S.W.E. Towers

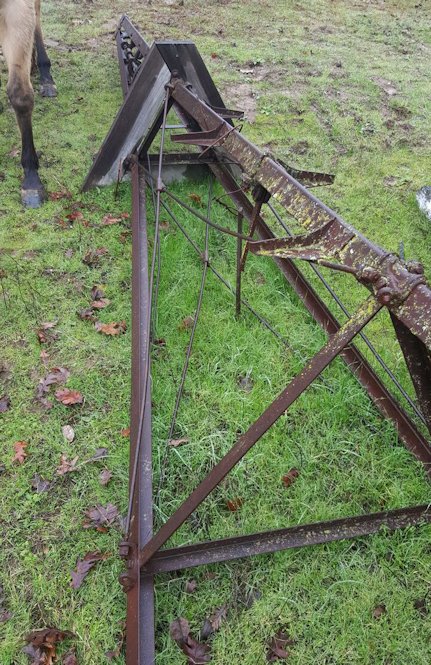

Gem 3 Post Tower


Late Style Pressed Sheet Metal Step


Late Style Tower With Pressed Sheet Metal Steps & Round Cross Braces



Late Style Cross Brace Outside Corner Mount

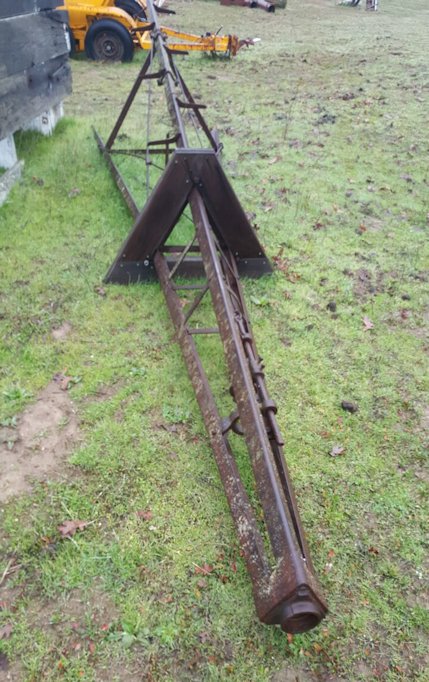

Earliest Style Gem 3 Post Tower

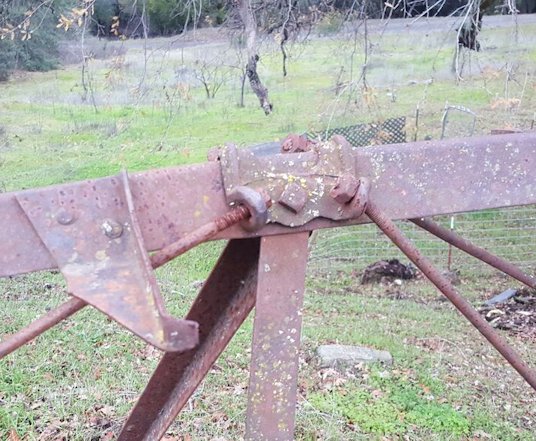

Early Style Cross Brace Outside Corner Mount


Earliest Style Gem 3 Post Tower


3 Post Tower & Pull-Out Assembly for Double Motion Gem



Woodmanse Towers


Corner Bolts At Post Joints On Both 3 & 4 Post Versions


Closely Spaced Girts On Upper 10ft Section To Form Ladder


Clamps For Round Rod Cross Braces


4 Post Version with Round Rod Cross Braces


Clamps For Round Rod Cross Braces


60 Degree Angle Iron Posts, Round Rod Cross Braces w/ Clamps


Late Version Clamps For round Rod Cross Braces


4 Post Tower Stub w/ Tower Cap


Eccentric Washers Used On Some Models


20ft 3 Post Tower

All pictures are protected by copyright laws and may not be used without the written permission of Windmill-Part.com or the original source.
