Mill Identification A to B


Additional pictures were added to this page on 7/6/18.

One of the most fun aspects of acquiring and restoring a windmill is the treasure hunt itself. The "hunt" often includes identification of remnants or partial mills as many are acquired as gifts from relatives, neighbors or friends or purchased from local farmers and ranchers cleaning out years of accumulation. As a result we are often contacted to assist in the identification of a mill as knowing its manufacturer, model designation and size are important first steps towards finding parts for its restoration.

While some mills, like those made by R.G. Marcy as the Red Star or Kenwood, were copies of those made by other prominent manufacturers, most mills have unique visual characteristics beyond part casting numbers. Windmill manufacturers were always looking to create a special feature or uniqueness that would separate them from their competitors and attract new buyers. Others did it to insure their place in future sales of replacement parts. Sometimes it was the shape of the tail vane, or the shape of the bonnet. Perhaps it was a sail brace/clip, wheel arm or the configuration of the wheel hub that the manufacturer thought made their mill "the best".

We have created this website page as educational help in narrowing your search identifying your lastest acquisition or the parts you are missing. While it is impossible for us to offer pictures of every windmill and its every part, we are hopeful these pictures, along with our other gallery pages, will help confirm your research or what others may have told you about your mill. This page is updated frequently as we acquire additional pictures that fit this format.

All pictures are protected by copyright laws and may not be used without the written permission of Windmill-Part.com or the original source.

Aermotor

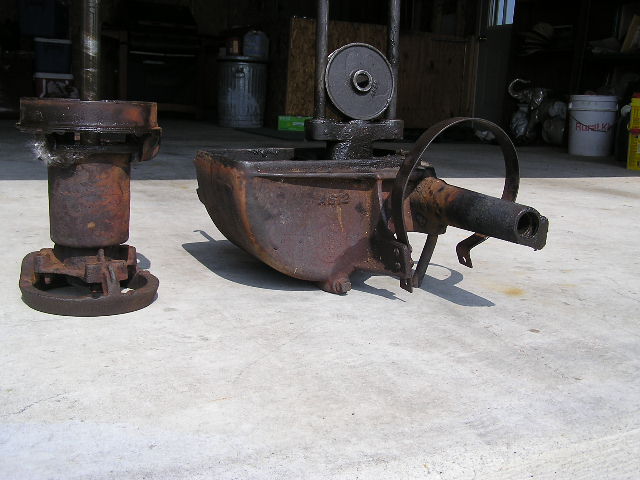

Rare 612 Case & Hub

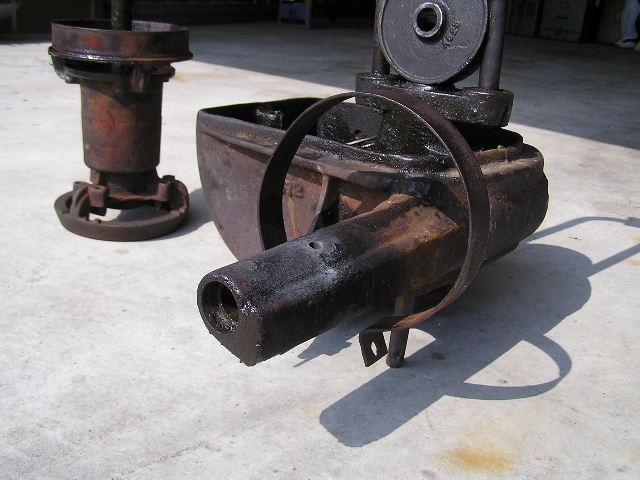

A-612 Case

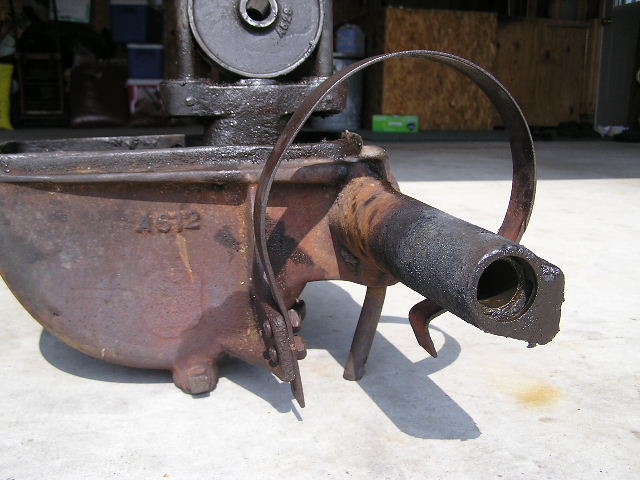

Unique Main Shaft Oiling Snoot of an A-612

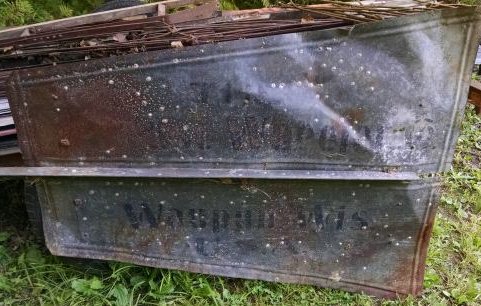

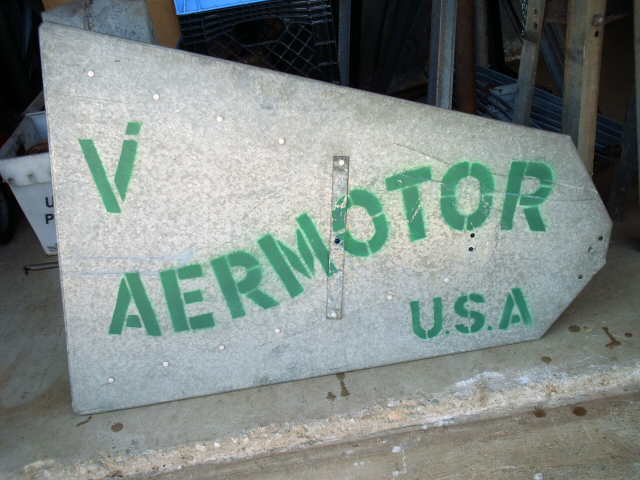

A-602 Vane


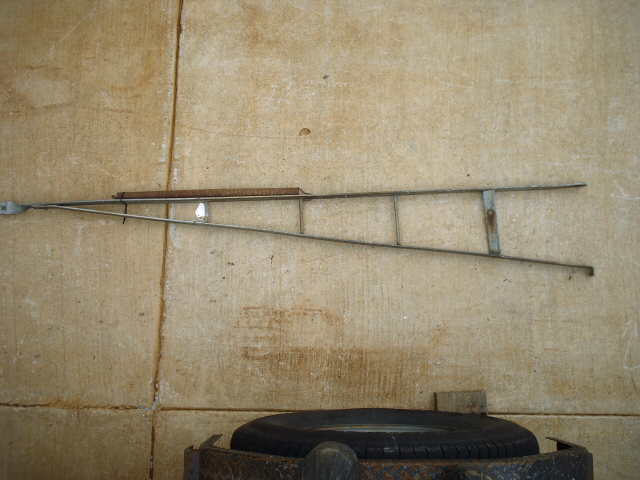

602 Vane Stem w/ Round Braces


402/502/602 Wheel Spoke


502/602 One Rivet Sail Brace


Pumping Aermotor Hub

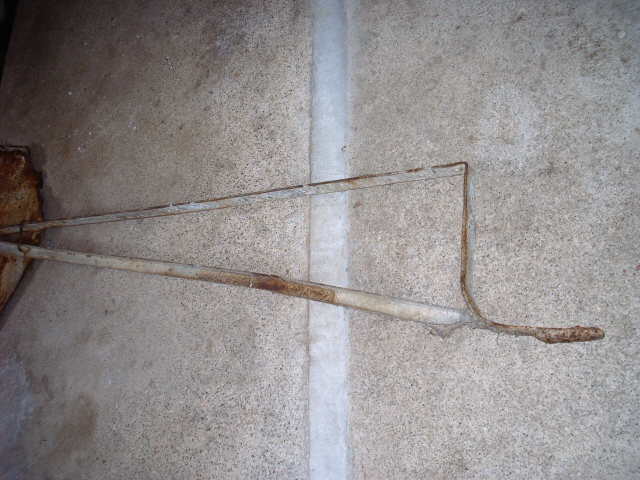

Pumping Aermotor Vane Stem

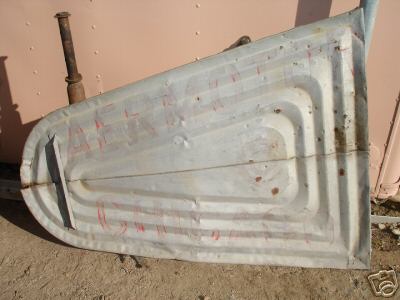

502 Vane

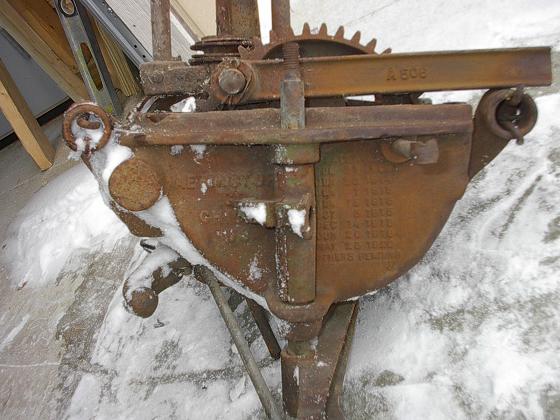

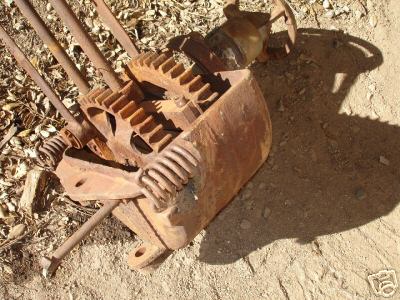

A-502 Head


A-502 Head


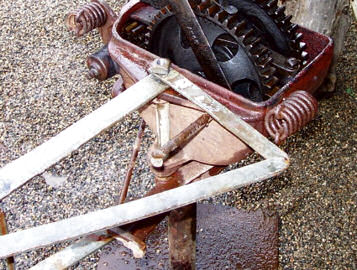

502 Tailbone / Buffer


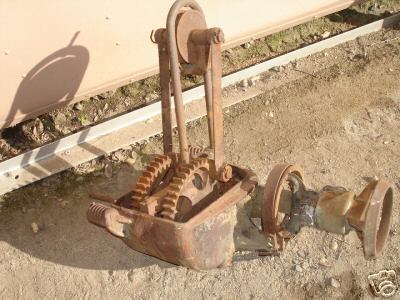

502 Case, Uniquely Post 1920

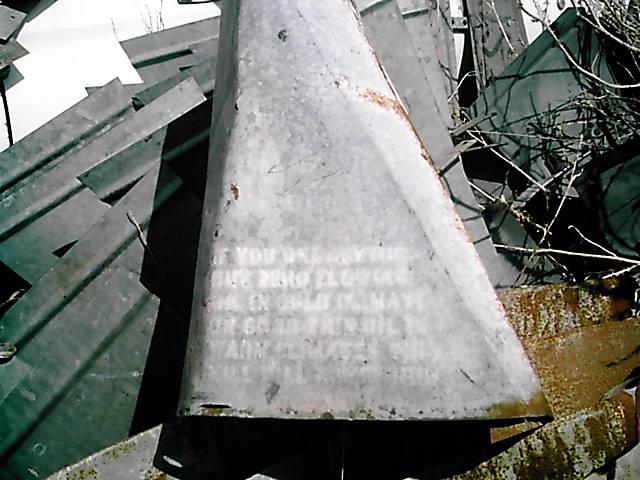

502 Bonnet


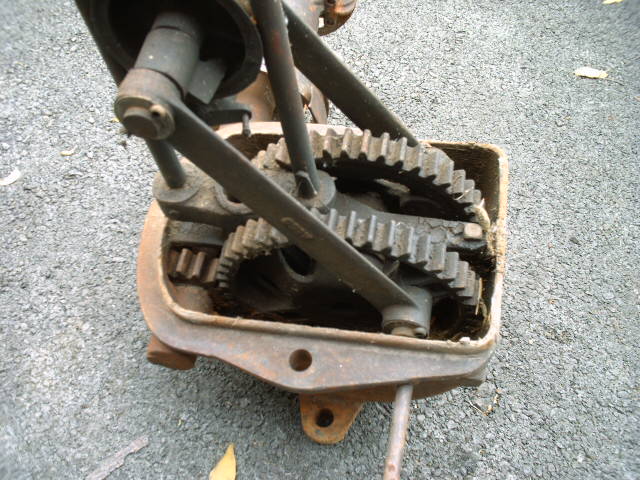

Early A-602 Short Stroke Pitmans, Gears

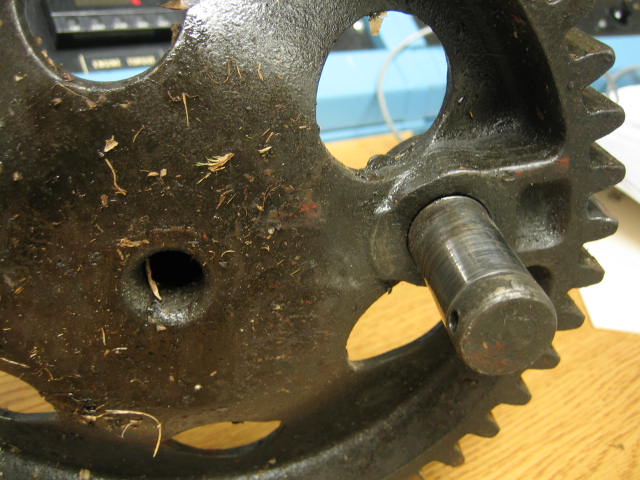

Early A-602 Lg. Gear & Pitman Post

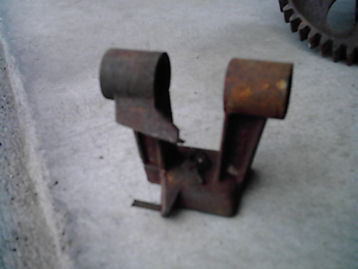

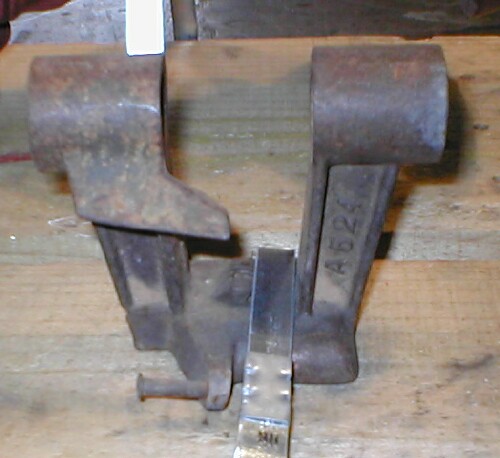

524 Flapper Yoke used on 502 early 602's


Earliest 602 Buffer


Early 602 Case

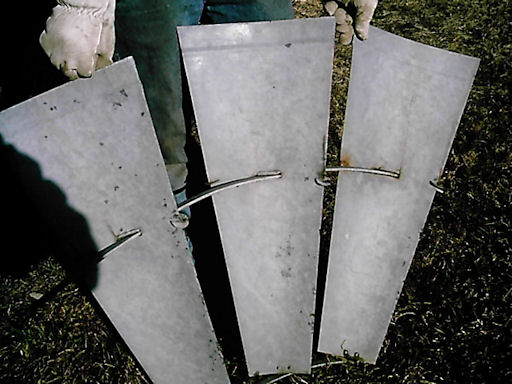

Unusual Crimped Sails On A602 Bands


Early 702 Hub

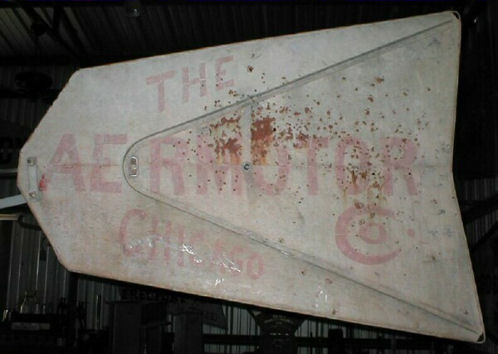

Valley Industries, Conway, AR Vane

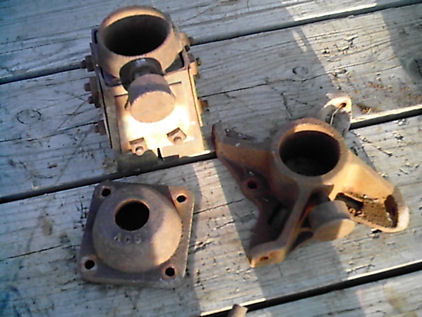

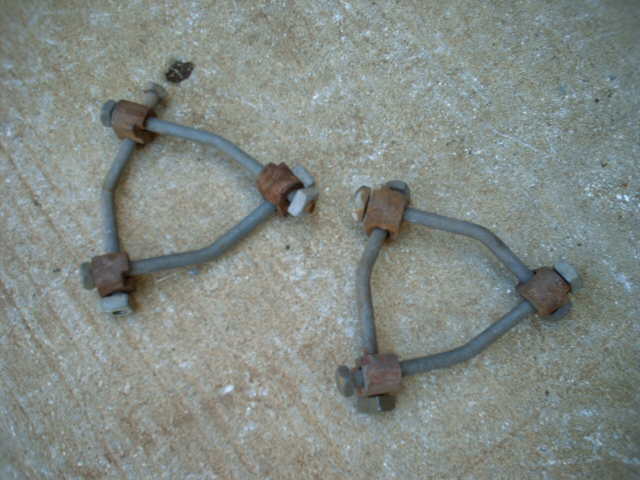

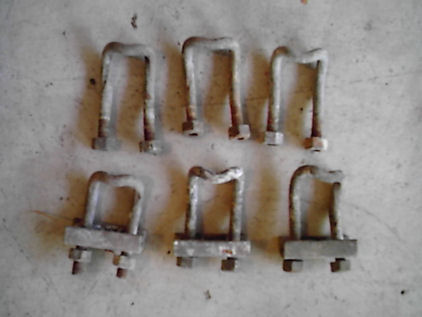

 3 Post Tower Clamps

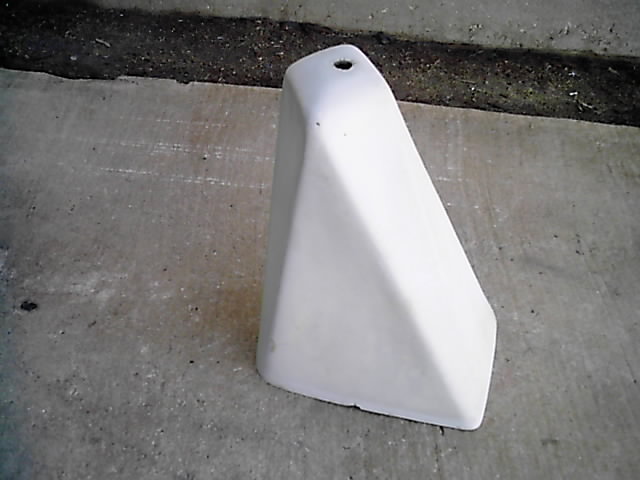

Early 802 Molded Fiberglass Bonnet


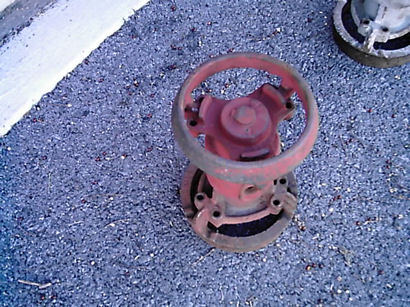

602 Hub w/ U-Bolt Spoke Mount Holes


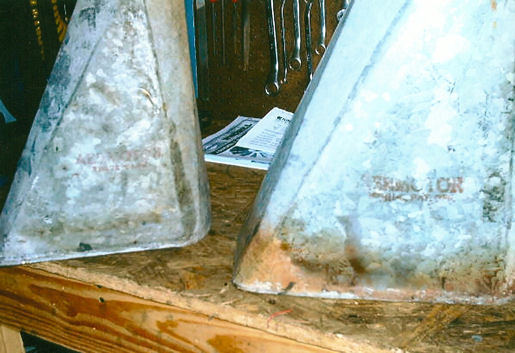

 Early Logoed Bonnets


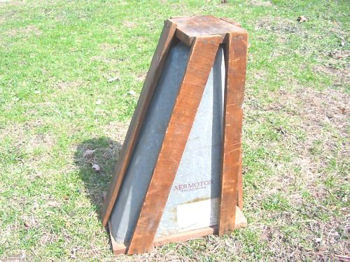

Old Factory Crated Bonnet


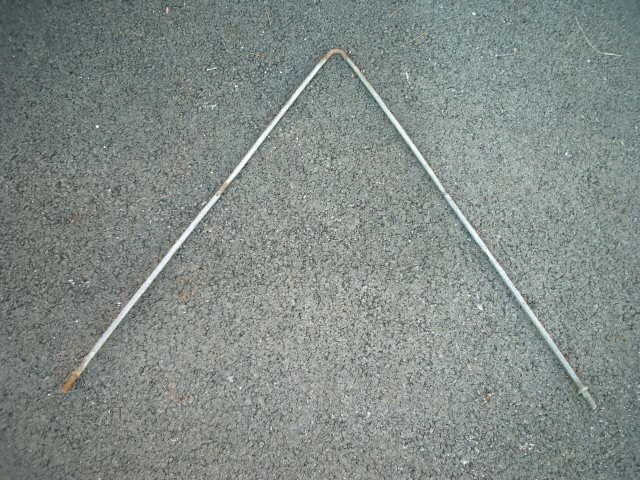

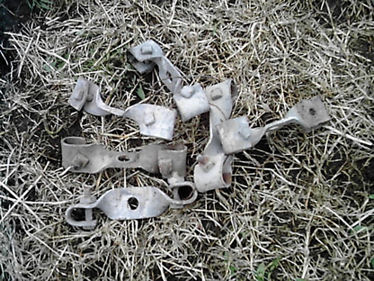

Spoke Braces for E-502/602


Used On Original Design 602 For Spoke Installation Only


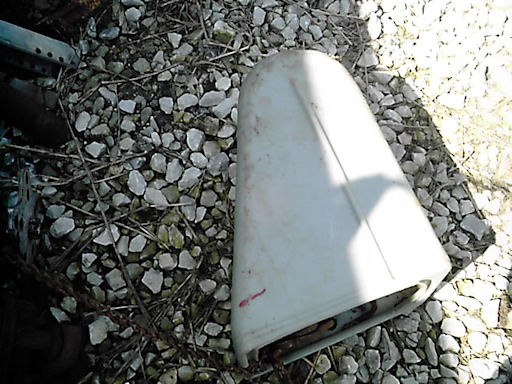

Dakota Windmill Inc. Plastic Bonnet


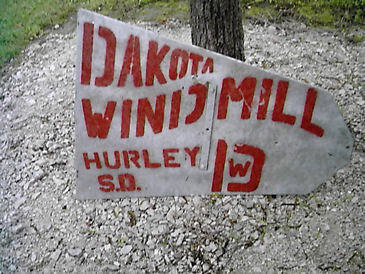

Dakota Windmill Vane

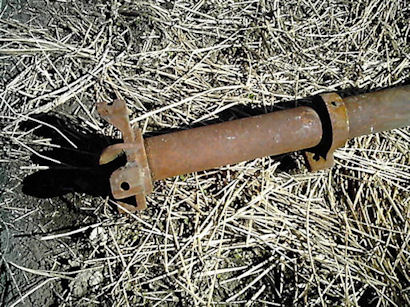

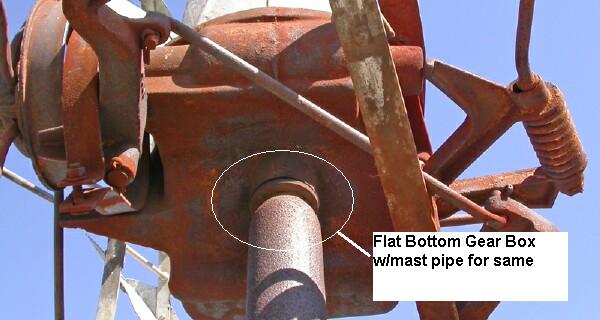

602 Post Mount Mast Set Up

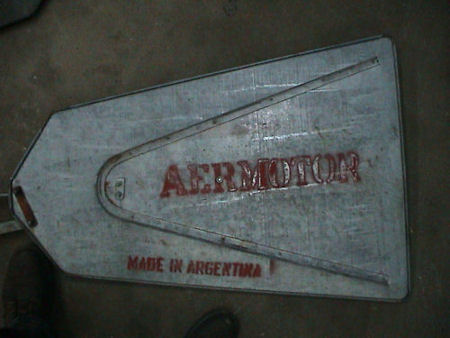

Argentine Aermotor Vane (FIASA)


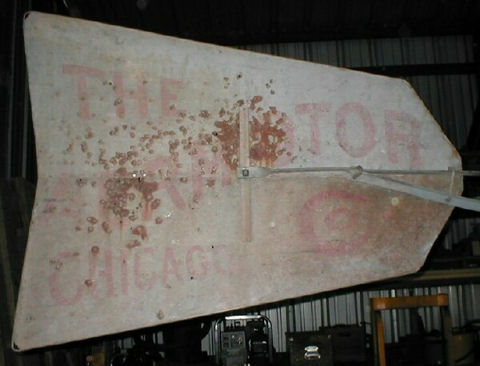

Early Pumping Aermotor Vane


Early Pumping Aermotor Vane


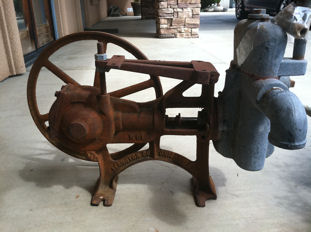

Early Pump Jack

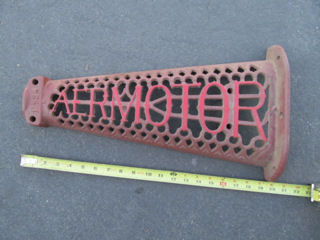

Rare Latice Pump Base

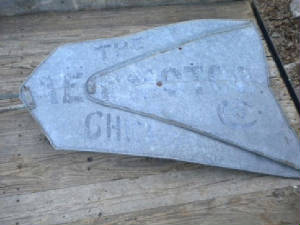

Bell Hub Vane w/ Original Black Logo


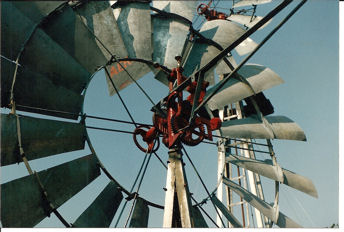

1897 Bell Hub Model


1897 Bell Hub Model


1897 Bell Hub Model


Original Aermotor Sails & Braces

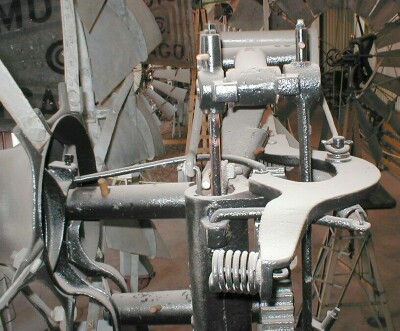

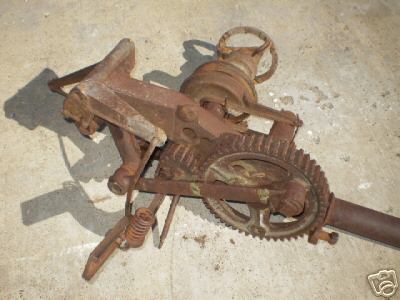

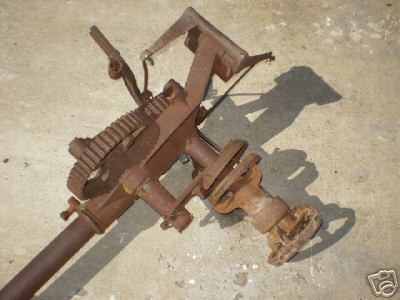

Bell Hub Pumping Aermotor

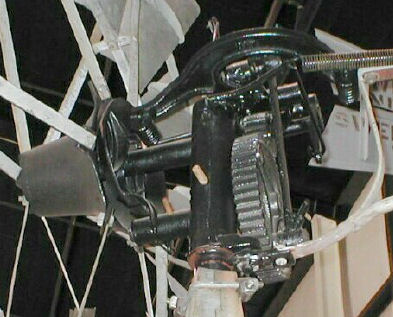

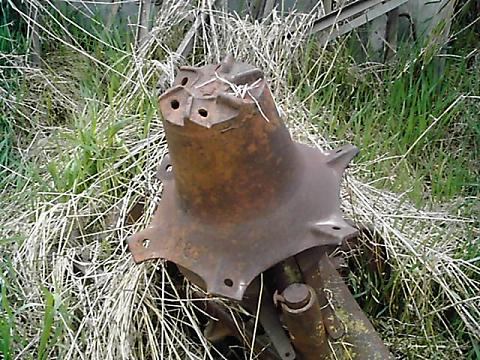

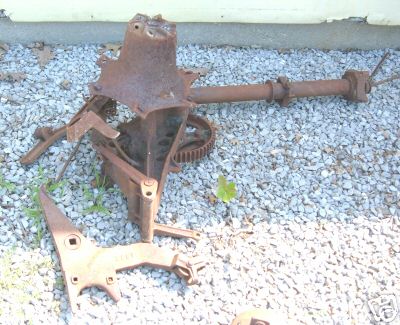

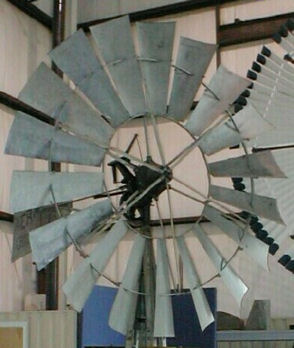

Bell Hub

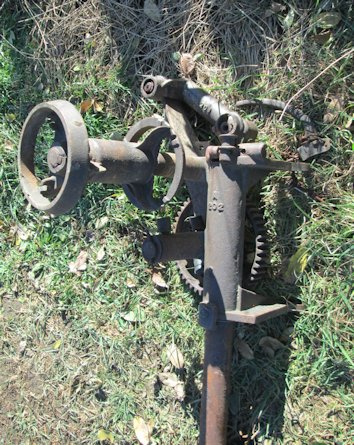

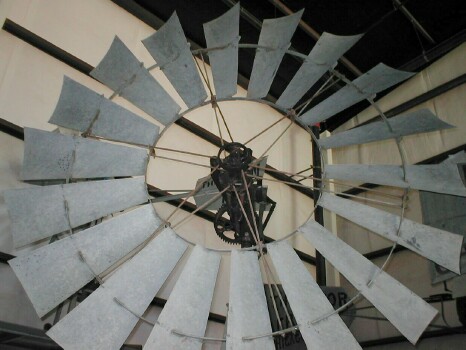

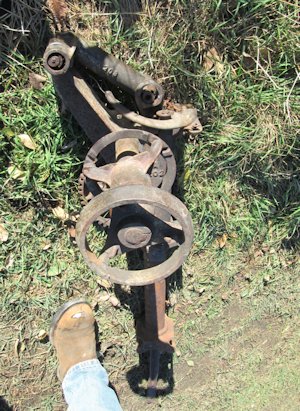

1898 Roller Bearing Model


1898 Roller Bearing Model


1898 Roller Bearing Model


10ft 1898 Model w/"Glass Oiler"

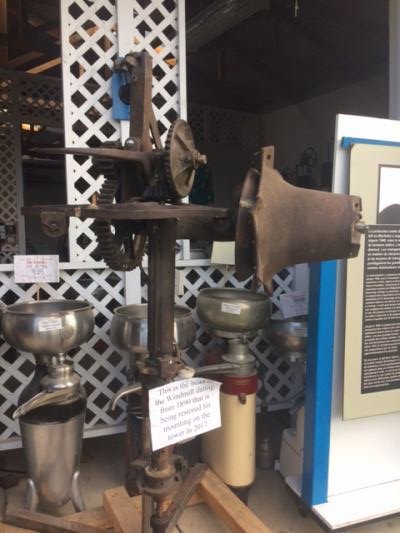

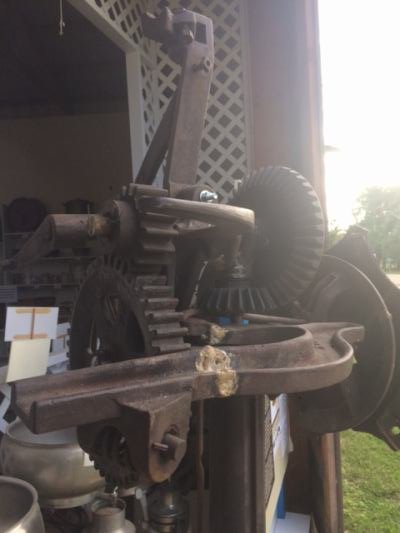

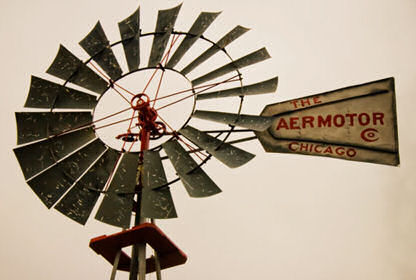

Power Mill Head

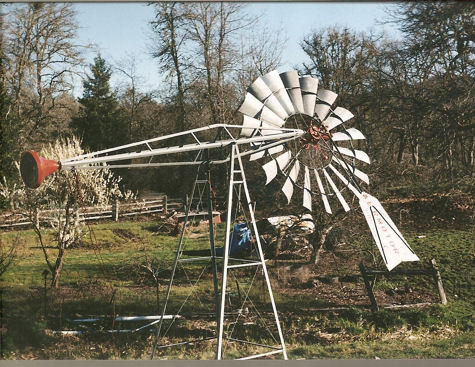

1890's Tilting Tower

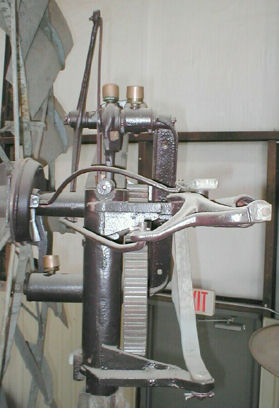

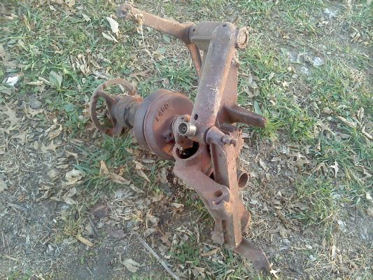

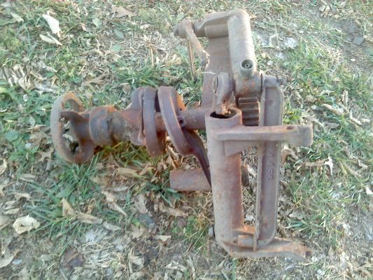

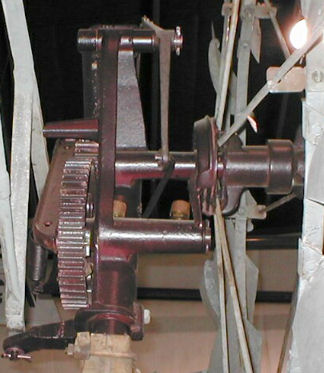

1899 Pull-In Model


1899 Pull-In Model


1899 Pull-In Model


1899 Pull-In Model


1899 Pull-In Model


1899 Pull-In Model

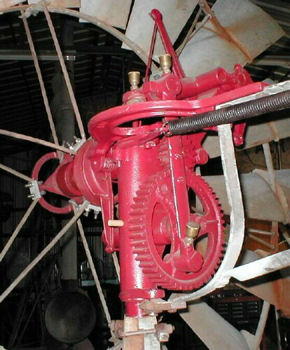

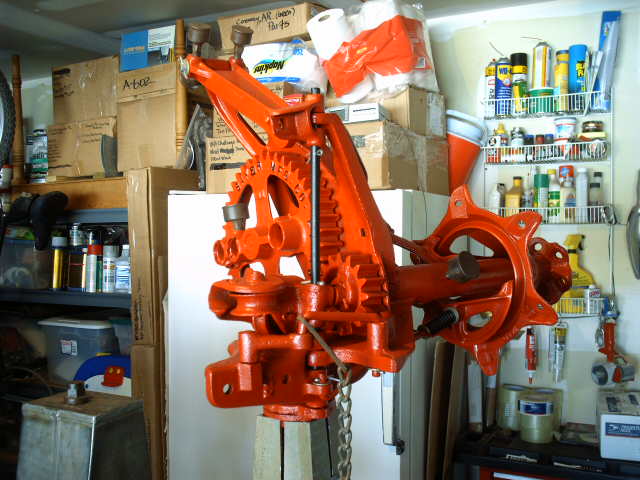

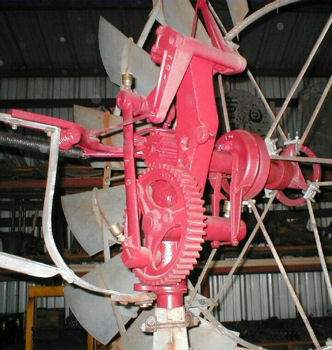

1903 Model


1903 Model


1903 Model


1903 Model

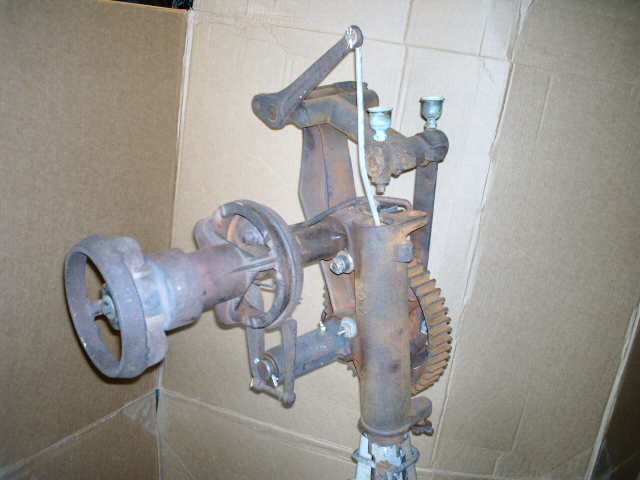

1905 A405 R.A. Model

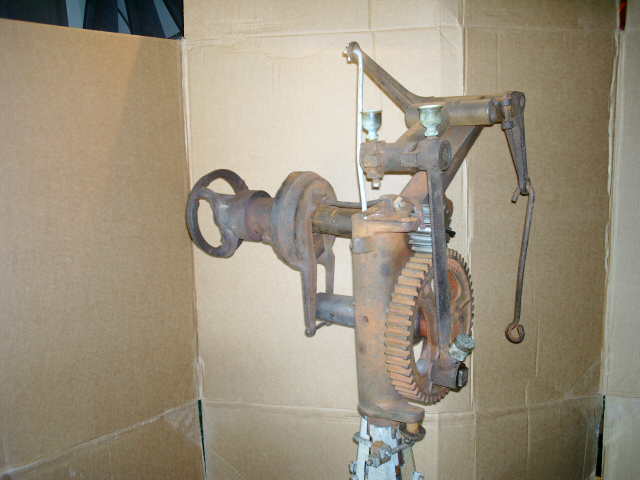

1905 A405 R.A. Model


1905 R.A. Model


1905 R.A. Model


1905 R.A. Model


Model 1898 Vane Stem

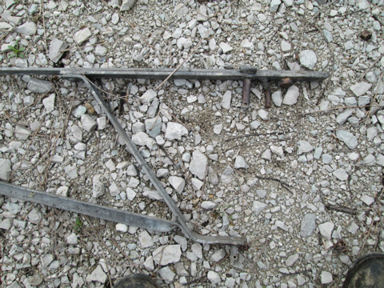

Model 1899 Vane Stem


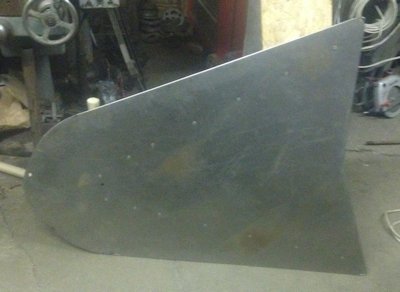

Reproduction Vane for Original Aermotor & Early Bell Hub Models

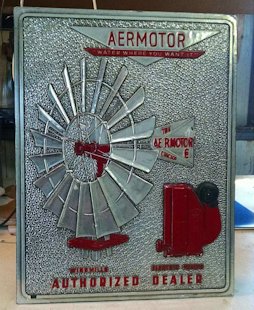

Dealer Advertising Plaque


1898 Roller Bearing Model


1898 Roller Bearing Model

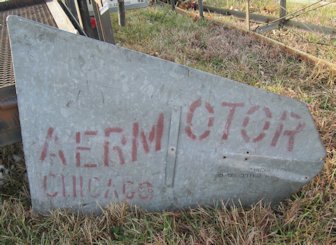

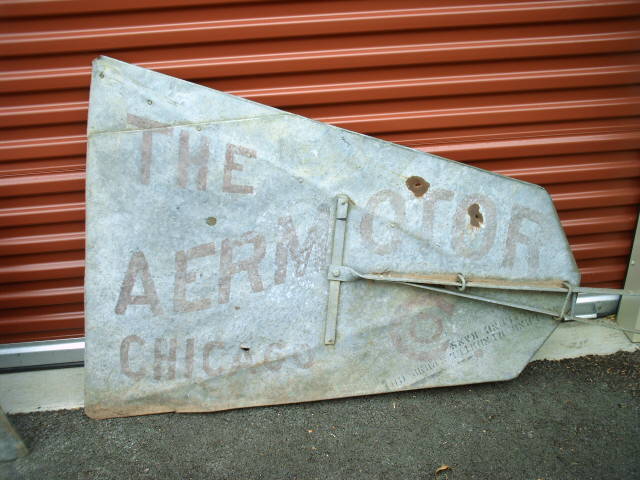

Last "Chicago" Vane Logo
(no Co.)



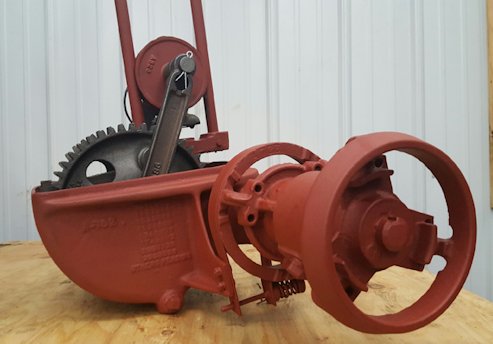

Early 702 with 723 Hub for 602 Wheels



12ft Power Mill


12ft Power Mill

Aero-Matic


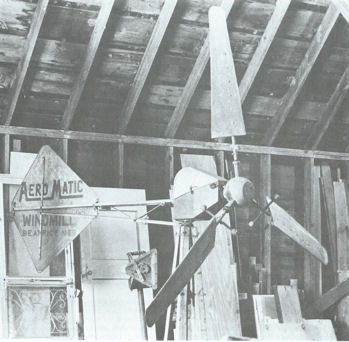

Vaned Model

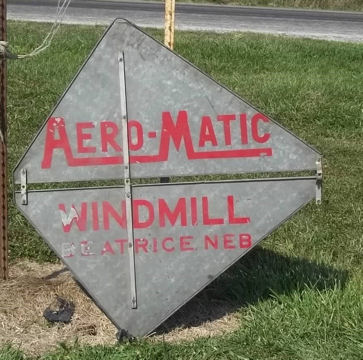

Vane


Rear ID Plate


Vaneless Model Motor


Vaneless Model Motor


Vaneless Model Motor

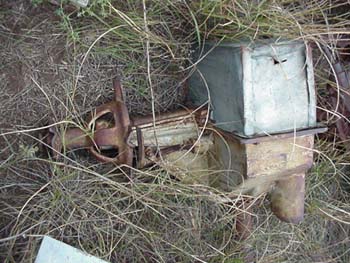

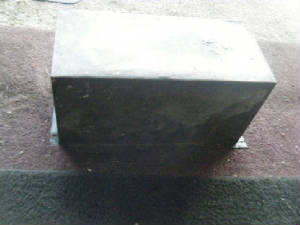

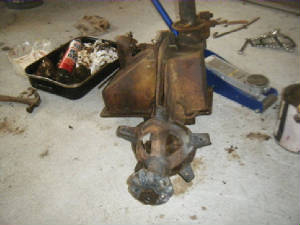

Air King

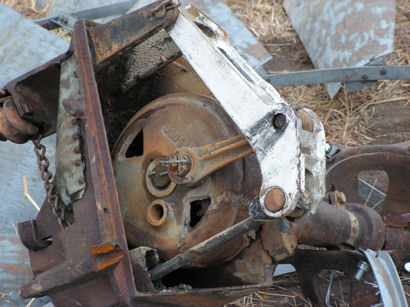

Head & Vane

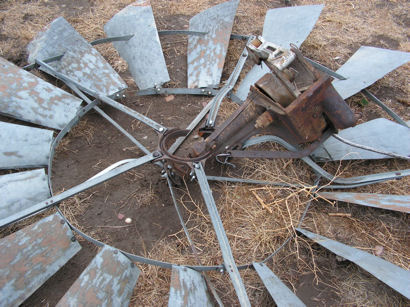

Wheel Section


Head

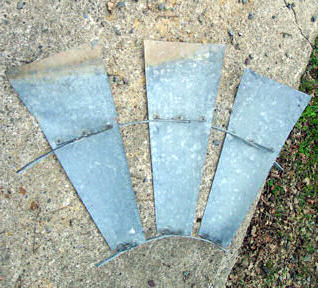

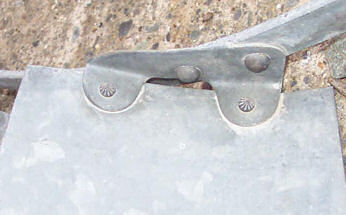

Outer Sail Brace


Inner Sail Brace


Wheel With Angle Iron Arms


Head & Bonnet


Vane


Outer Sail Brace (Face of Sail)


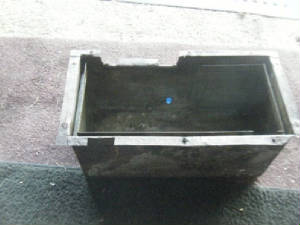

Bonnet


Bonnet

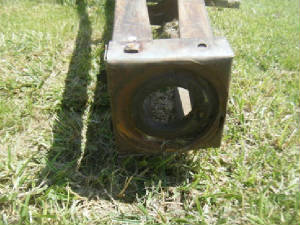

Tower Cap

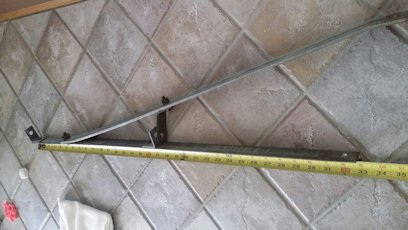

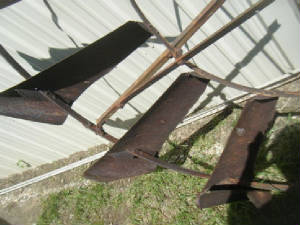

Spoke


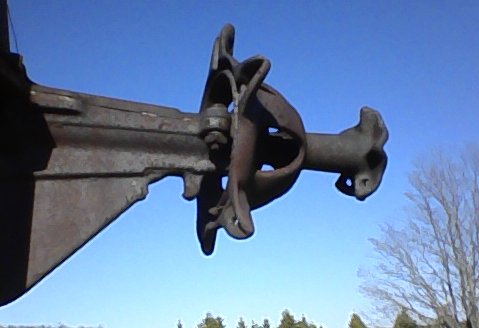

Hub

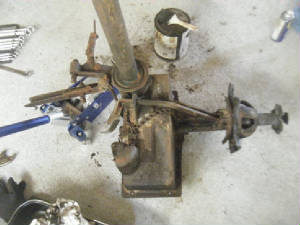

Motor



Hub

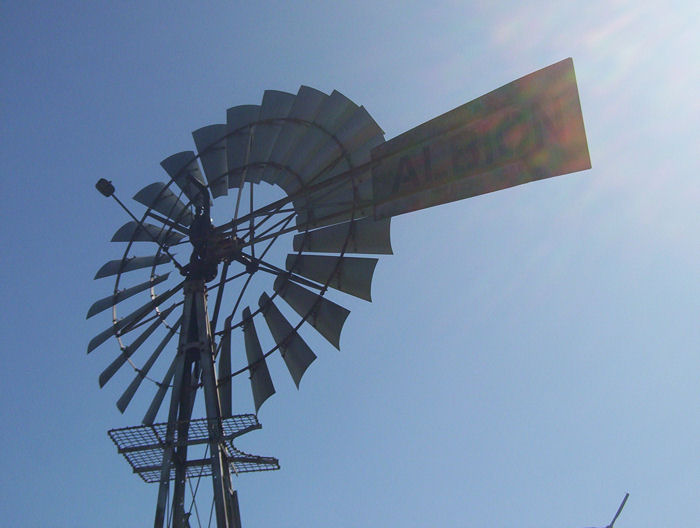

Albion


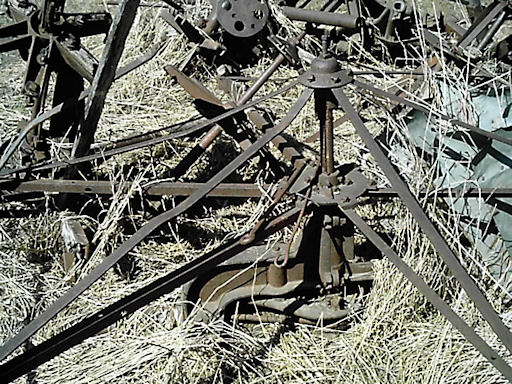

Albion Steel Head


Albion Steel Complete

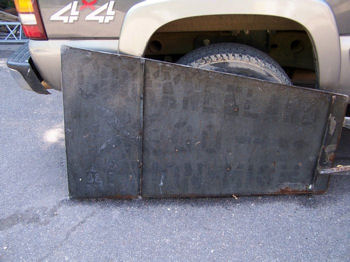

Vane

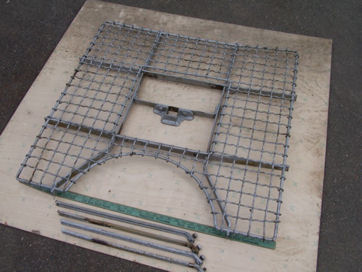

Tower Platform

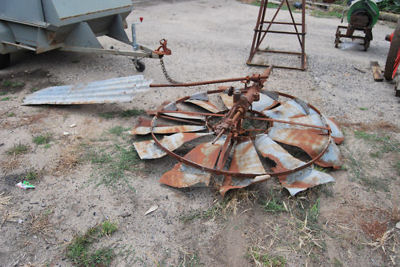

Alston

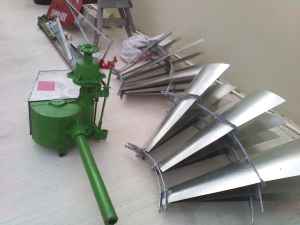

5 1/2ft Aqua


5 1/2ft Aqua

Althouse-Wheeler


Run In Oil Giant Vane


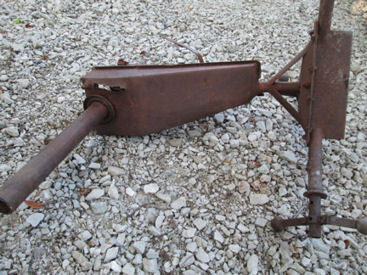

Steel Giant Main Frame


Mini Raymond
(reproduction by Emick)


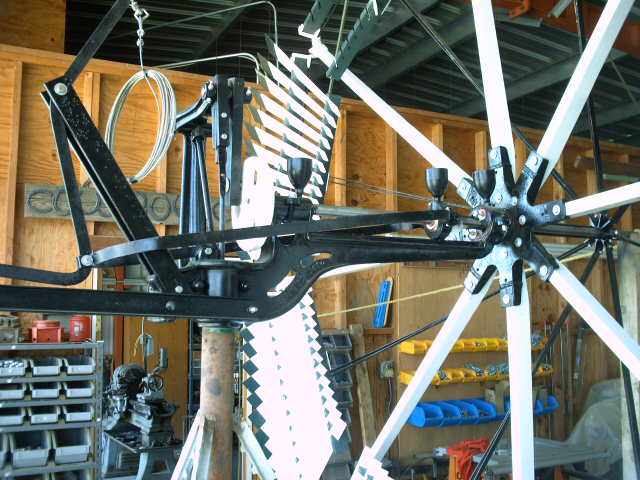

Pipe Raymond Head

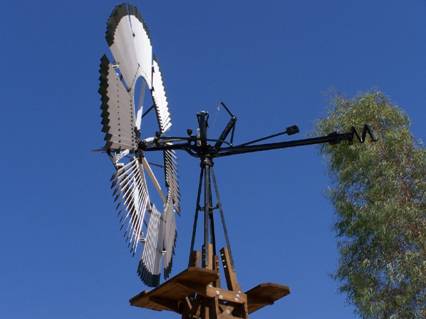

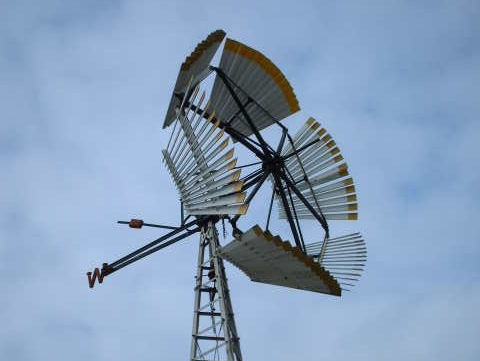

12ft Pipe Raymond

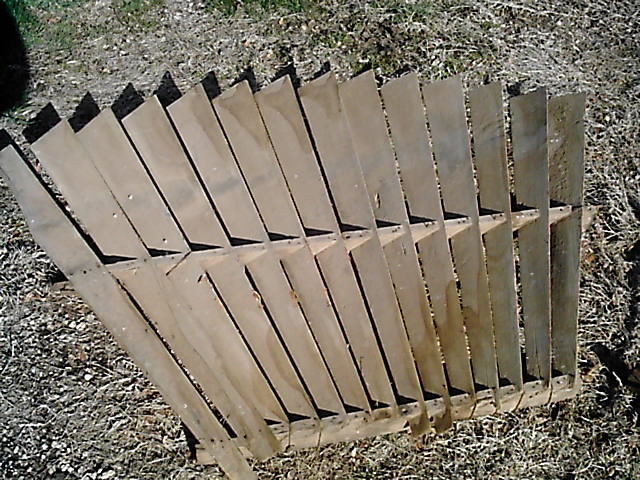

Raymond Wheel Section


Bobtail Raymond
Spoke & Govenor Weights

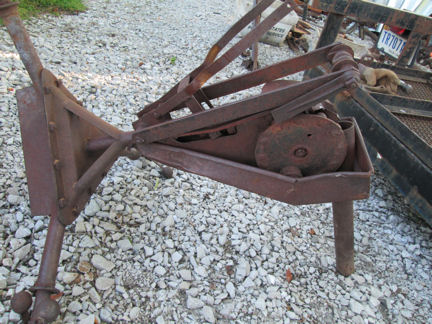

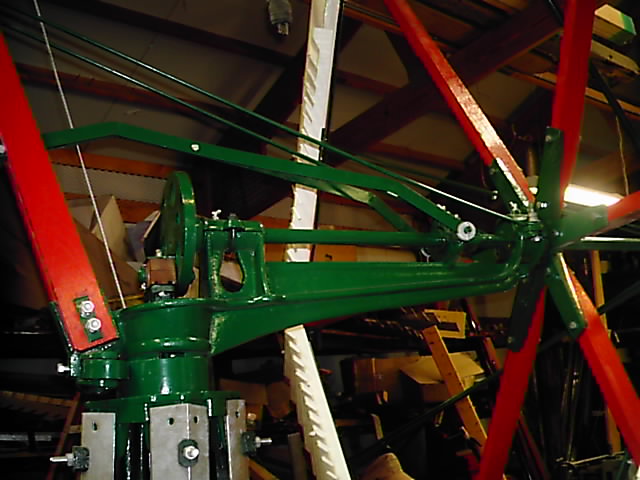

Bobtail Raymond Main Frame


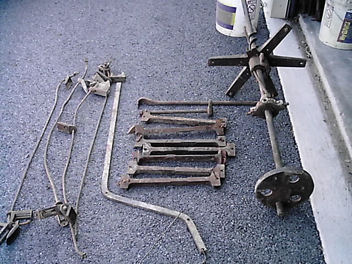

Bobtail Raymond Hub, Crank Plate
& Wheel Castings

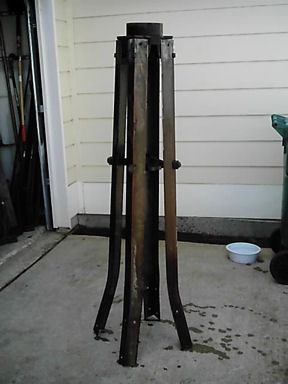

Bobtail Raymond Stub Tower

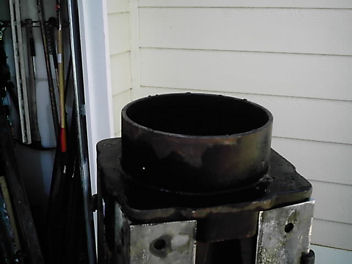

Bobtail Raymond Tower Collar


Bobtail Raymond Storm Stay


Bobtail Raymond Head

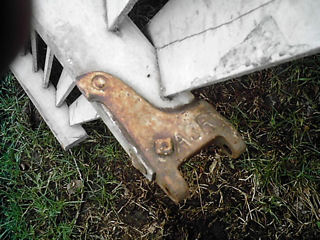

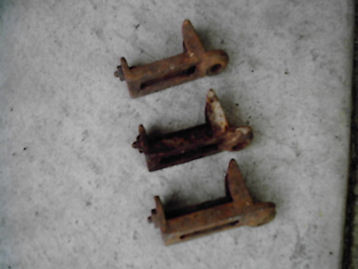

Raymond Wheel Section Pivot Castings


10ft Pipe Raymond

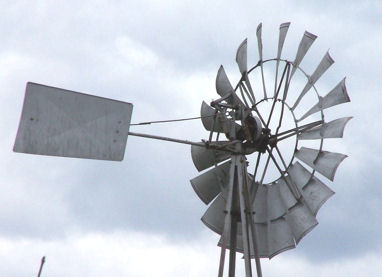

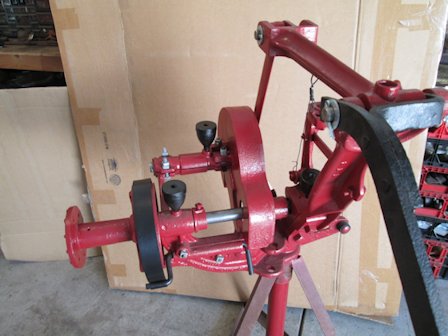

Run In Oil Giant


Run In Oil Giant


Run In Oil Giant


Run In Oil Giant


Run In Oil Giant

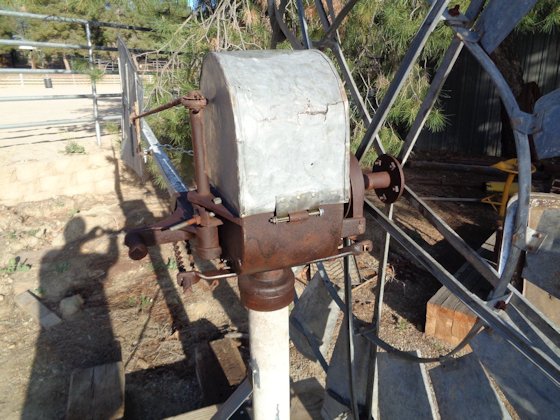

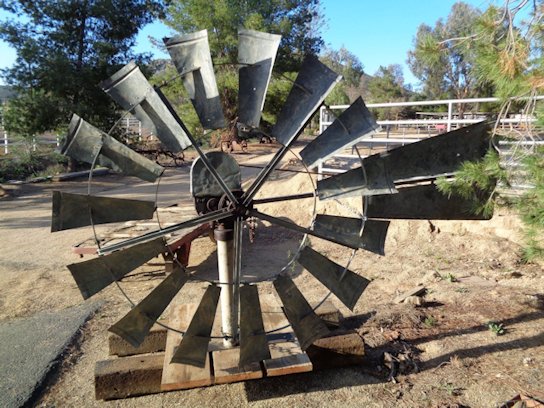

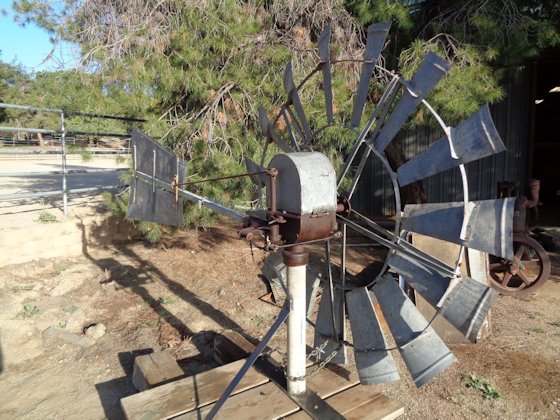

Run In Oil Giant as Montgomery Wards Windmaster


10ft Wheel

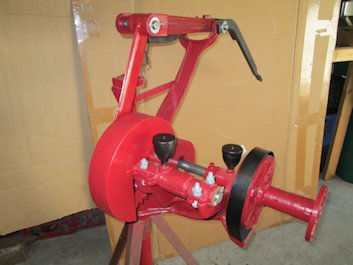

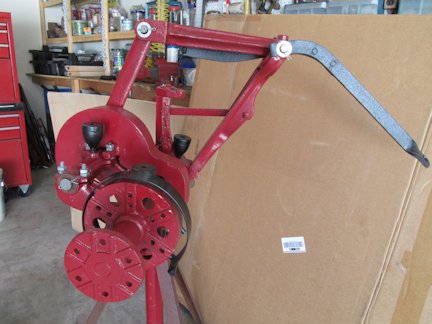

1937 Run In Oil Giant

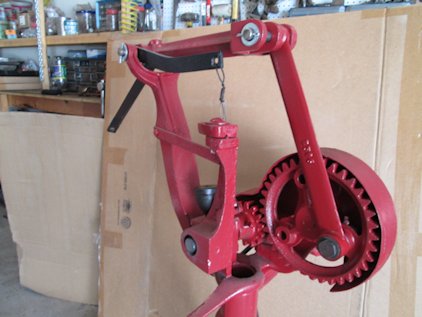

Giant Channel Iron Spoke

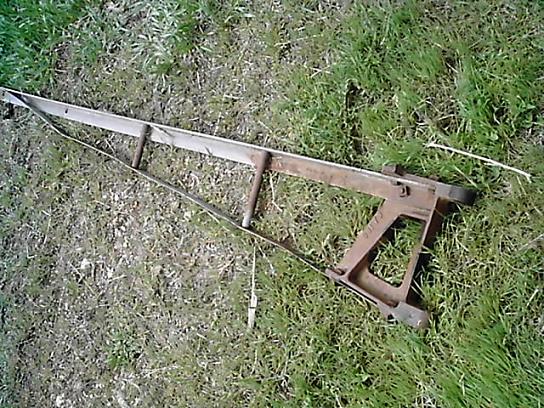

Vane



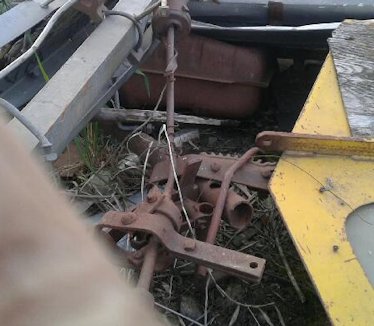

Pull-Out Assembly for Run In Oil Mill


8ft Steel Giant


Steel Giant


8ft Steel Giant


8ft Steel Giant


8ft Steel Giant


8ft Steel Giant

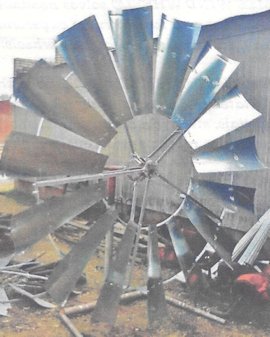

Ames Wind Wheel Co.

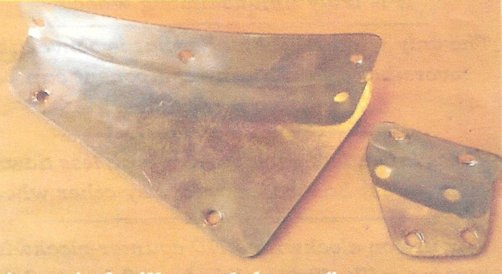

Convertible Reversible Sail Clips

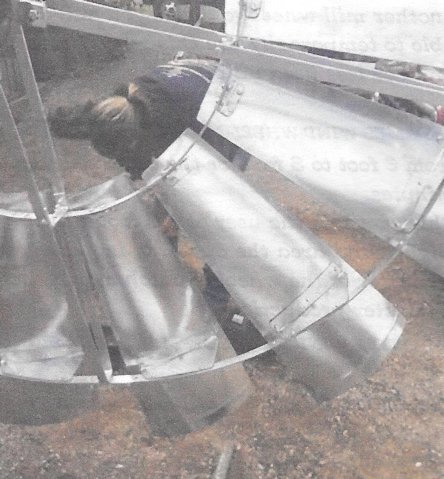

Convertible Reversible Sails

8ft Convertible Reversible Wheel

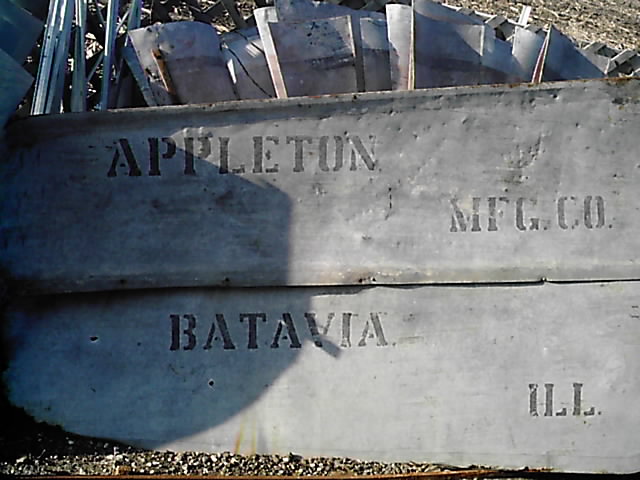

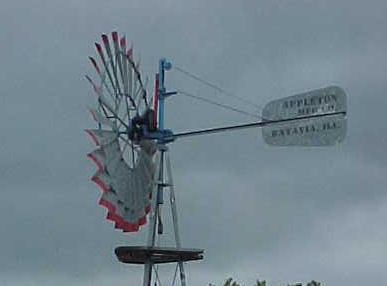

Appleton-Goodhue


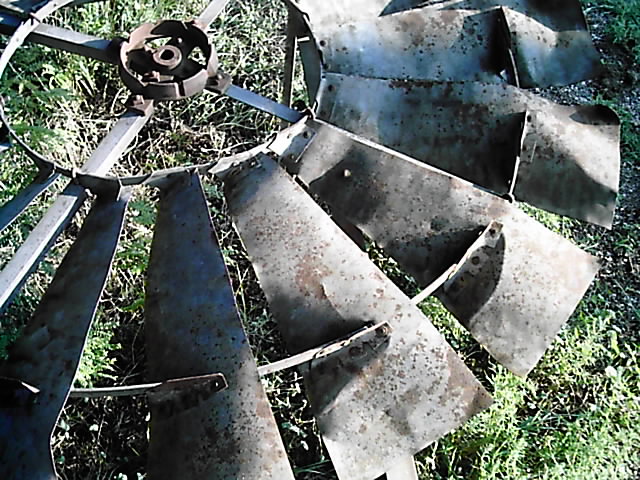

6ft Goodhue Outer Sail Braces


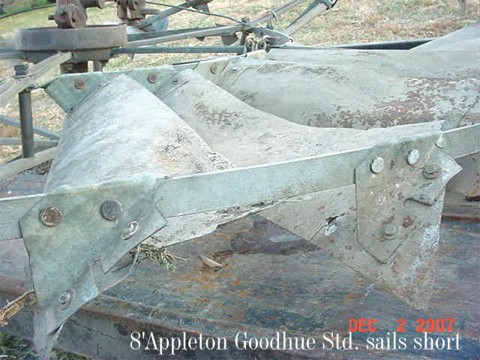

8ft Goodhue Outer Sail Brace

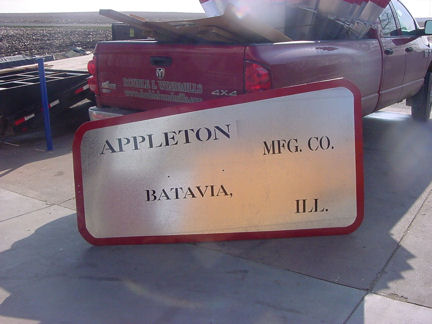

Power Mill Vane

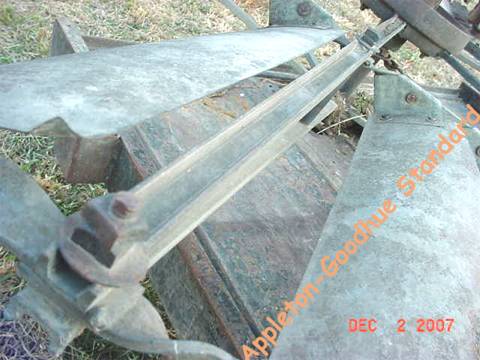

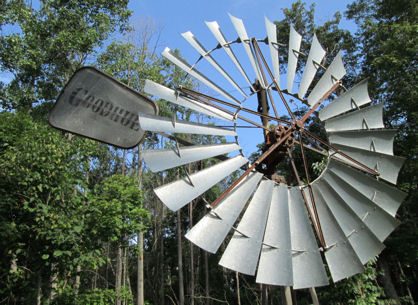

Goodhue Standard

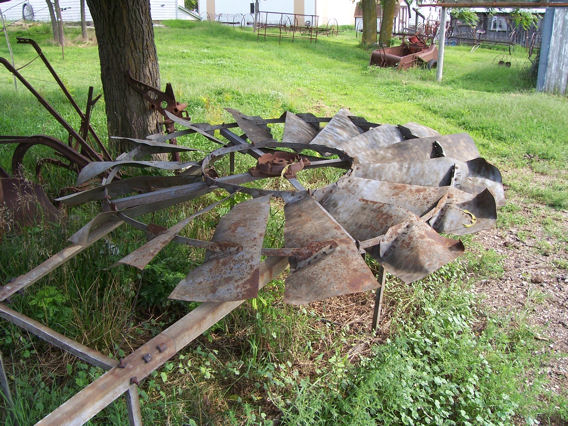

6ft Wheel


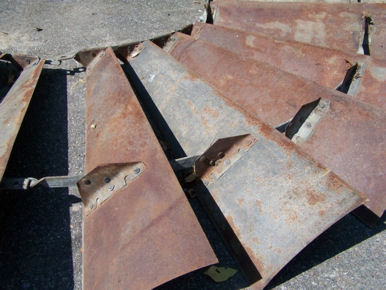

Sail & Outer Brace

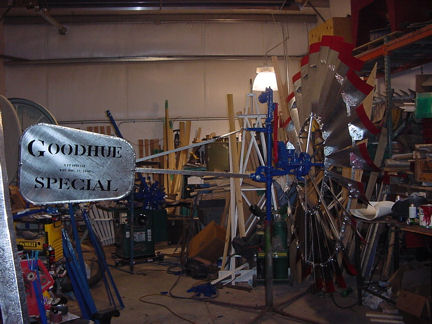

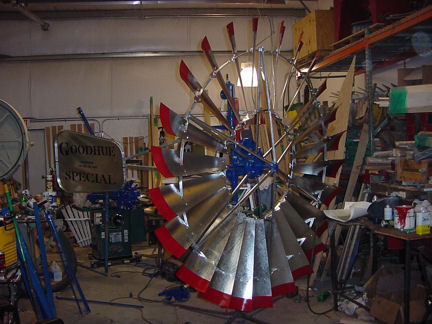

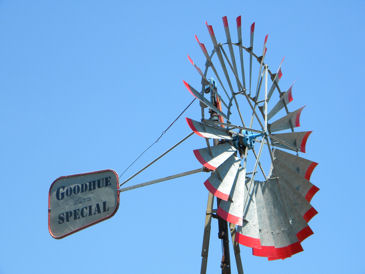

Goodhue Special


Goodhue Special w/ 24 Sail STD Wheel


Reproduction 14ft Vane Sheet


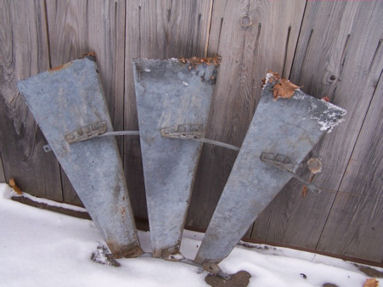

8ft Goodhue Special Wheel Section


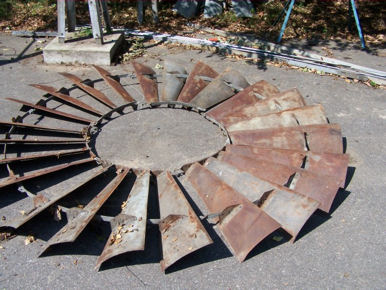

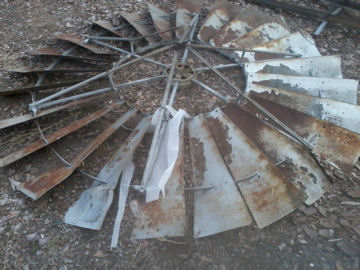

8ft Goodhue Std Wheel


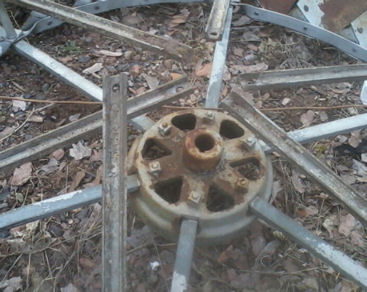

8ft Goodhue Std Hub & Spokes


8ft Back-Geared Goodhue

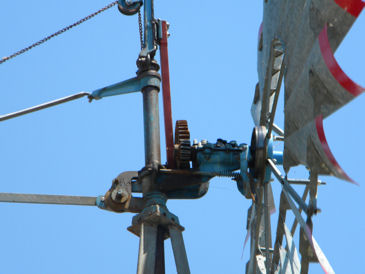

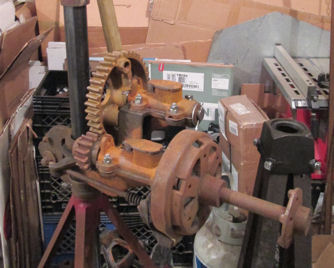

8ft Back-Geared Goodhue Motor


8ft Back-Geared Goodhue Motor

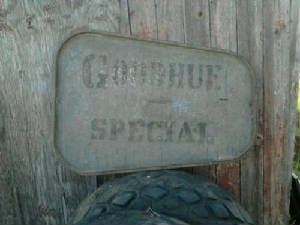

8ft Goodhue Special Vane


8ft Goodhue Special Vane

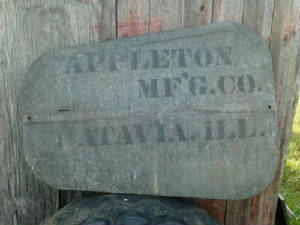

Goodhue Std. Vane

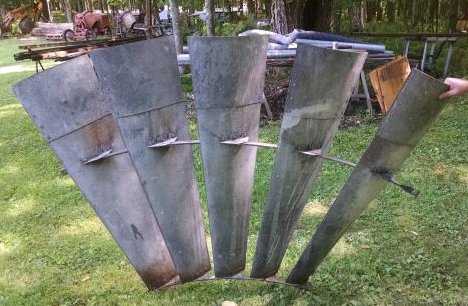

10ft Wheel Section
(extended to 12ft)


8ft Goodhue Standard


Goodhue Std. Wheel Arm

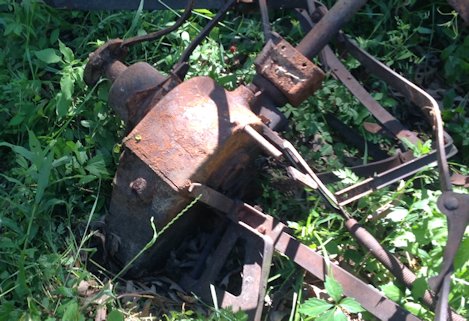

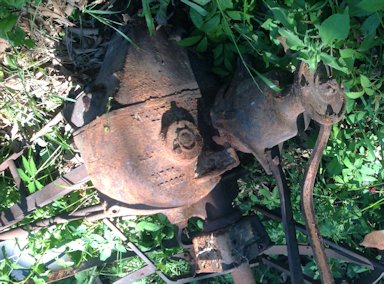

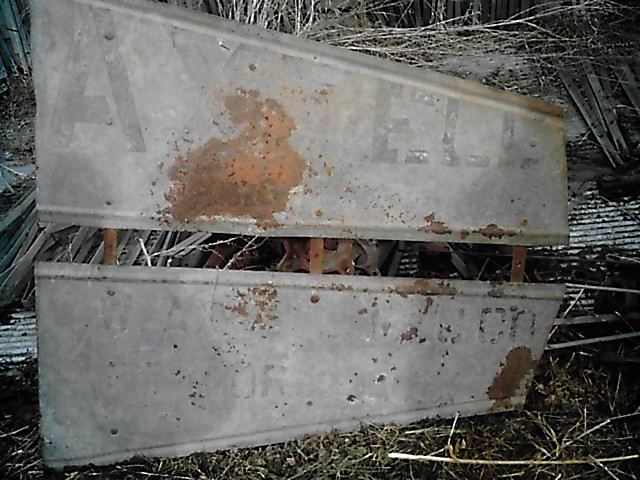

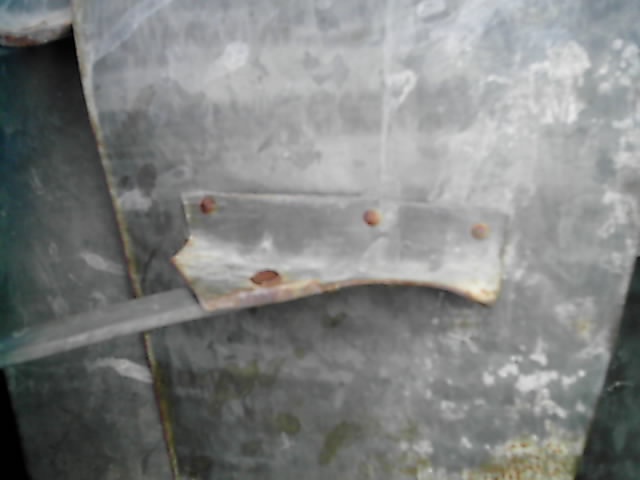

Axtell

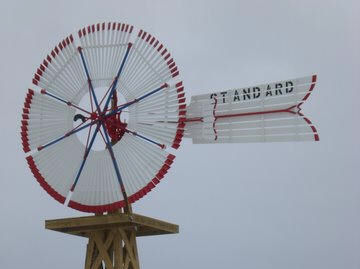

12ft Axtell Standard


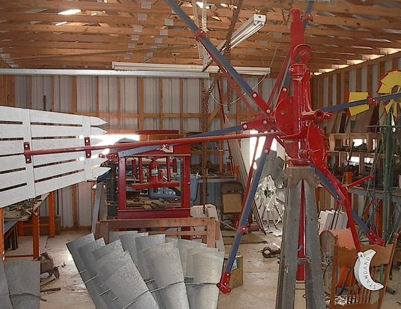

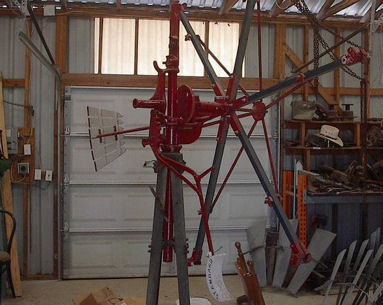

10ft Axtell Standard
(Eclipse Copy)


10ft Axtell Standard
(Eclipse Copy)


10ft Standard Roller Bearing
(Eclipse Copy)


10ft Standard Roller Bearing
(Eclipse Copy)

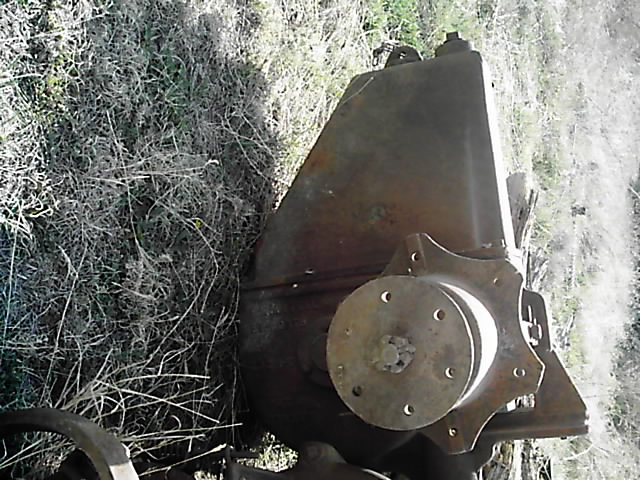

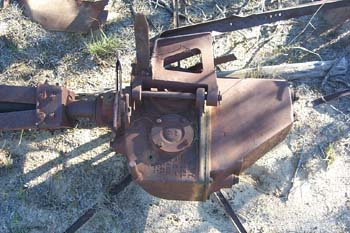

12ft Ever-Oiled Head


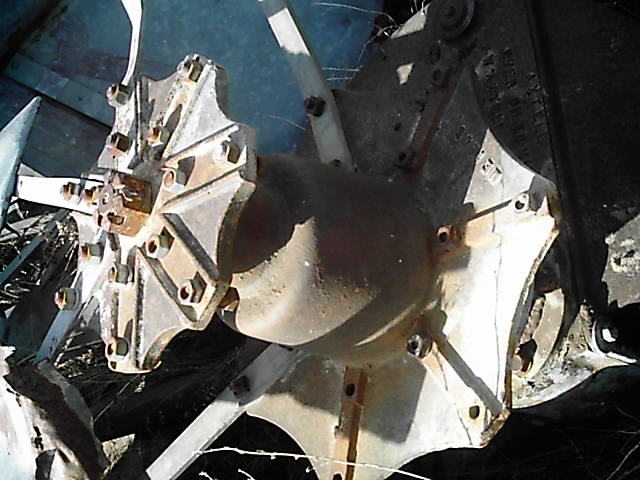

12ft Ever-Oiled Hub


12ft Ever-Oiled Sail

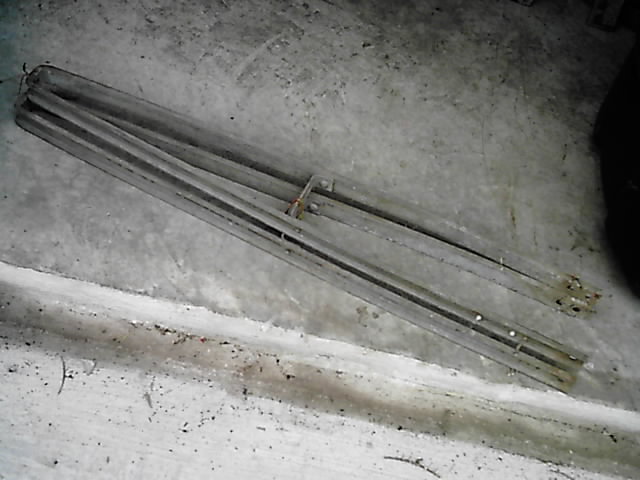

Channel Iron Spoke


Ever-Oiled Head


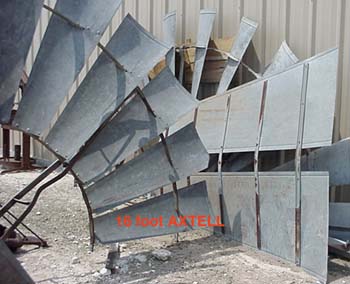

Vane & Wheel for 16ft


Vane


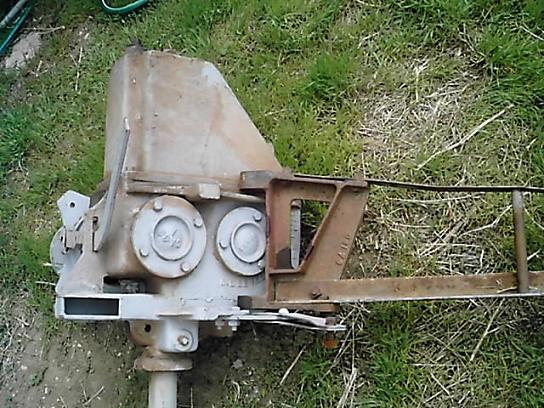

8ft Model C Ever-Oiled Head


Ever-Oiled Stem



Ever-Oiled Head


Ever-Oiled Head

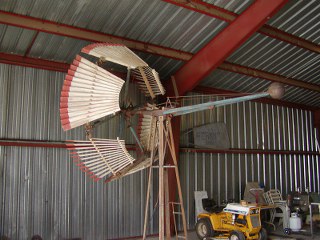

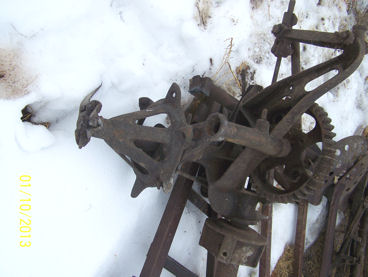

Baker Monitor

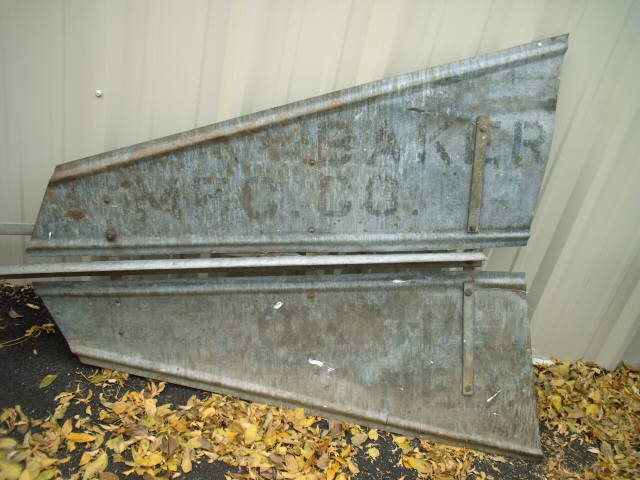

 K/A Vane


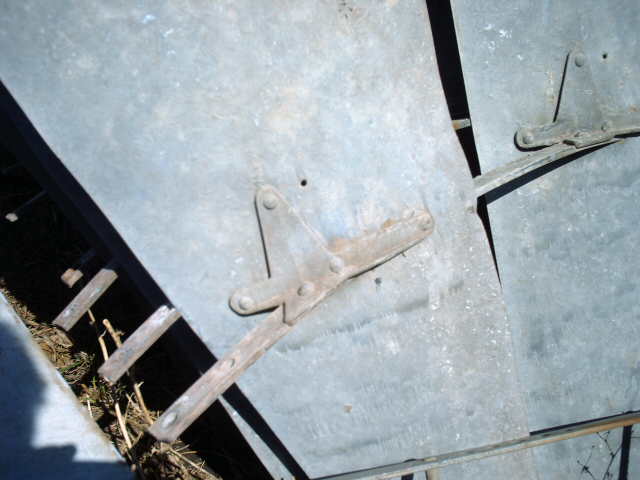

Sail Brace (face)

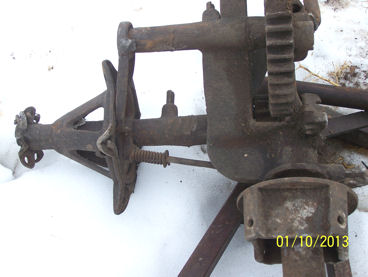

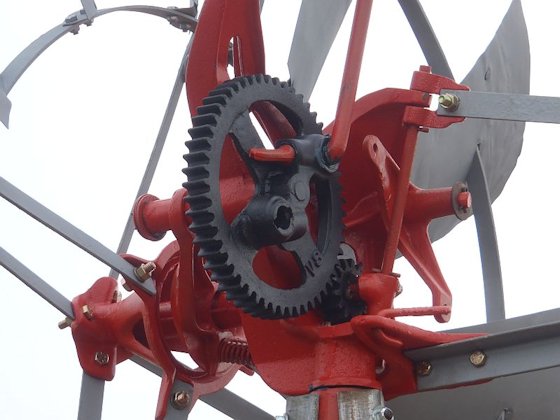

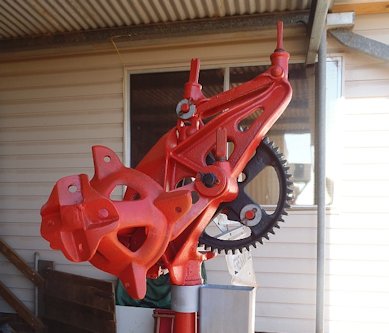

Model K Head

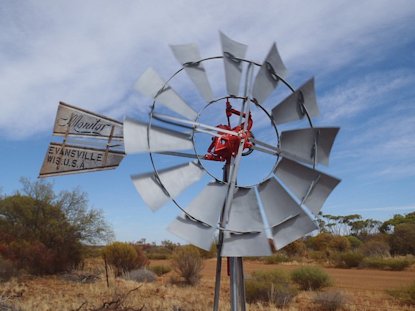

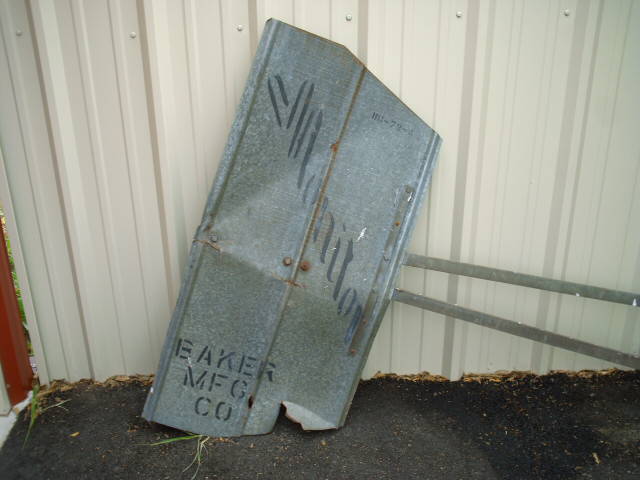

WC Vane


Early WC Vane


WC Head


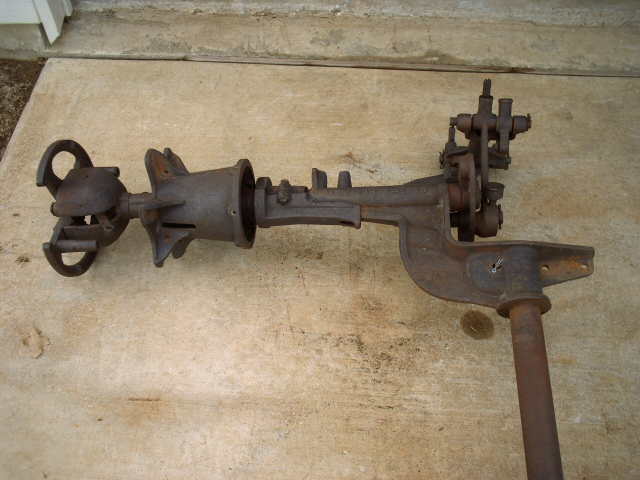

Vaneless  Model L Head


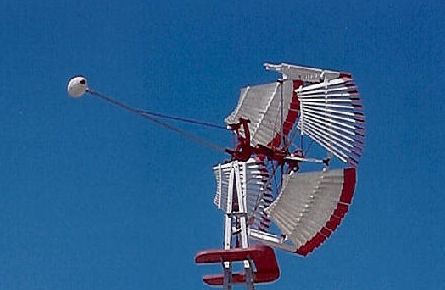

Model L


Self Oiling Style C "Hambone" Head

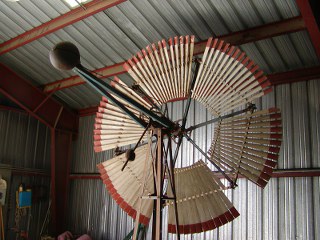

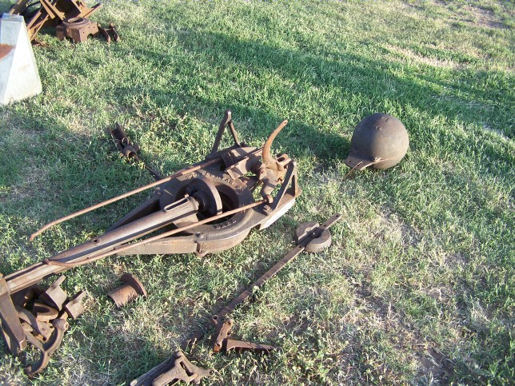

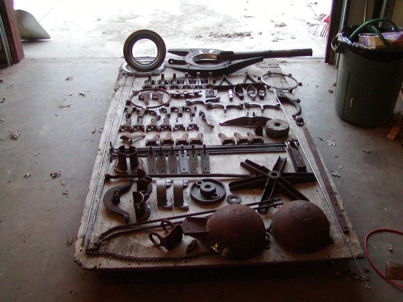

Original Vaneless Model A Parts


Original Vaneless Model A


Original Vaneless Model A


Original Vaneless Model A


Original Vaneless Model A
Wheel Hardware

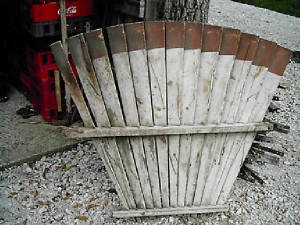

Original Vaneless Model Wheel Section

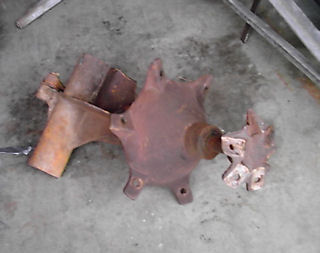

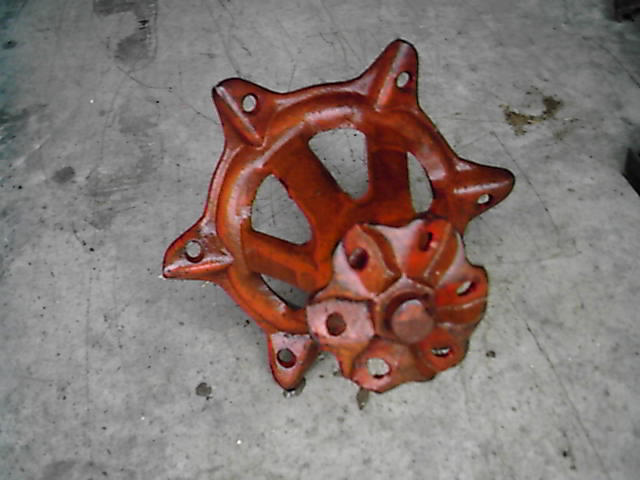

Model K Hub

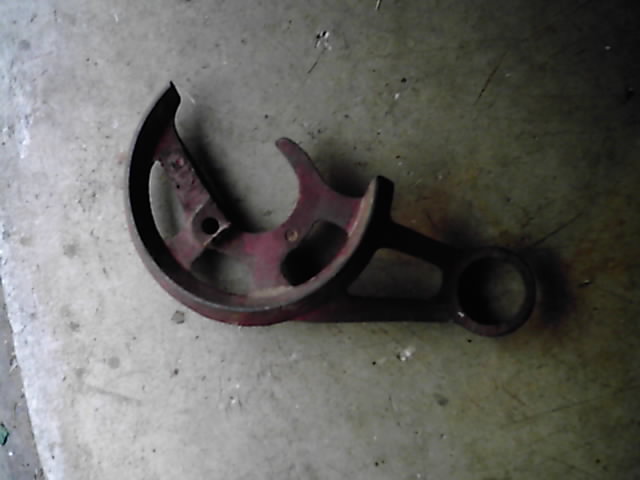

Model K Brake Casting

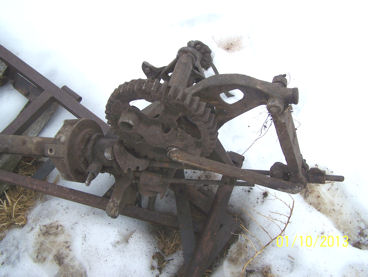

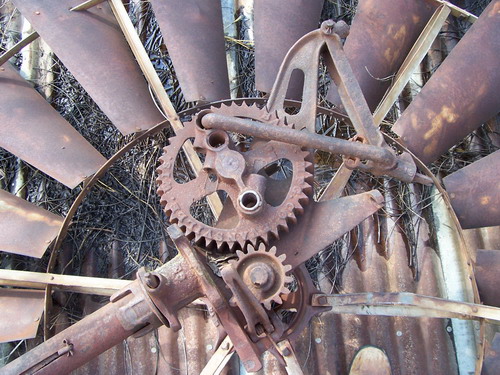

Model E Head


Model E Head


Model E Head


Model E Head


Early AC 6 Section Hub


Model E Hinge & Latch

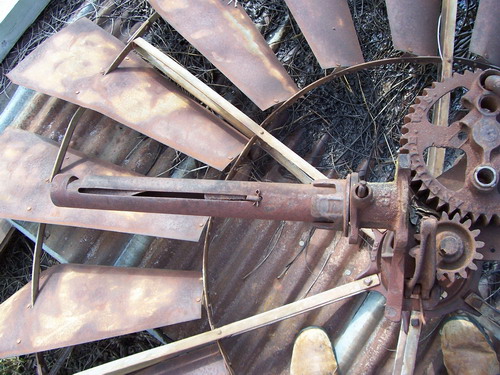

Model E Slotted Mast


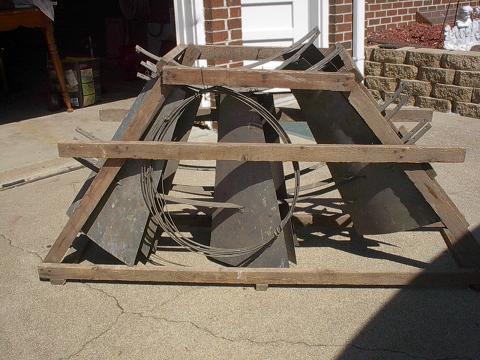

Factory Crated WB Wheel (original)


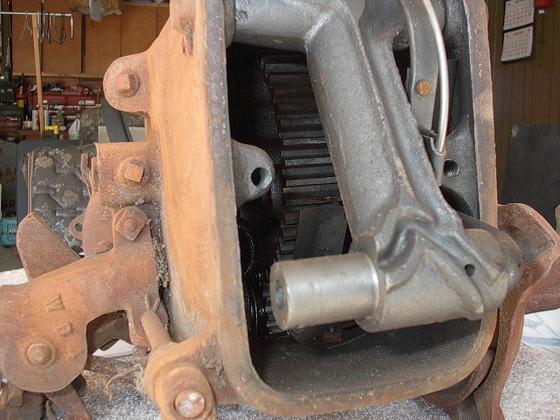

A Look Inside A WB

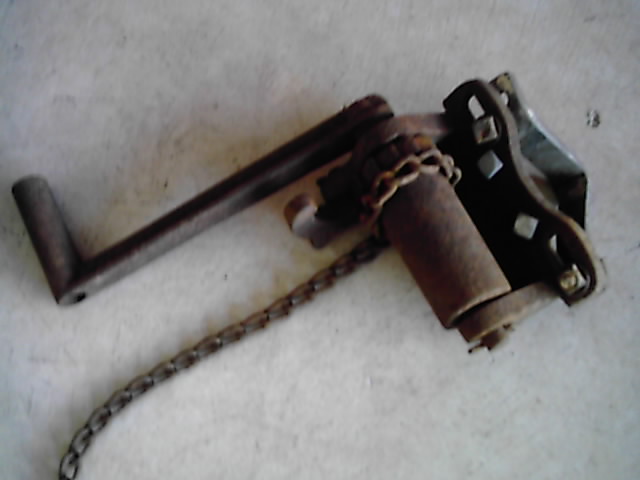

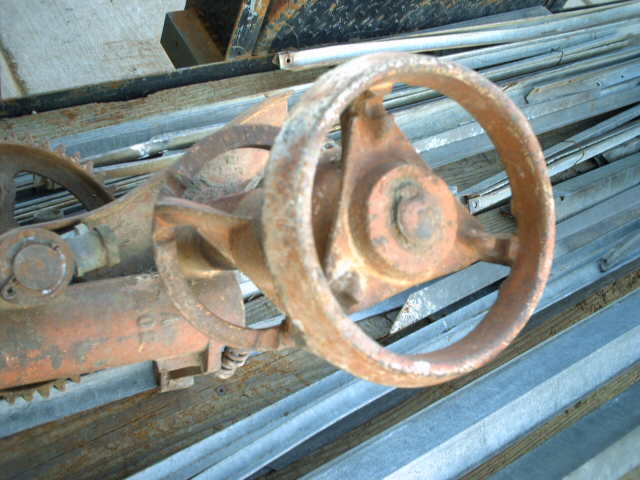

Rare Monitor Furling Winch


Model S Hub


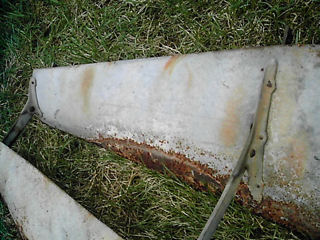

Model S Sail & Mallable Braces

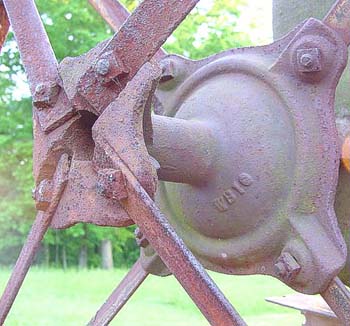

WB Hub

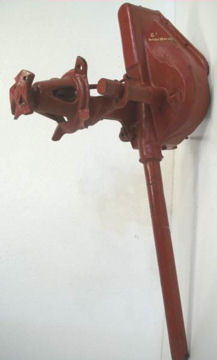

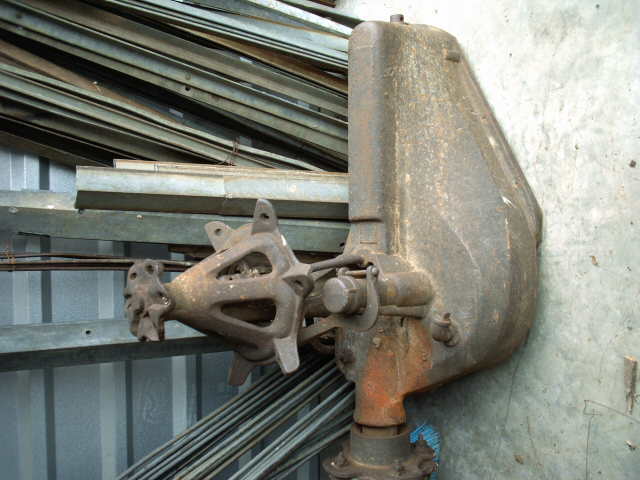

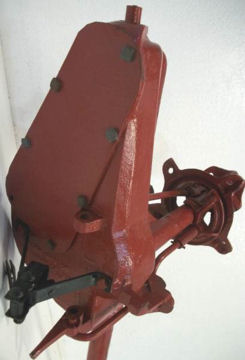

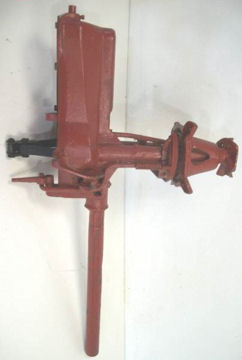

6.5ft Hambone Motor


6.5ft Hambone Motor


6.5ft Hambone Motor


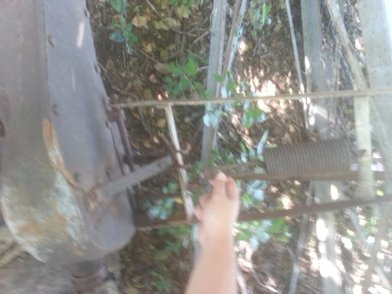

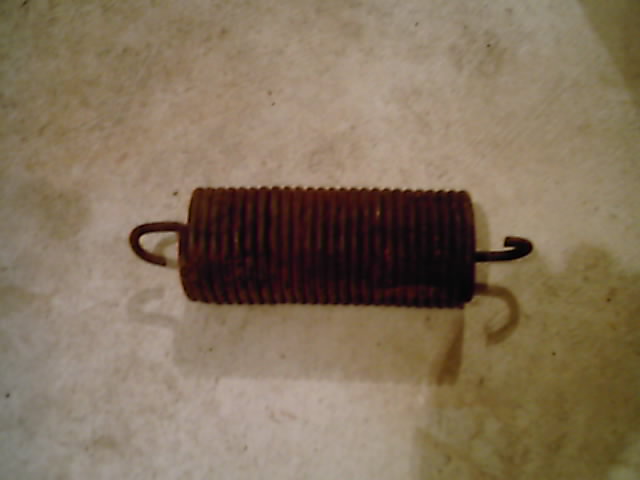

Hambone Spring


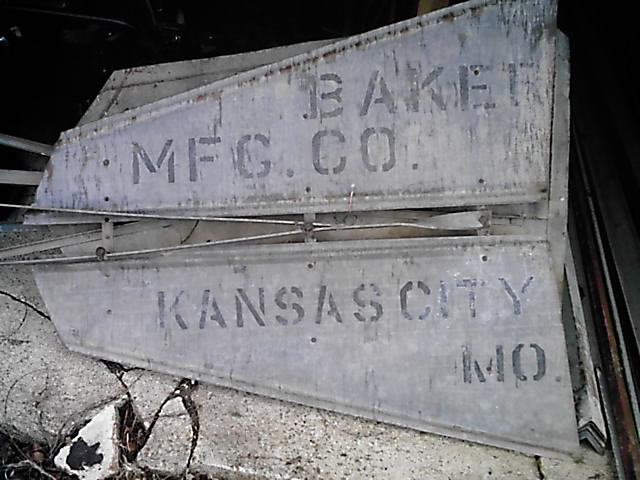

Hambone Vane


Hambone Gov. Spring & Clevis


AC/Early WC Tower Cap, Race & Stay

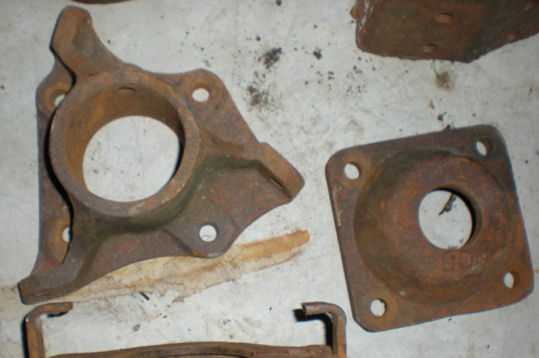

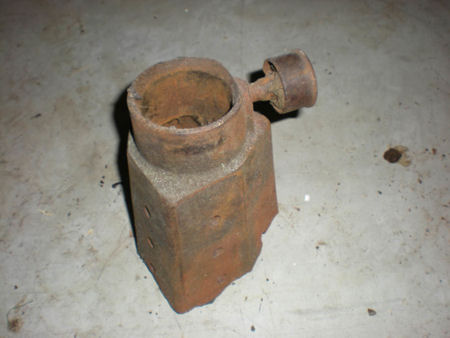

AC/Early WC 3 Post Tower Cap


AC/Early WC 3 Post Tower Trueing Center & Mast Race Cup

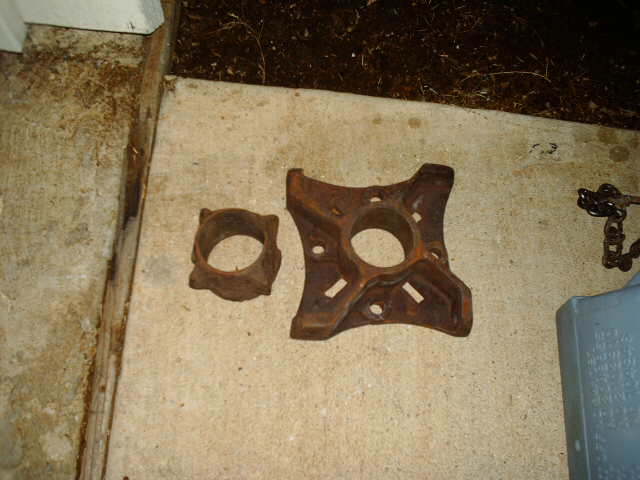

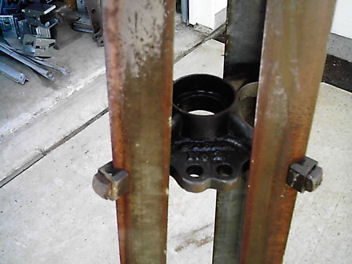

Hambone Tower Cap & Storm Stay


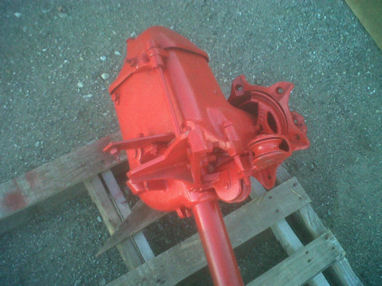

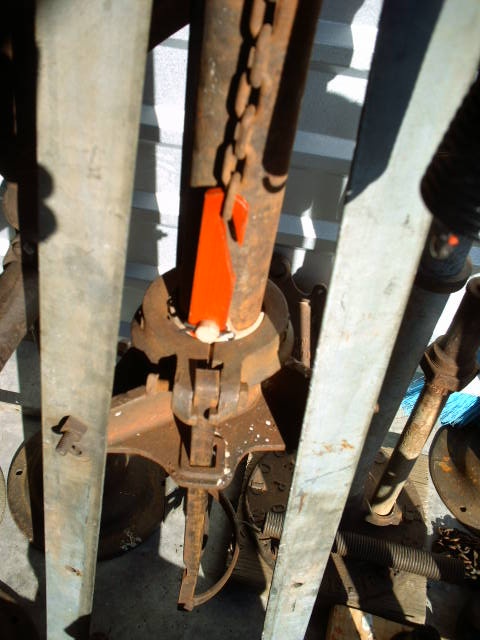

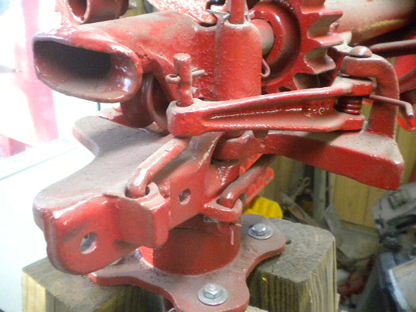

WC Pull-Out Assembly

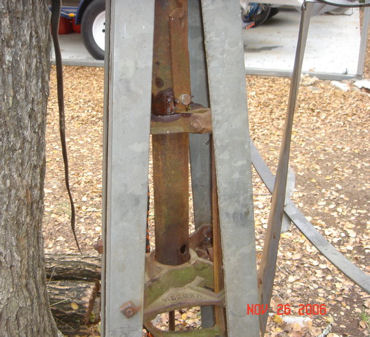

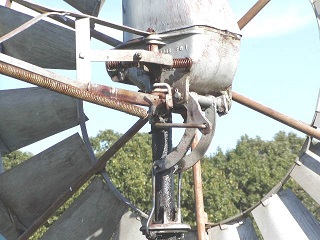

WB/WC Pull-Out Assembly


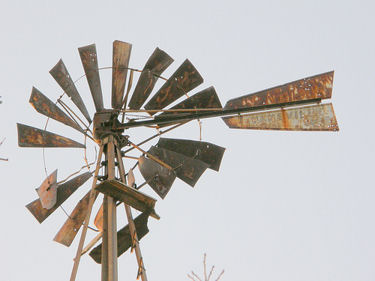

12ft WE

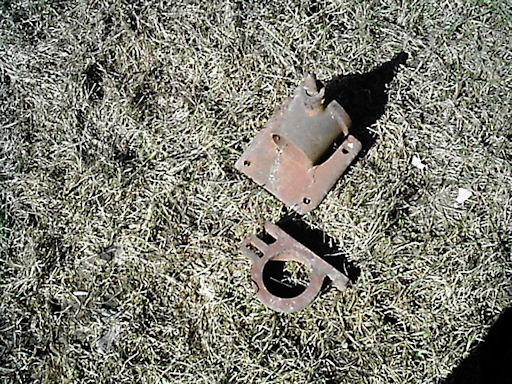

Early Pole Mount Tower Cap, Etc.


Rare "Pull-Out" Style WC

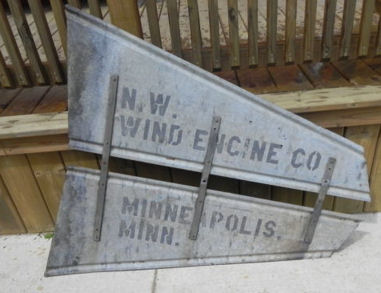

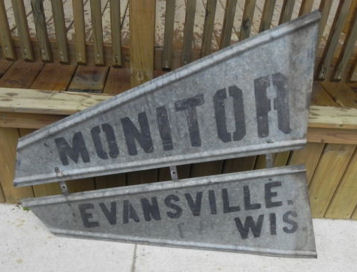

NW Wind Engine Model K Variant Vane Side 1


NW Wind Engine Model K Variant Vane Side 2


Model V Head


Model X Sail Brace


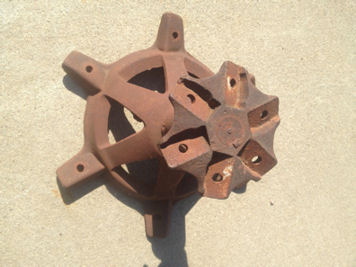

Model X Hub & Spider


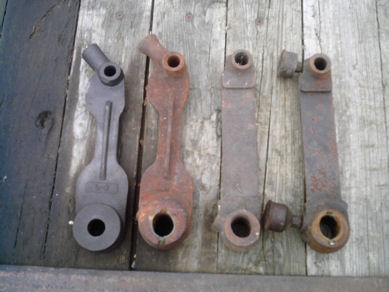

Monitor L Pitmans, 4 of 5 Styles


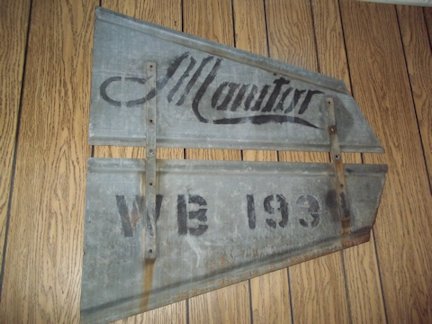

Early WB Vane


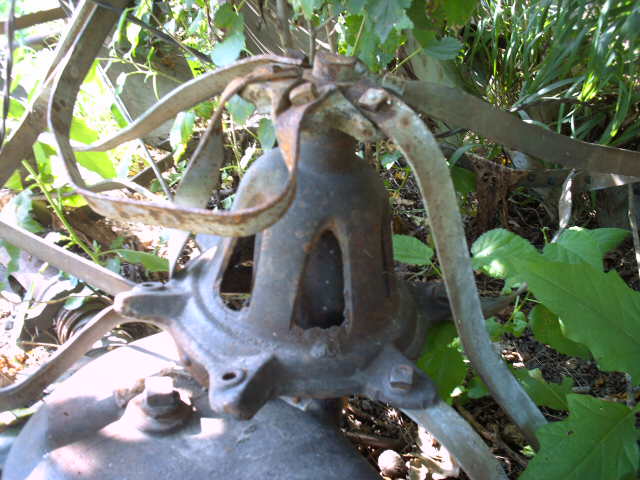

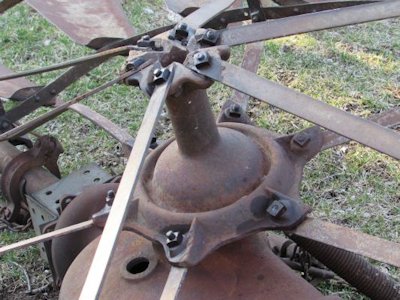

5 Section WC Hub


Early WC w/ 6 Section Wheel Hub

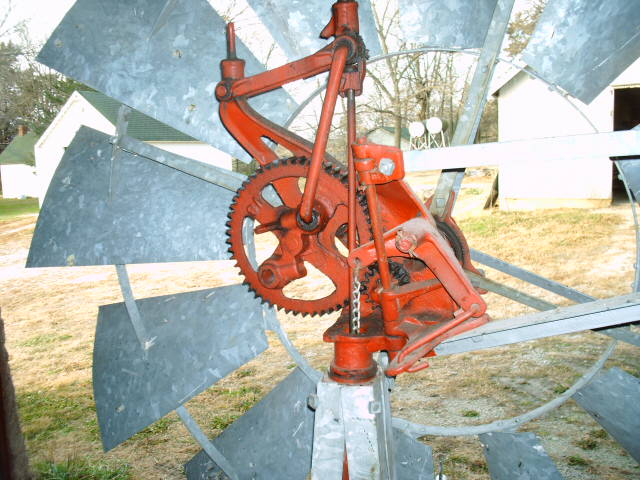

5ft Monitor V


5ft Monitor V


5ft Monitor V


8ft WC Tower Race & Storm Stay


Model L

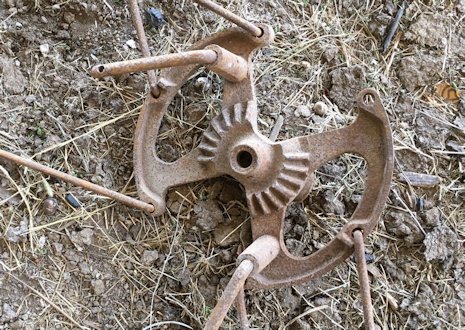

Model L Shipper Spider

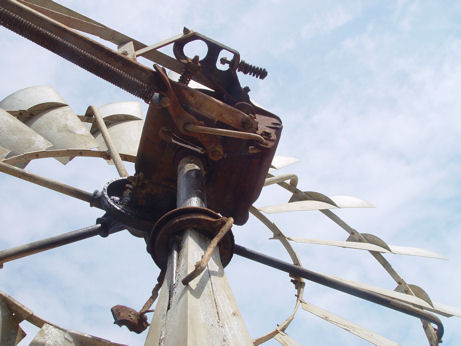

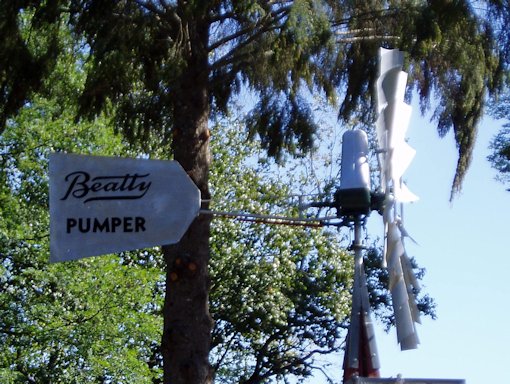

Beatty Pumper

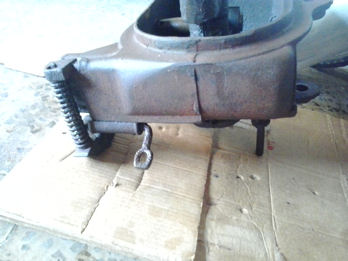

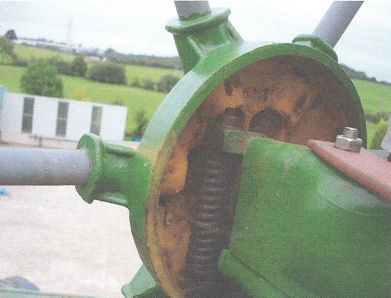

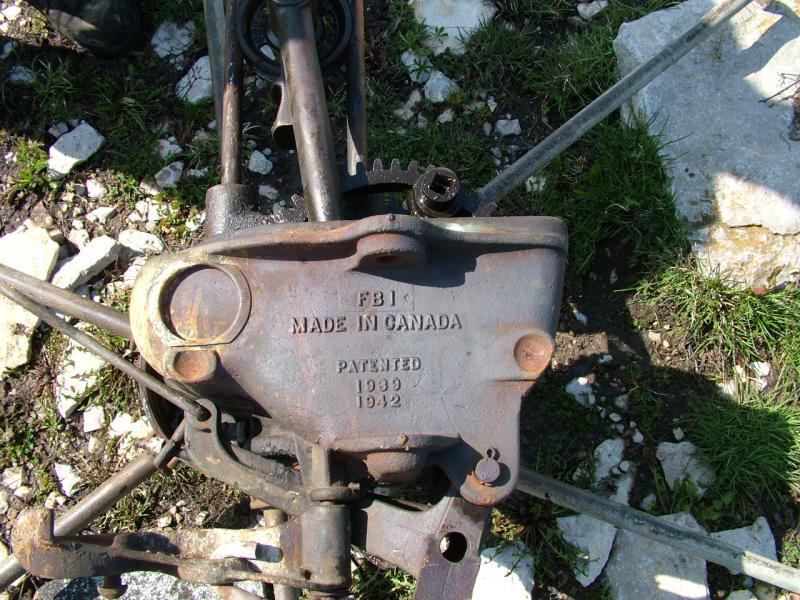

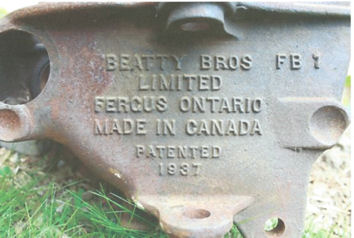

Beatty Pumper Case
Beatty Pumper Case


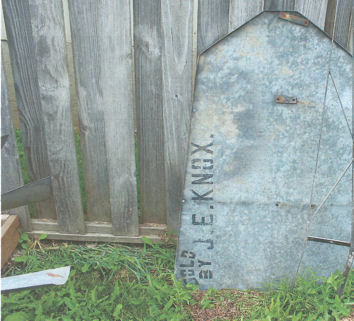

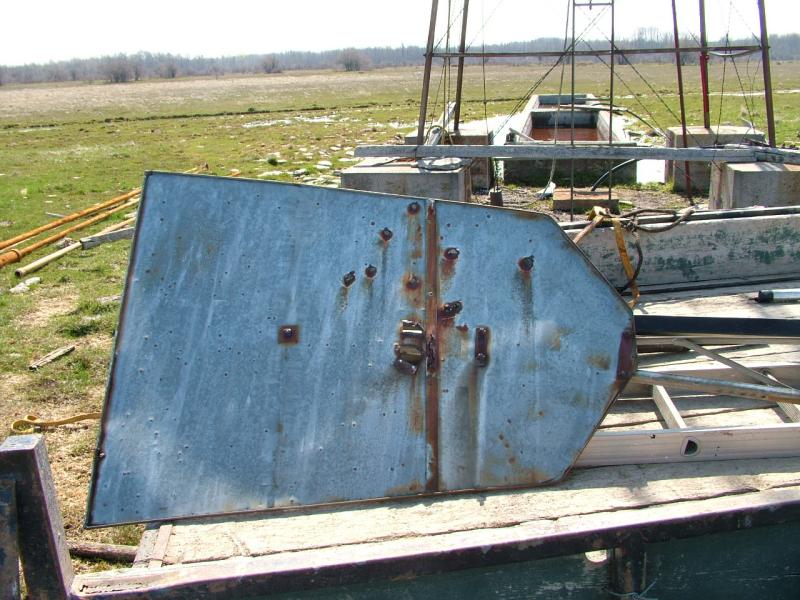

Beatty Pumper Vane


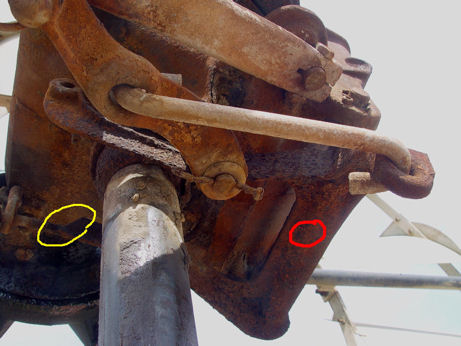

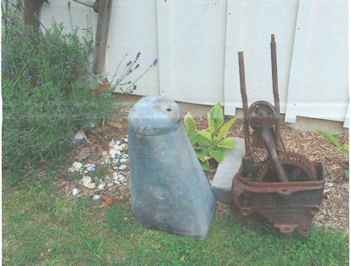

Case, Buffer & Furling Components


Furling Components


8ft Mill

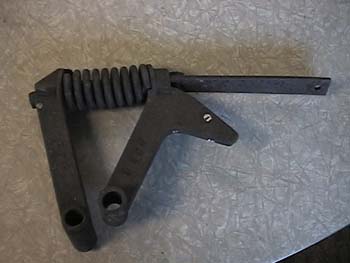

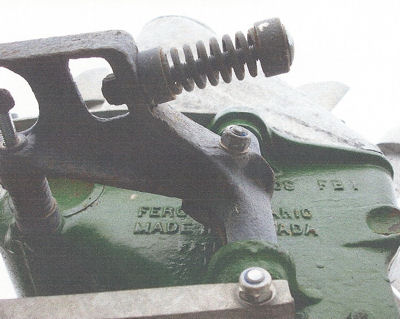

Buffer


Hub & Spokes

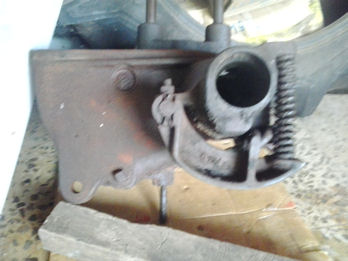

 Brake Assembly


Brake Lever

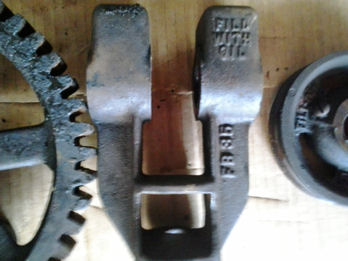

Pump Rod Yoke


Large Gear


Bonnet

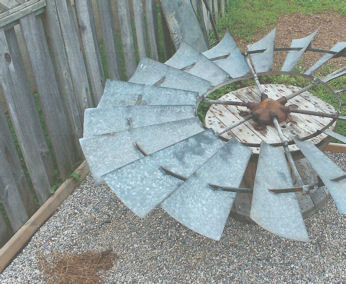

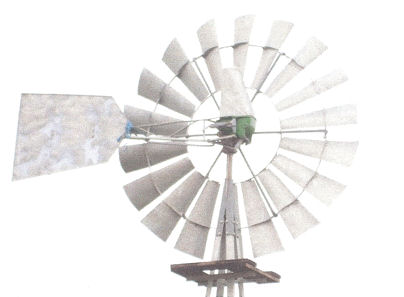

Beatty Pumper

8ft Wheel, Hub & Spokes


8ft Vane & Stem


8ft Pull Out Assembly

8ft Beatty Pumper

Breyer Bros, Whiting & Co.

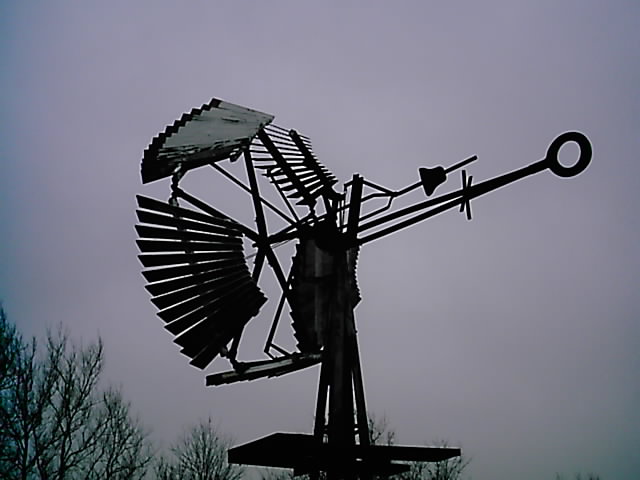

Ozark

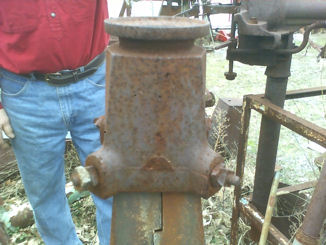

Ozark Tower Cap

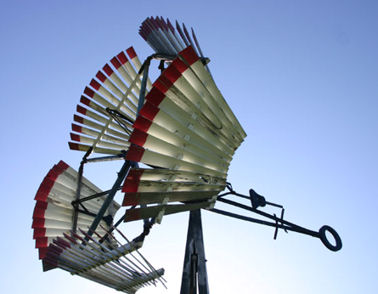

10ft  Vaneless

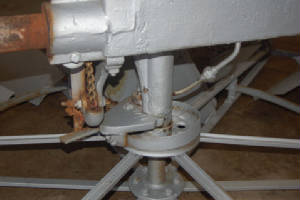

King Hub, Spider, Channel Iron Spokes


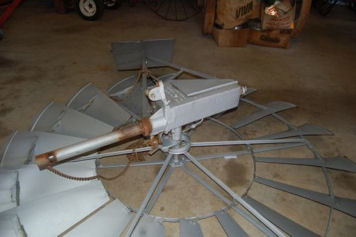

8ft King Self Oiling

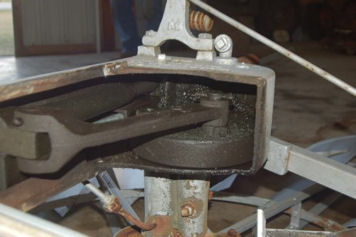

King Internal Gear & Pitman

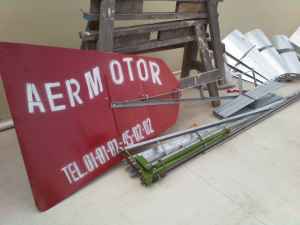

Brisa


Mexican Made

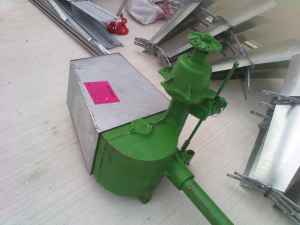

Challenge 27/ Aermotor Hybrid


Mexican Made
Challenge 27/ Aermotor Hybrid


Mexican Made
Challenge 27/ Aermotor Hybrid

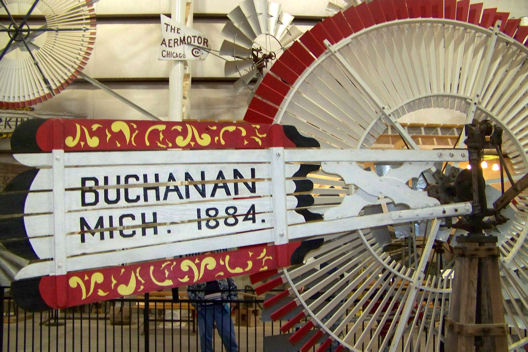

Buchanan

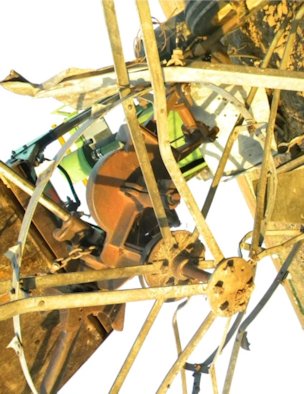

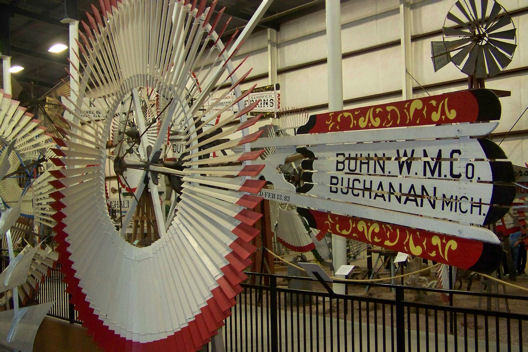

Pumping Solid Wheel Mill

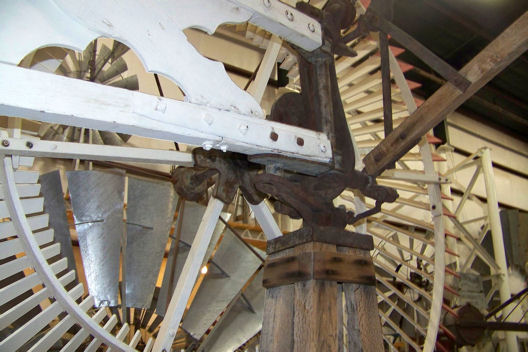

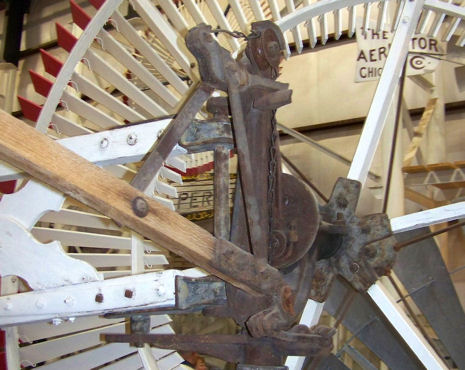

Head


Vane

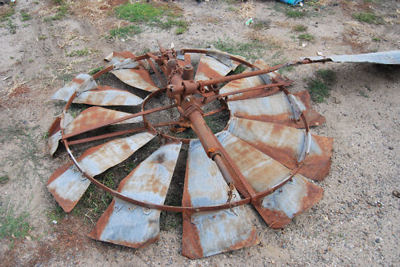

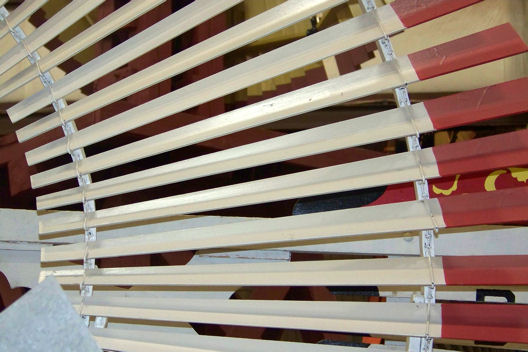

Unique Wheel Construction


Vane Hinge & Govenor Arm
.

Butler

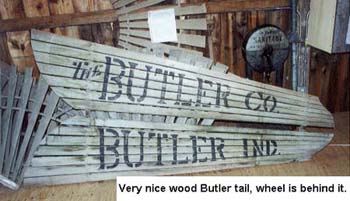

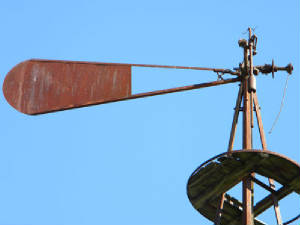

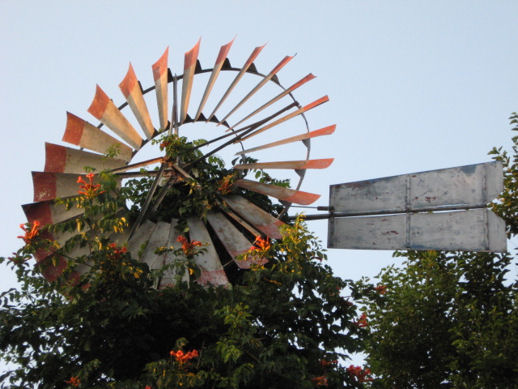

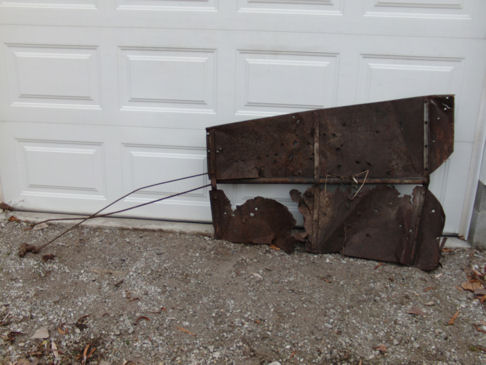

Vane from a Solid Wheel

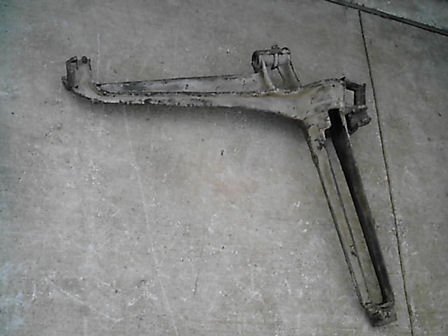

Junior Main Frame


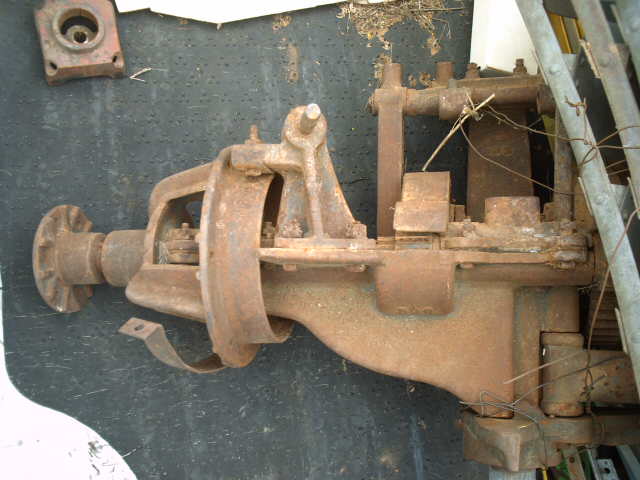

Double Gear Head

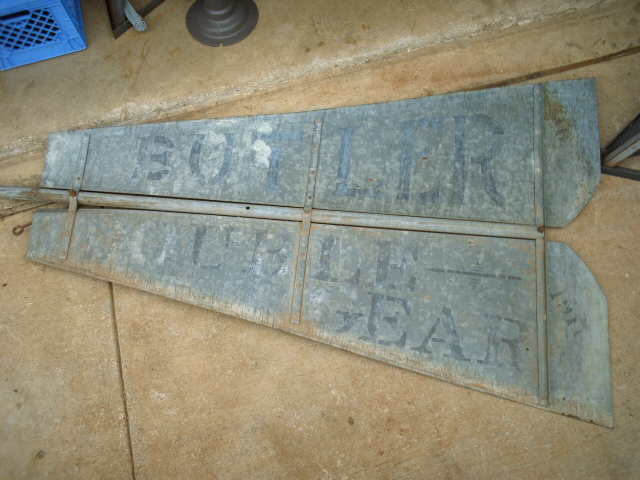

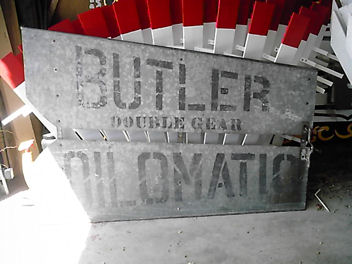

Double Gear Vane


Oil-O-Matic Model Vane


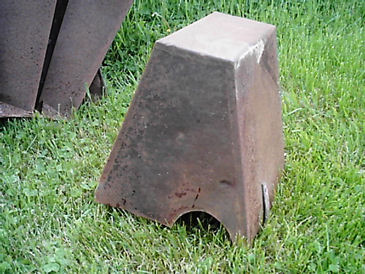

Bonnet


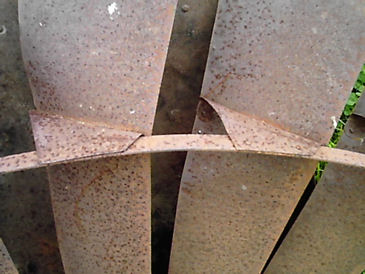

Sail Braces

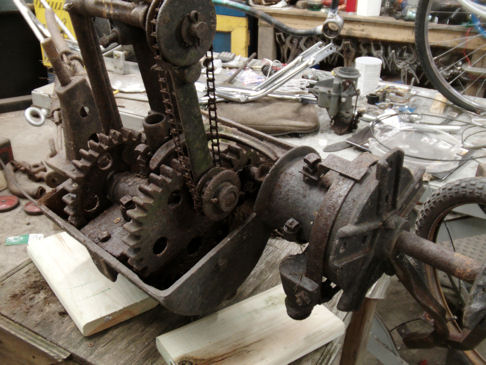

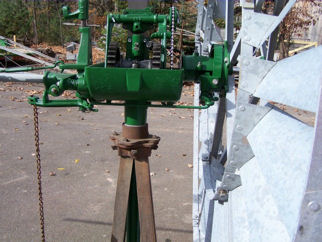

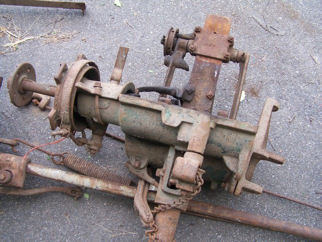

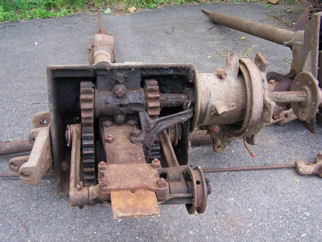

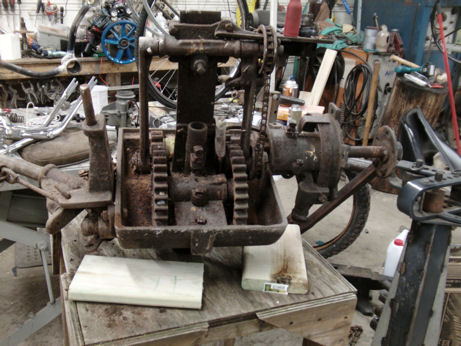

8ft Oilomatic Motor


10ft Oilomatic Motor


8ft Oilomatic Motor

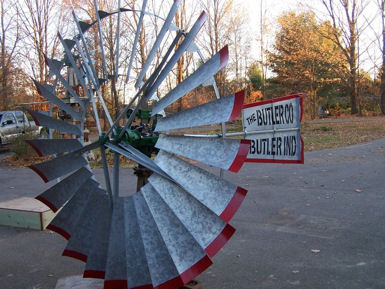

Oilomatic Model


8ft Oilomatic Assembled Head


Vane for 8ft Mill


10ft Oilomatic Motor
(chain oiler version)


Vane Used on Oil Bath Models


10ft Oilomatic Motor
(chain oiler version)

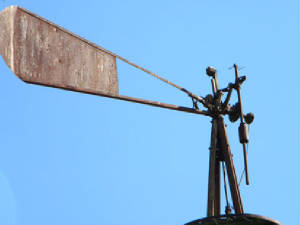

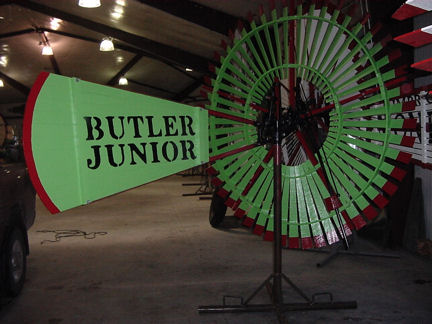

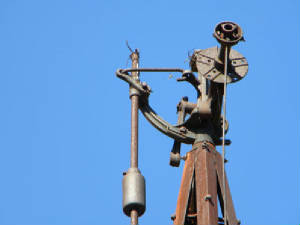

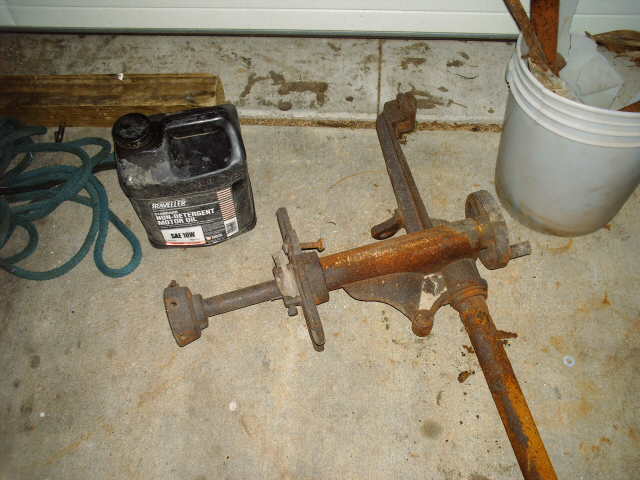

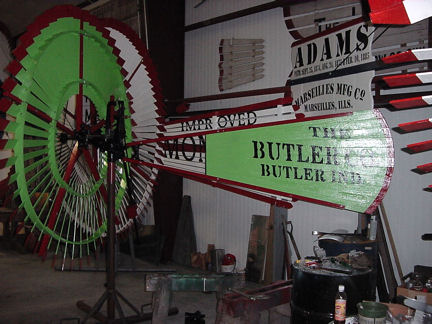

Butler Junior


Butler Junior

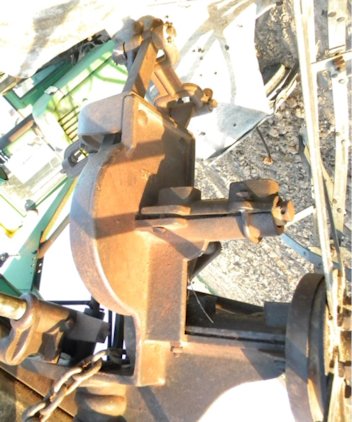

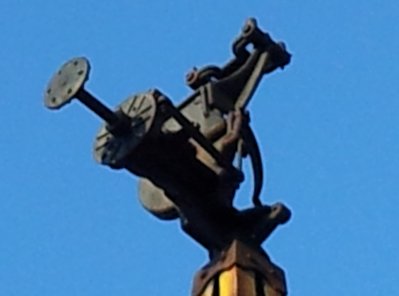

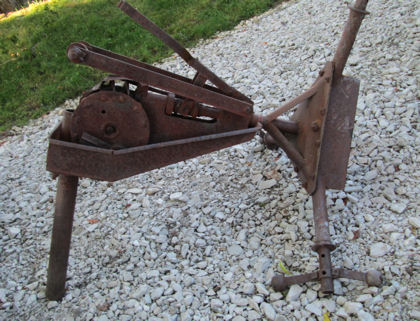

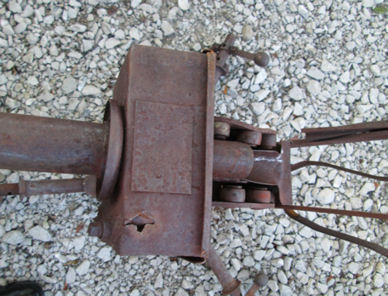

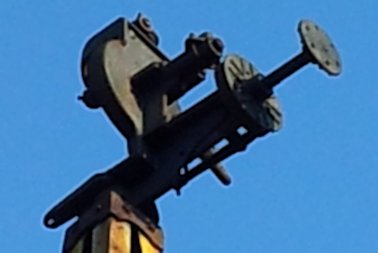

8ft Steel Back Geared Head


8ft Steel Back Geared Head


8ft Steel Back Geared Head


8ft Steel Back Geared Head


8ft Steel Back Geared Head


8ft Steel Back Geared Head


8ft Steel Back Geared Head

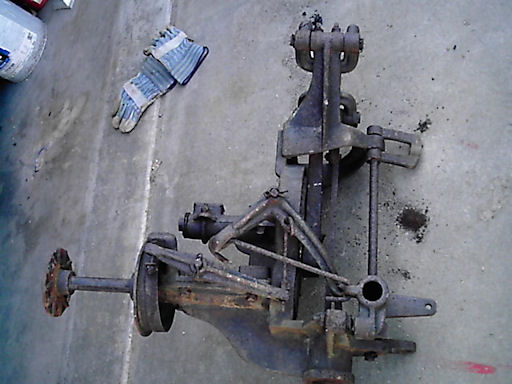

Steel Butler JR.


Steel Butler JR.


Steel Butler JR.

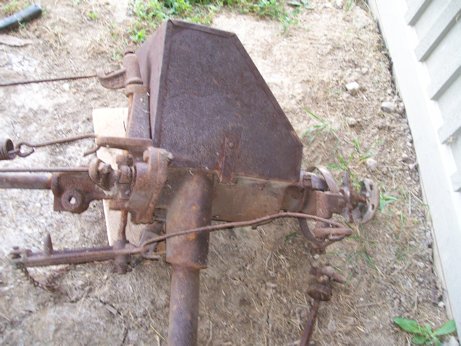

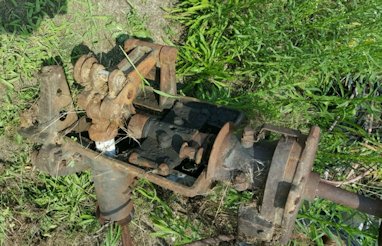

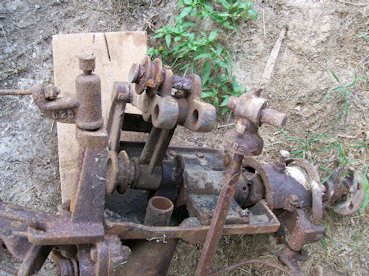

Direct Stroke Oil-O-Matic


Direct Stroke Oil-O-Matic


Direct Stroke Oil-O-Matic


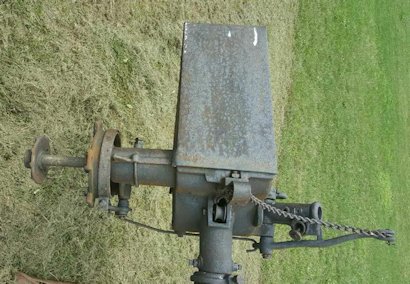

Defiance Oil-O-Matic Model 30


Defiance Oil-O-Matic Model 30


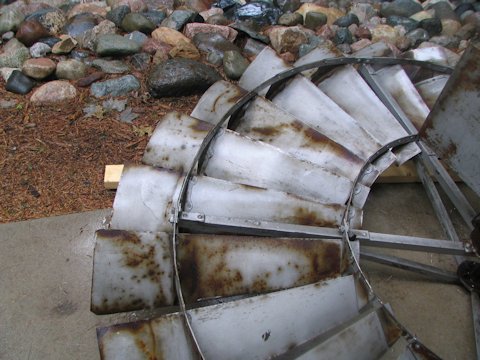

Oil-O-Matic Sails, Clips & Spokes
