Mill Identification C to D

Additional pictures were added to this page on 5/3/13.

One of the most fun aspects of acquiring and restoring a windmill is the treasure hunt itself. The "hunt" often includes identification of remants or partial mills as many are acquired as gifts from relatives, neighbors or friends or purchased from local farmers and ranchers cleaning out years of accumulation. As a result we are often contacted to assist in the identification of a mill as knowing its manufacturer, model designation and size are important first steps towards finding parts for its restoration.

While some mills, like those made by R.G. Marcy as the Red Star or Kenwood, were copies of those made by other prominent manufacturers, most mills have unique visual characteristics beyond part casting numbers. Windmill manufacturers were always looking to create a special feature or uniqueness that would seperate them from their competitors and attract new buyers. Others did it to insure their place in future sales of replacement parts. Sometimes it was the shape of the tail vane, or the shape of the bonnet. Perhaps it was a sail brace/clip, wheel arm or the configuration of the wheel hub that the manufacturer thought made their mill "the best".

We have created this website page as educational help in narrowing your search identifying your lastest acquisition or the parts you are missing. While it is impossible for us to offer pictures of every windmill and its every part, we are hopeful these pictures, along with our other gallery pages, will help confirm your research or what others may have told you about your mill. This page is updated frequently as we acquire additional pictures that fit this format.

All pictures are protected by copyright laws and may not be used without the written permission of Windmill-Part.com or the original source.

Challenge

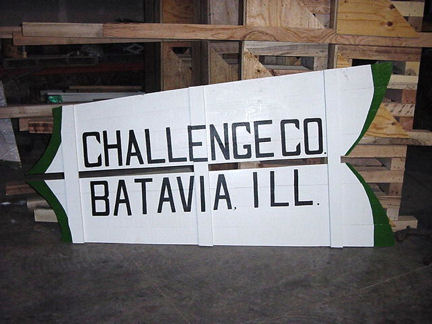

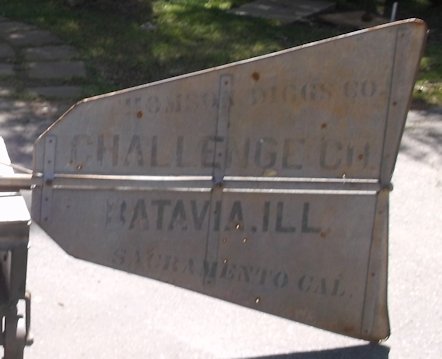

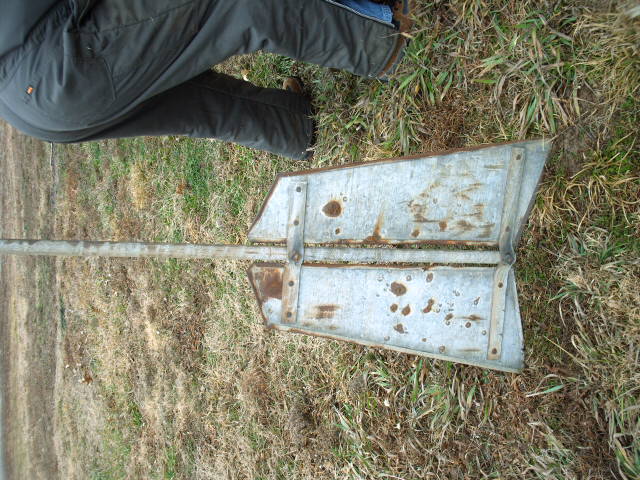

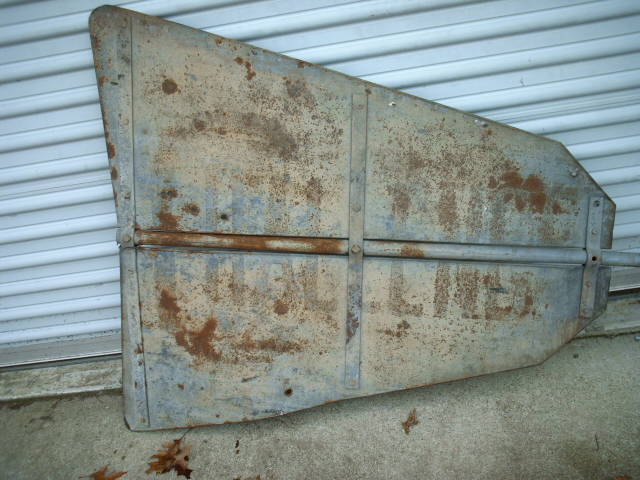

Challenge Steel Vane

Challenge Steel Side Vane

U.S. Challenge 27 Bonnet (late)

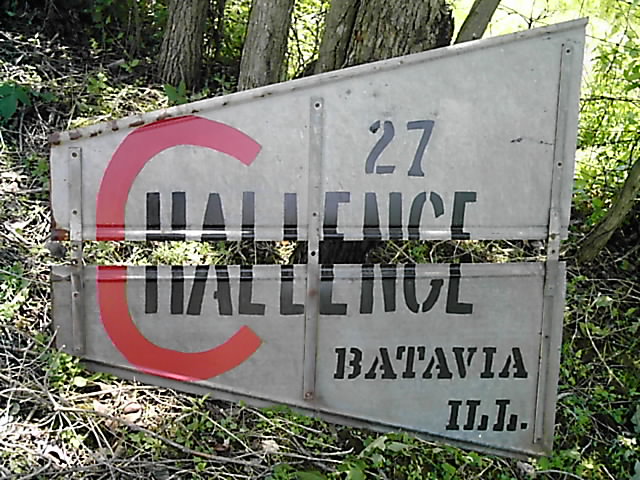

Challenge 27 Vane

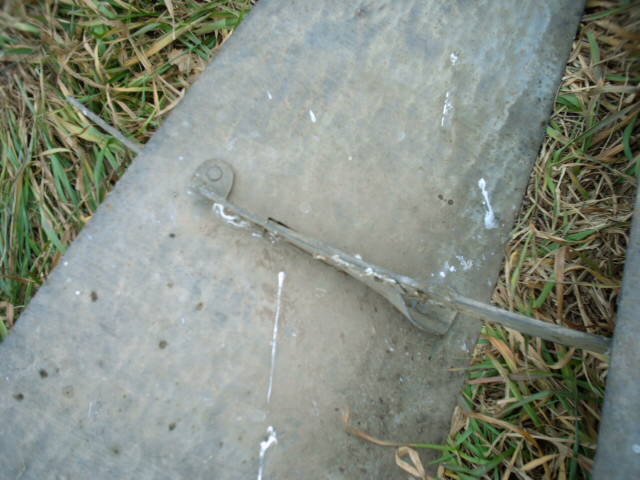

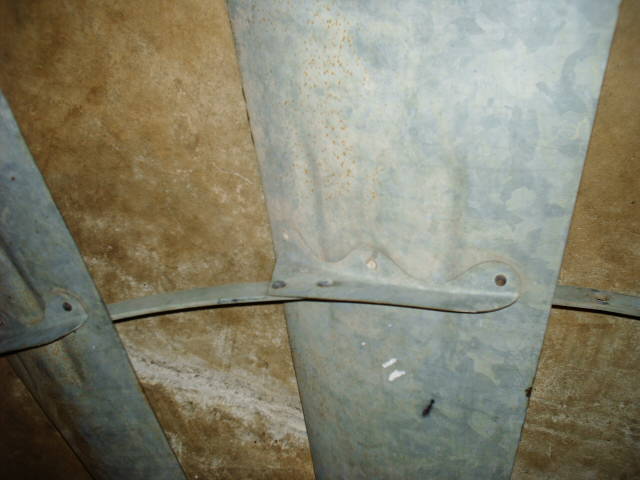

Challenge Sail Brace

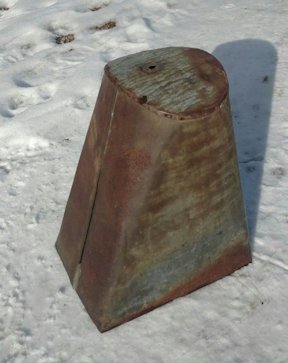

Challenge 27 Bonnet

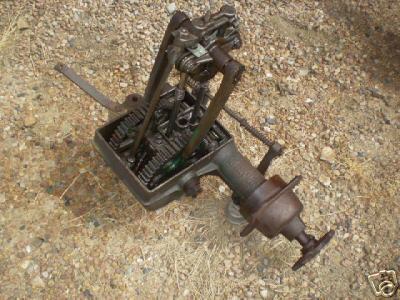

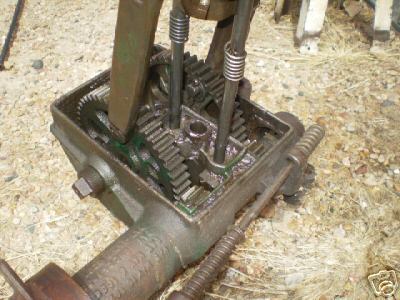

6 3/4ft Model 27 Head


6 3/4ft Model 27 Wheel


6 3/4ft Model 27 Head

OK Wooden Vane

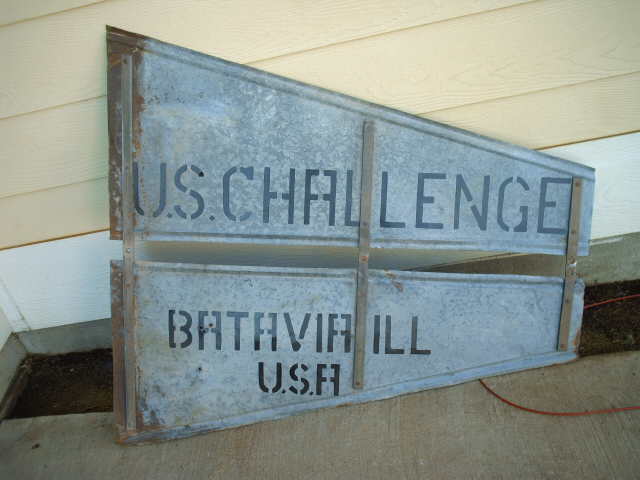

Late U.S. Challenge 27 Vane

8ft Challenge 27 Head

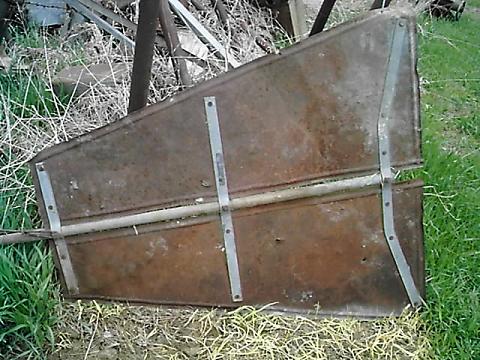

Challenge 24/25 Vane

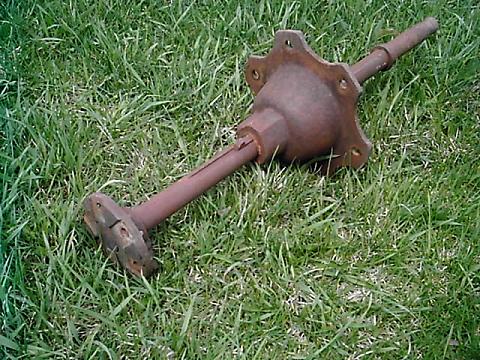

Challenge 24/25 Hub

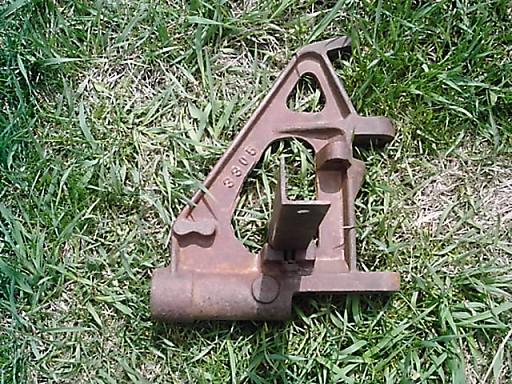

Challenge 24/25 Vane Hinge

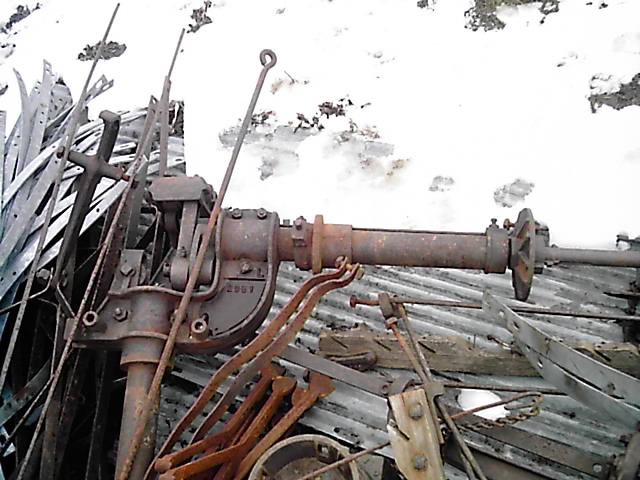

Vaneless Head (Small Spear, Hyatt Bearing Version)

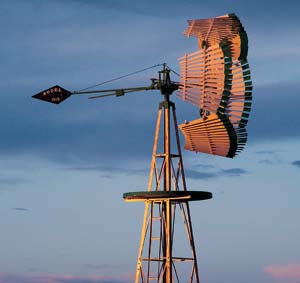

Vaneless (early version)

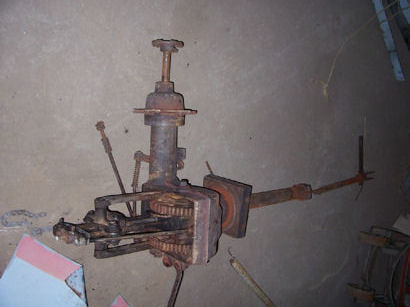

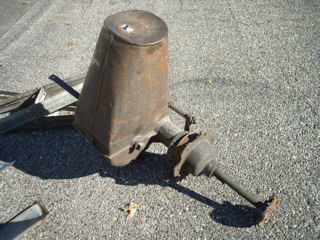

8ft Challenge 27

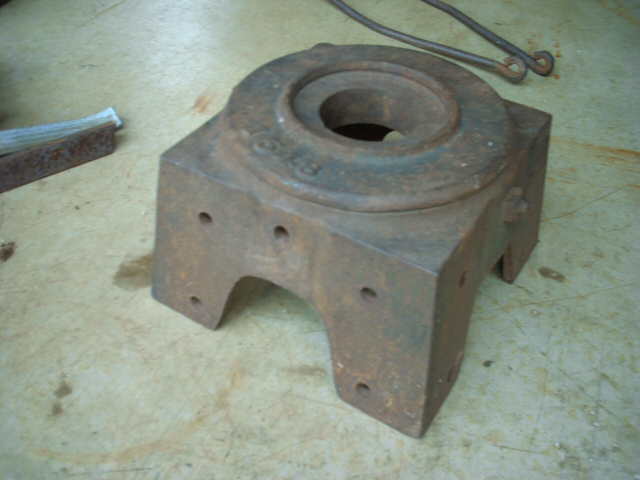

Challenge Steel Tower Cap

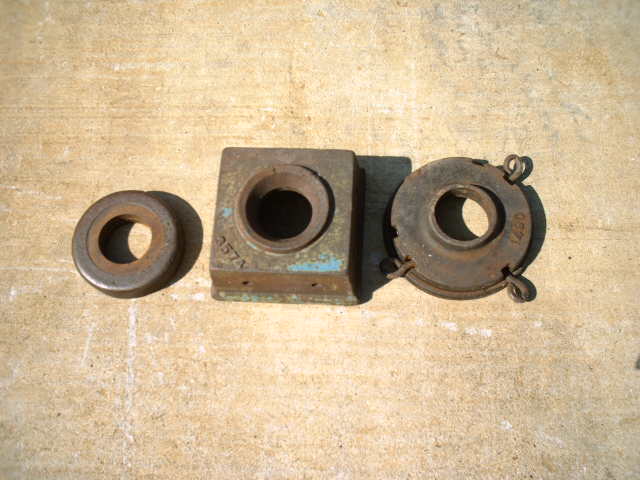

Challenge 27 Tower Cap, Storm Stay & Race

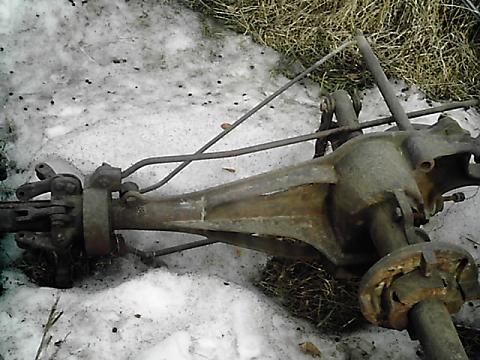

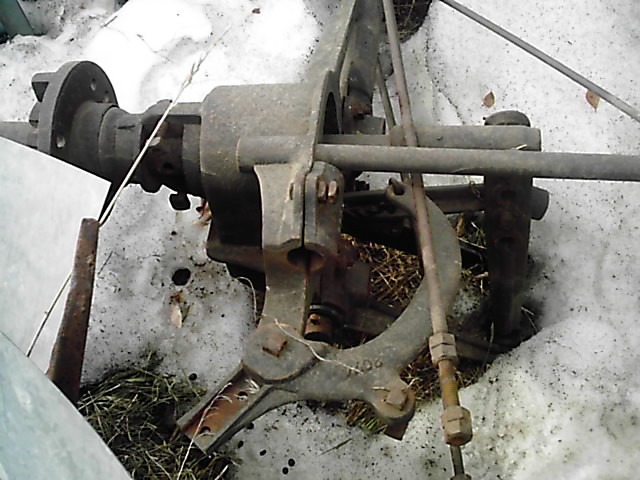

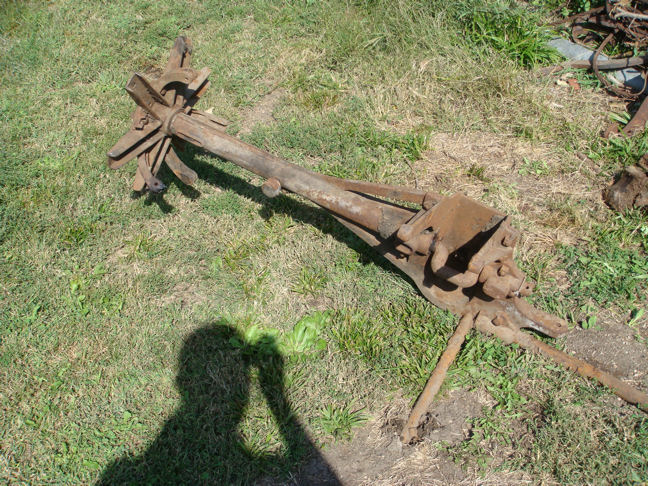

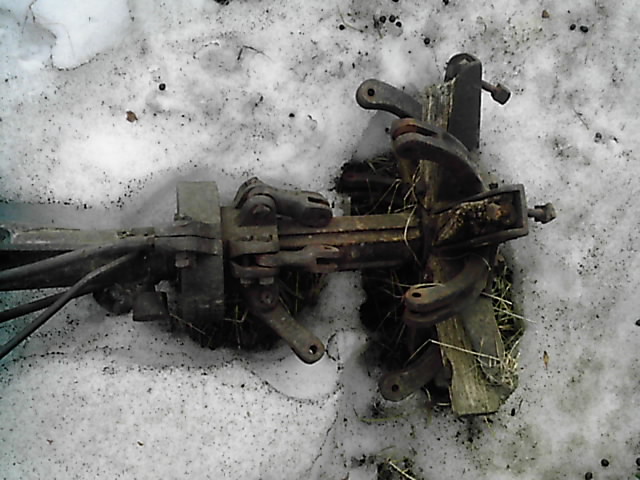

Early Vaneless Main Frame

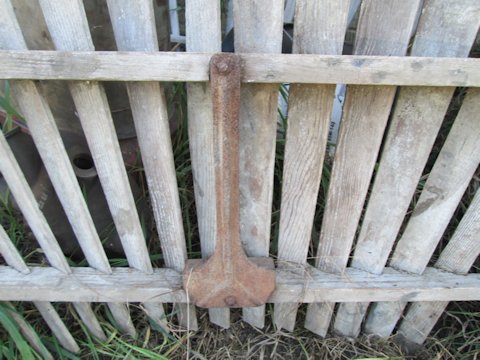

Early Vaneless Hub

Early Vaneless Main Frame

Vaneless Govenor Lever

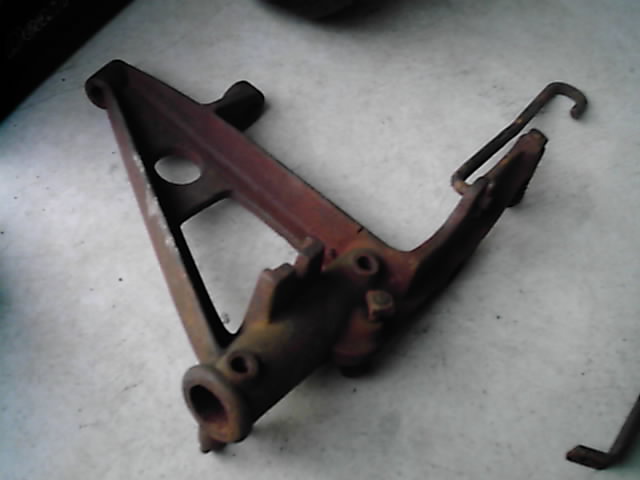

8ft Challenge Steel Vane Hinge

8ft Challenge Steel, Early Babbit Bearing Type

8ft Challenge Steel, Early Babbit Bearing Type

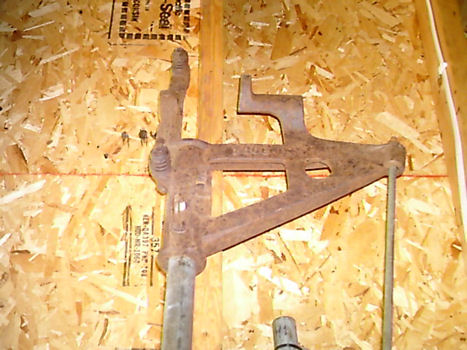

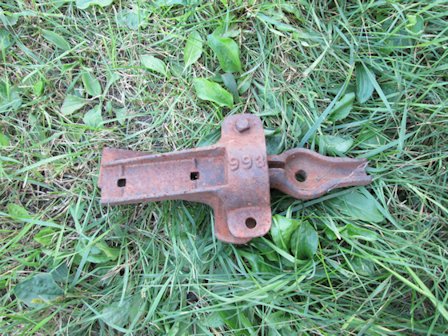

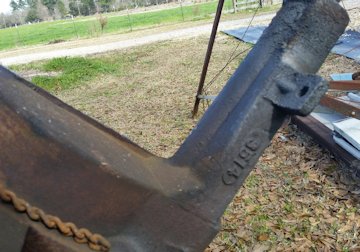

Unusual #1006 Vane Hinge

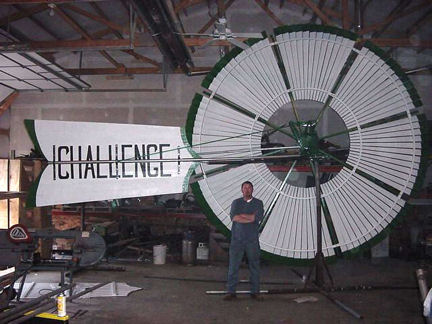

14ft Challenge D.S. Solid Wheel

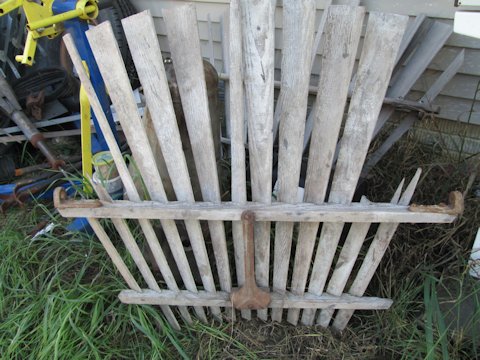

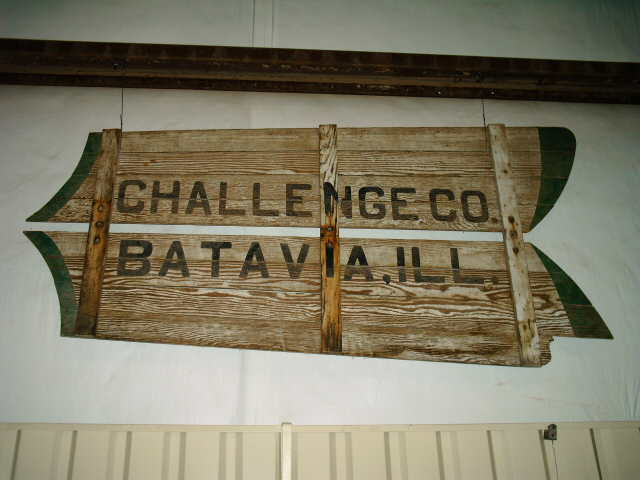

Wooden Vane

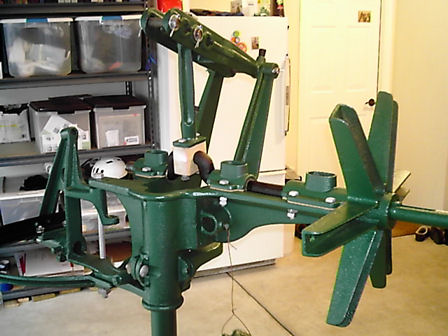

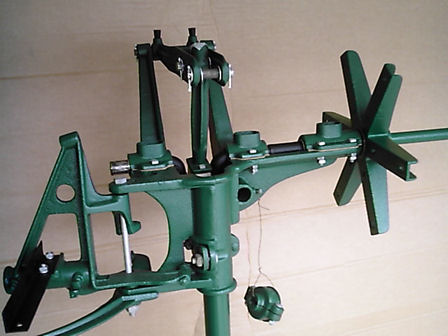

10ft Challenge Direct Stroke Head

10ft Challenge Direct Stroke Head

10ft Challenge Direct Stroke Head

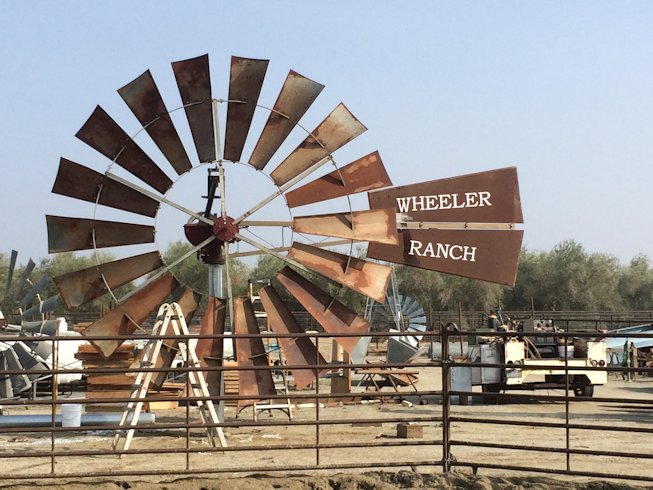

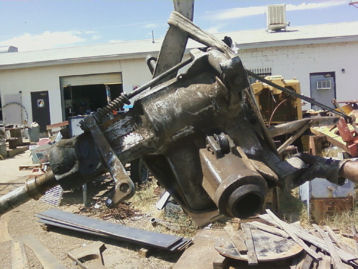

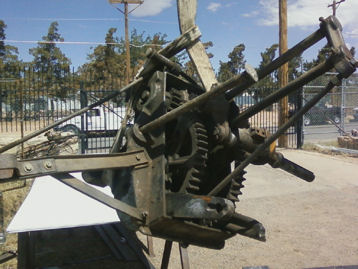

18ft Challenge 27 Head

18ft Challenge 27 Head

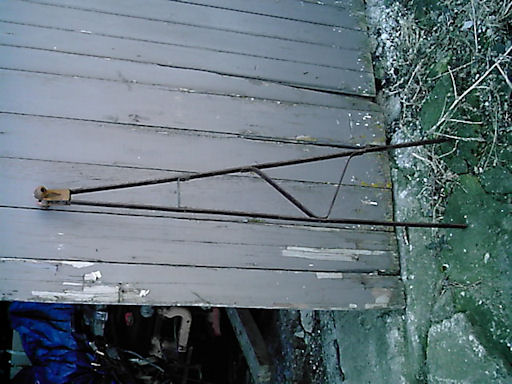

Late Vaneless Model Spoke

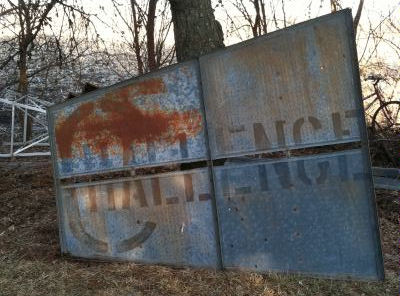

18ft Challenge 27 Vane

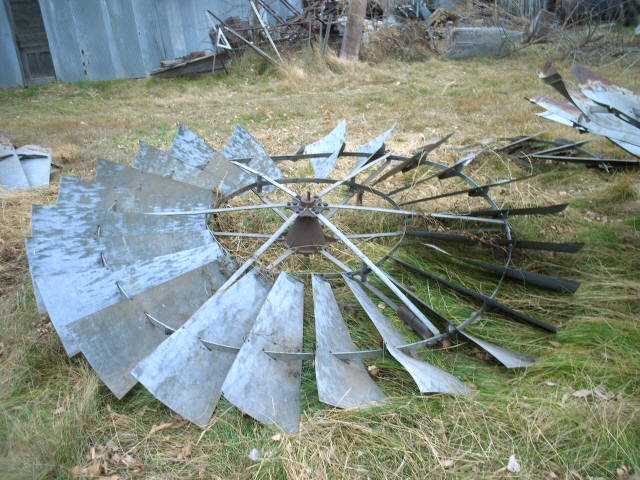

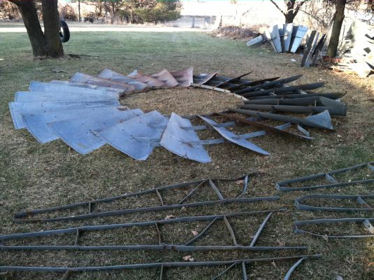

18ft Challenge 27 Wheel & Spokes

8ft Challenge 27 Motor Internals

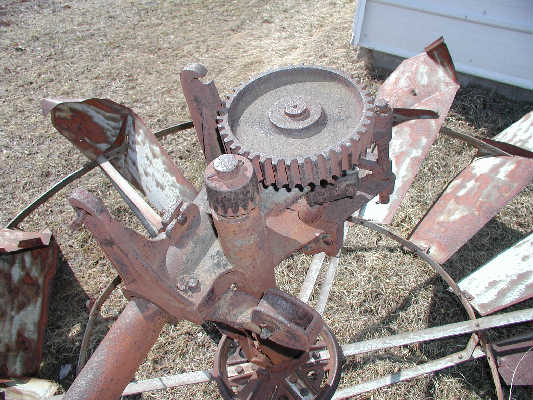

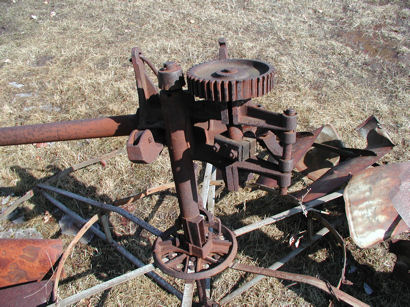

XRAY Head

XRAY Main Frame

XRAY Spiders & Spokes

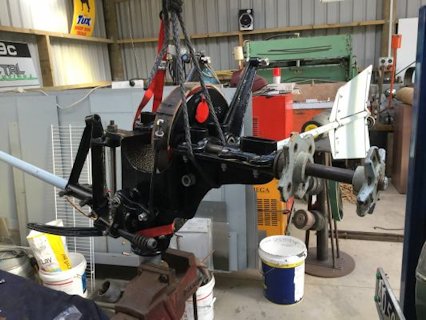

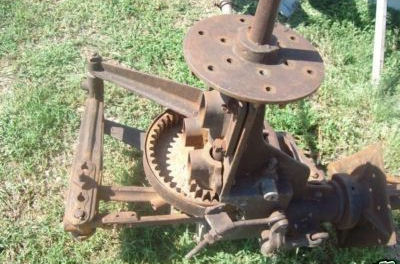

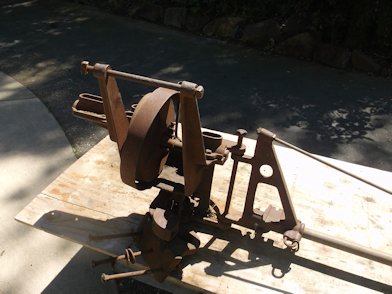

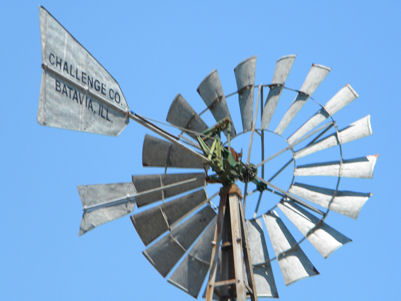

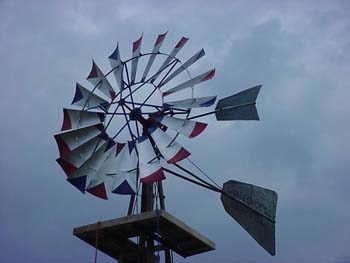

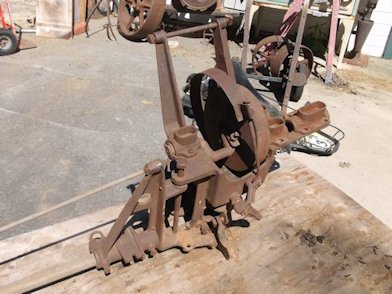

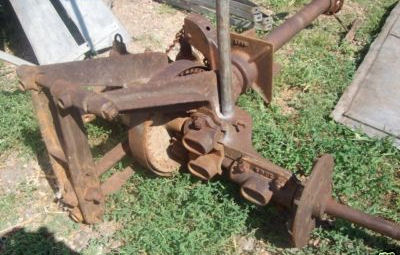

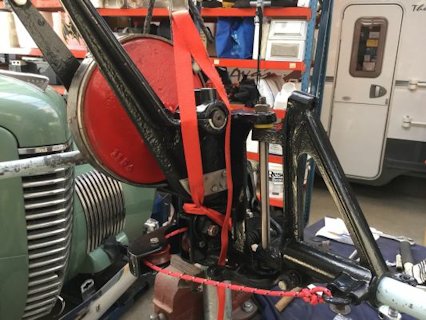

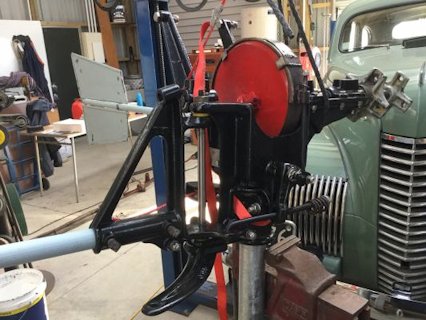

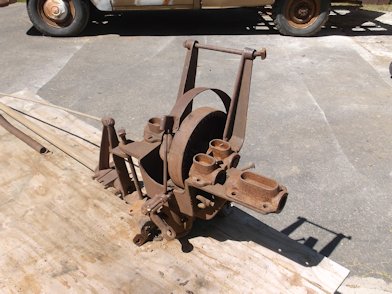

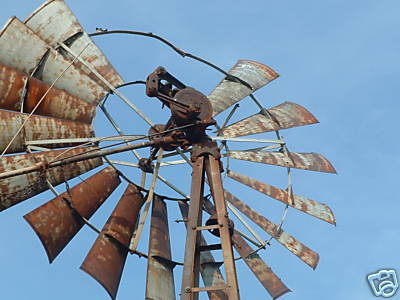

Challenge Steel

Challenge Steel

Challenge Steel, Late Hyatt Bearing Type

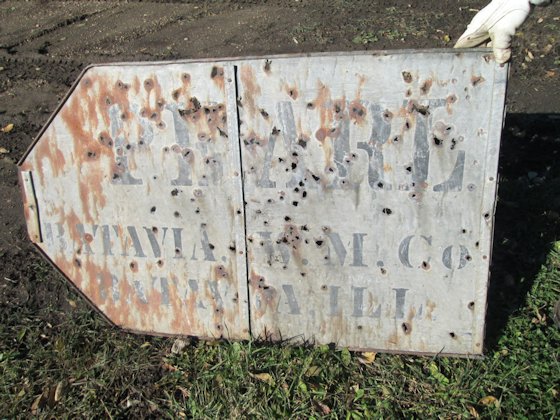

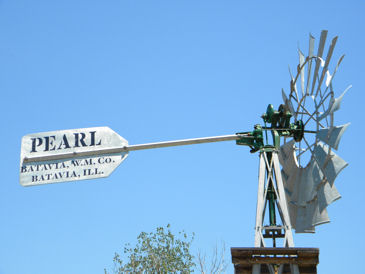

Pearl

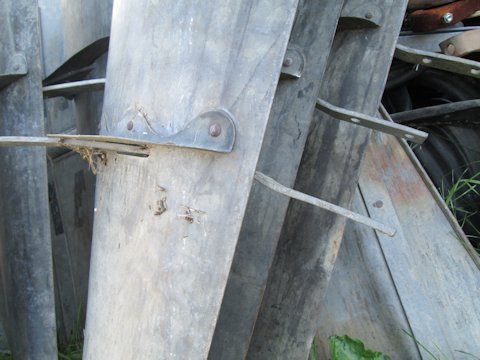

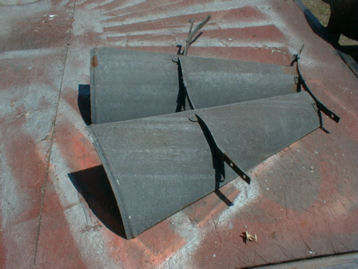

Early Pearl/Dandy/Challenge Wheel Section w/ Unique Sail Brace

Pearl

Pearl Motor

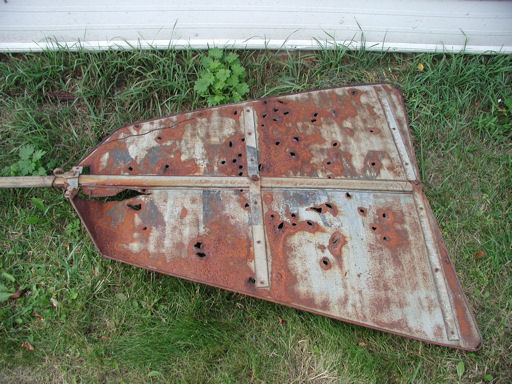

XRAY Vane

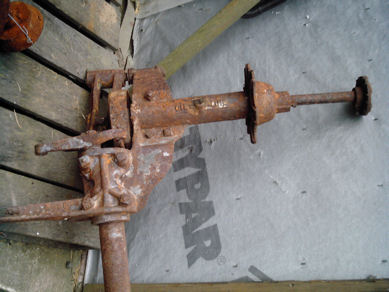

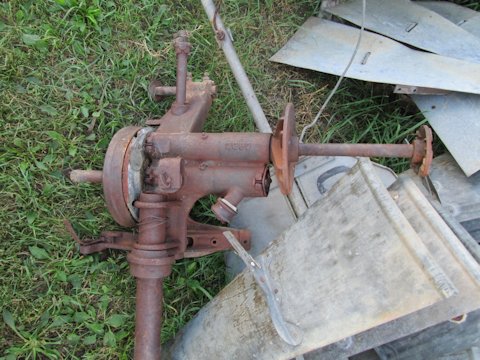

8ft Challenge 23 Motor

Champion

Sears & Roebuck Champion Head w/Vane

8ft Champion Head (Stover M)

Champion Vane & Stem (Stover M Version)

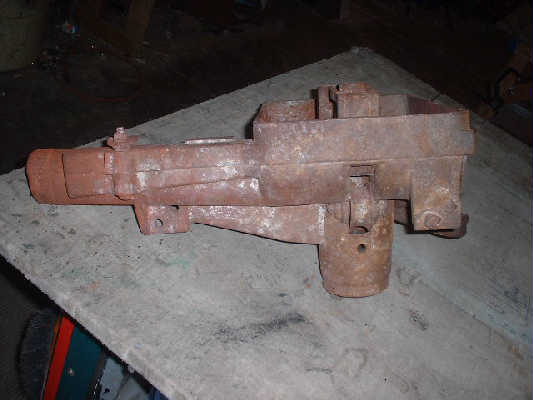

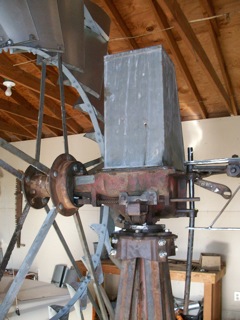

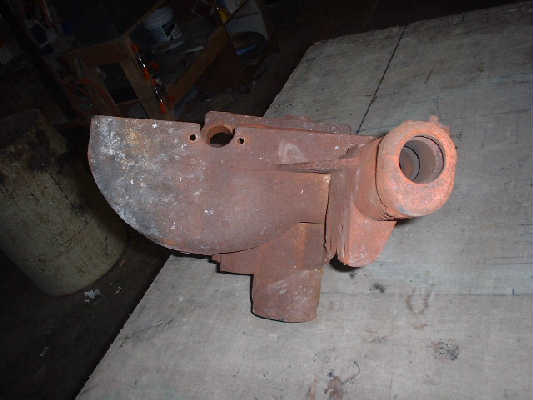

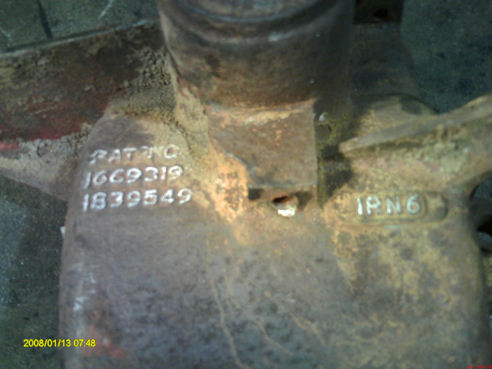

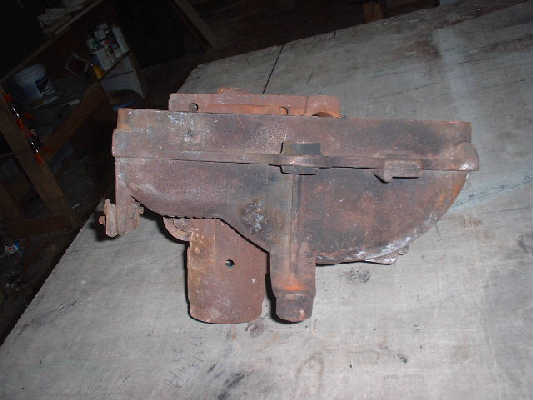

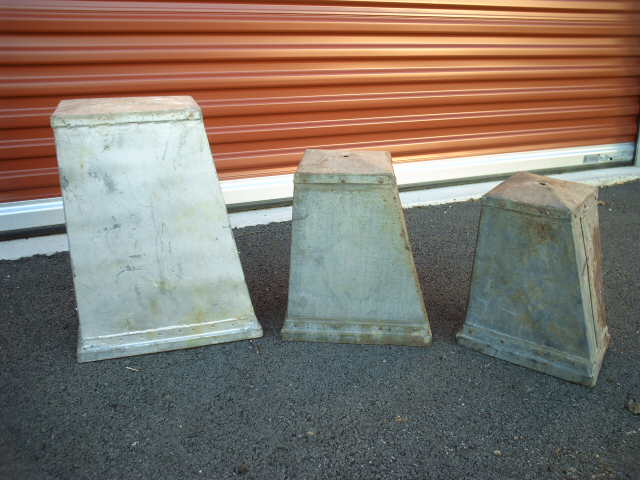

Champion Motor Case for 6ft / Lt. 8ft (Stover M)

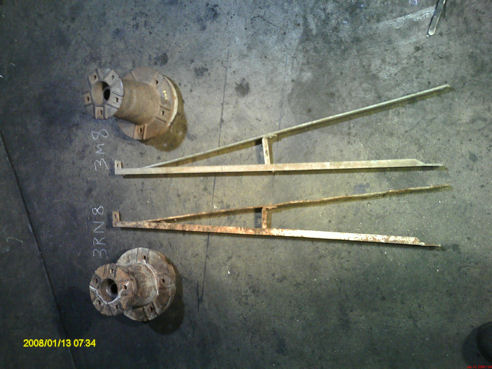

Champion Wheel Arms (Stover M)

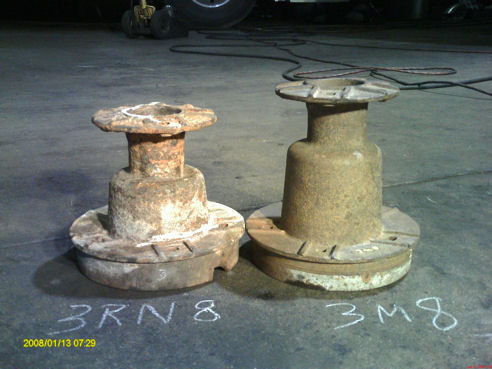

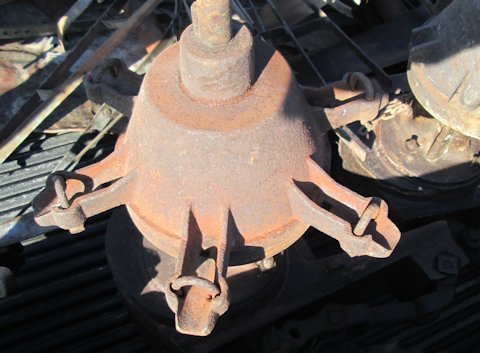

Champion Hubs, Lt. 8ft & Reg. 8ft (Stover M)

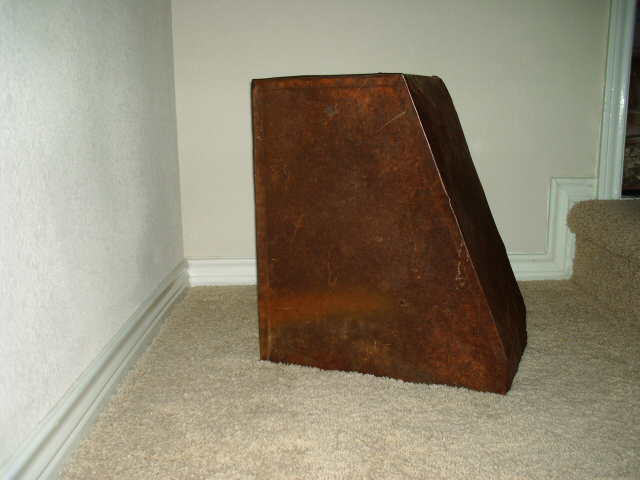

8ft Case (Stover M)

8ft Case (Stover M)

8ft Case (Stover M)

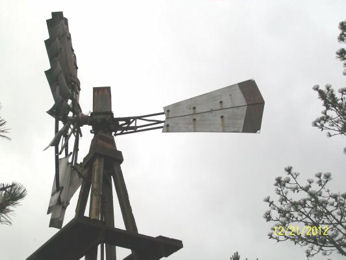

Snoot (Samson AirFlow Version)

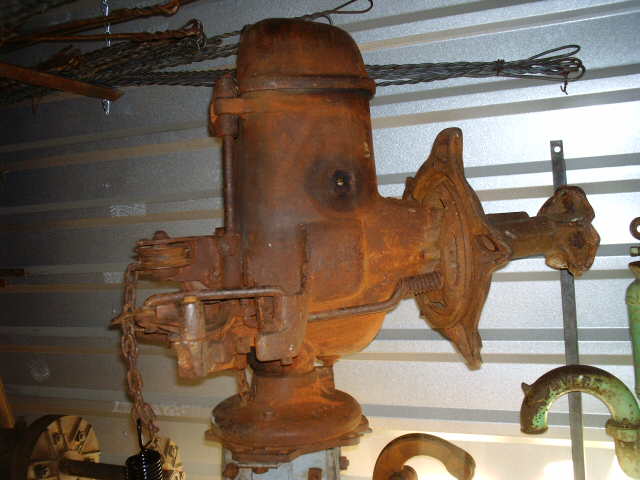

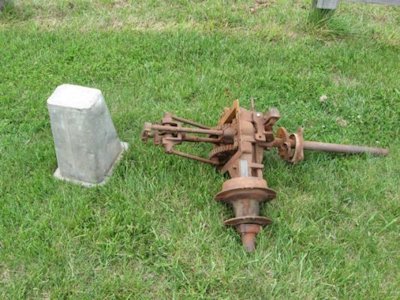

Motor (Samson AirFlow Version)

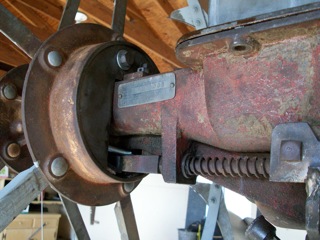

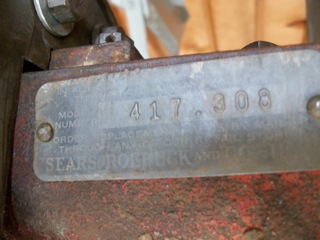

ID Plate (Samson AirFlow Version)

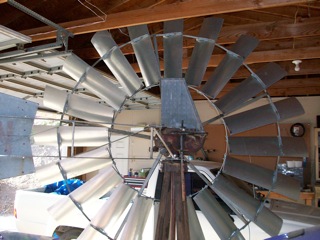

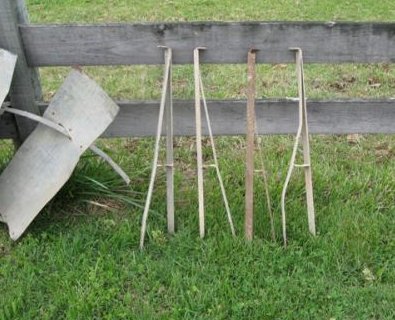

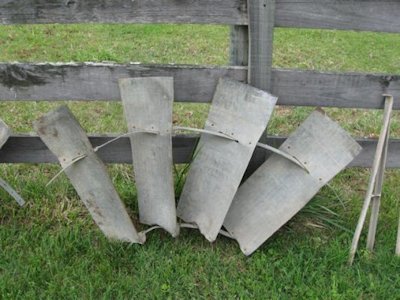

8ft Wheel (Samson AirFlow Version)

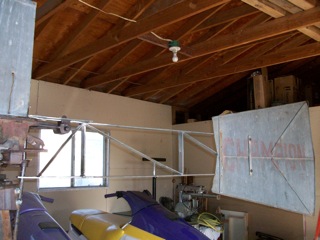

Stem (Samson AirFlow Version)

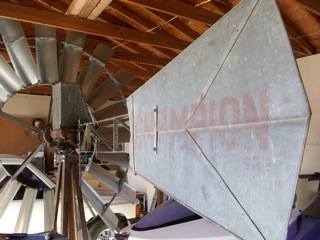

Vane (Samson AirFlow Version)

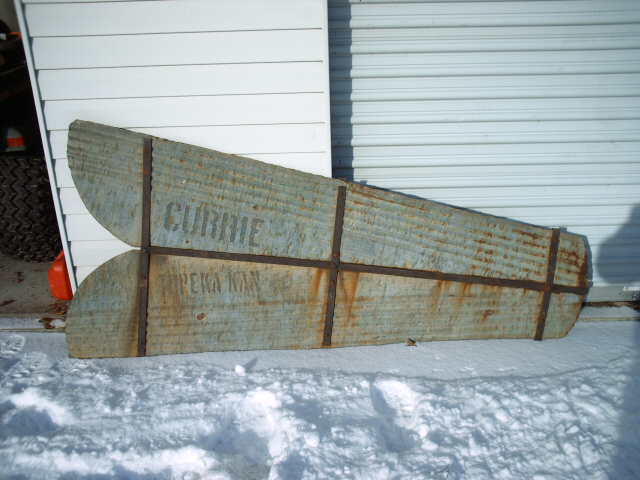

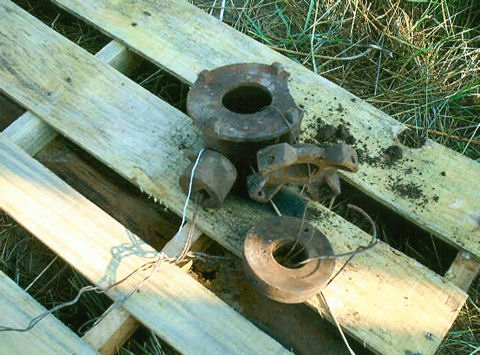

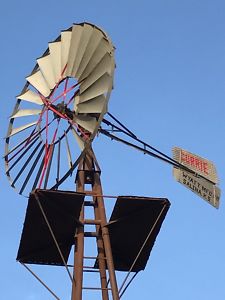

Currie

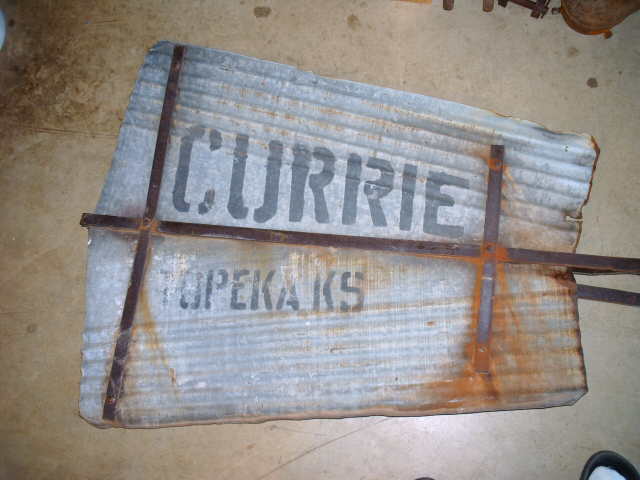

Open Gear Vane

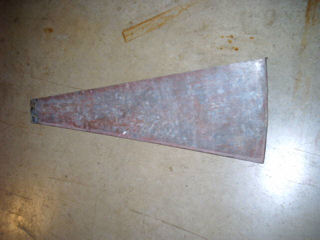

Currie Sail

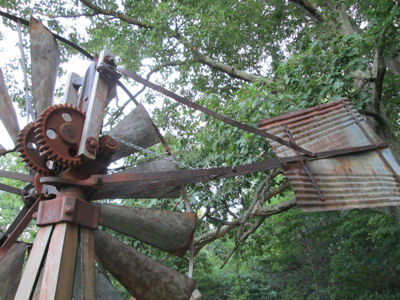

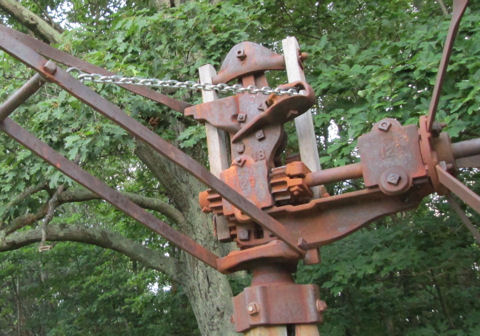

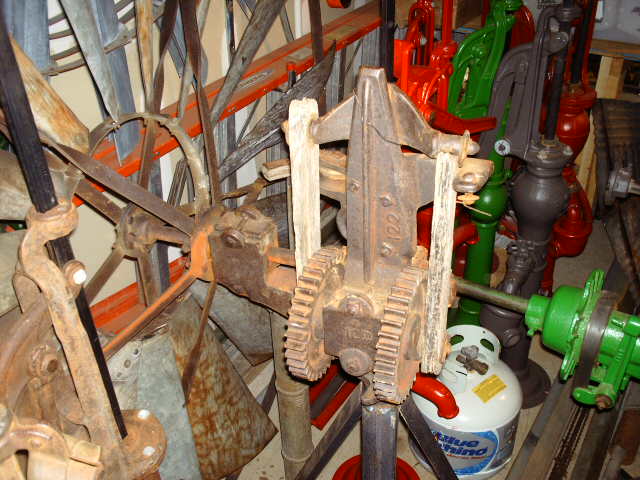

Open Gear Head

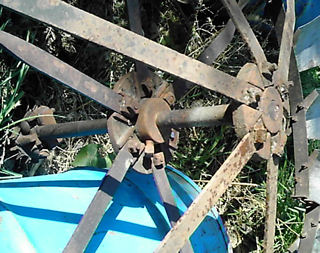

8ft Open Gear Spiders

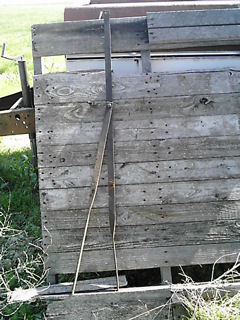

8ft Wheel Spoke

.

Oil-Bath Vane

Wheel Band & Sail

Oil-Bath Head

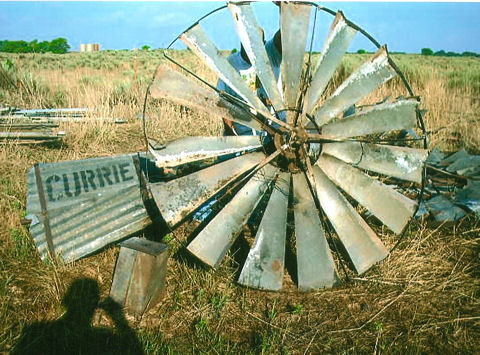

6ft Oil-Bath Wheel & Vane

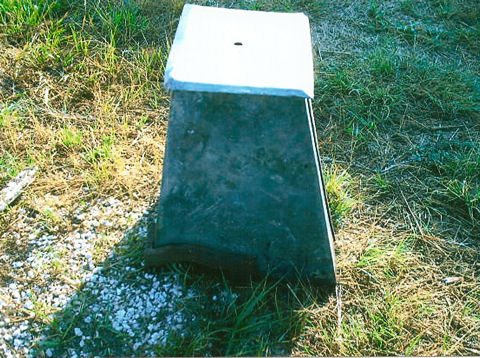

Late Bonnet w/ Rain Drip Edge at Top

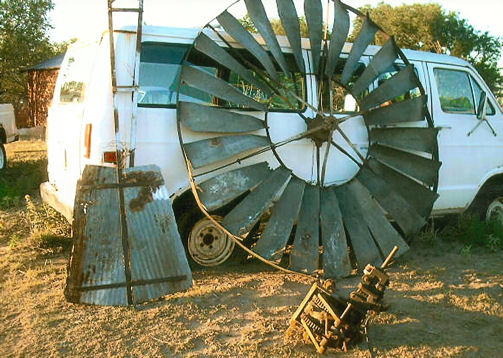

Late 8ft Oil-Bath Wheel & Vane

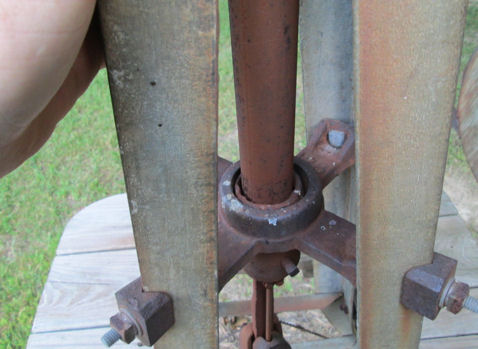

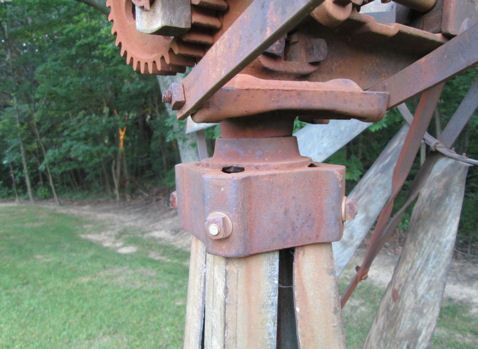

Late Style Tower Cap, Race, Stay & Mast Cap

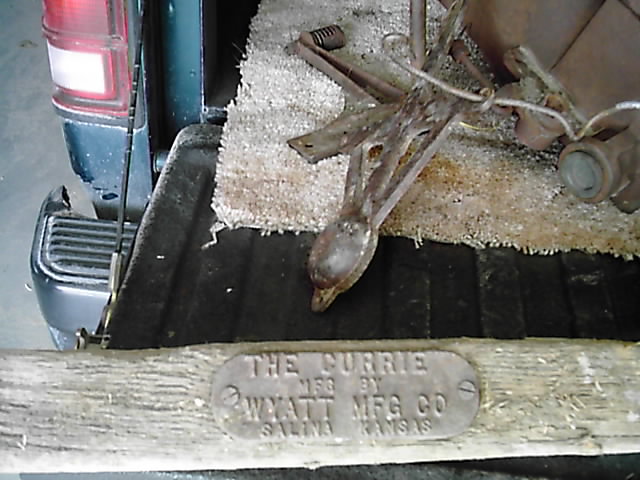

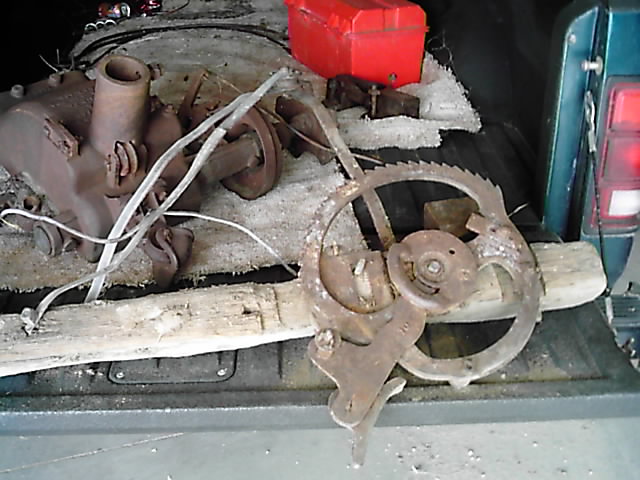

Currie Regulator

Currie Regulator

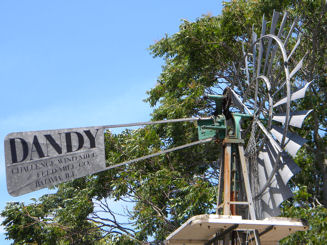

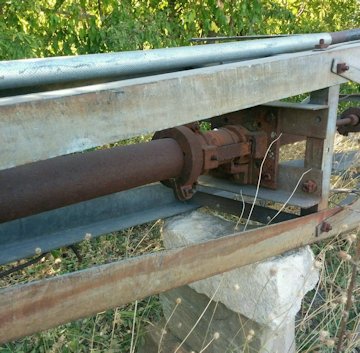

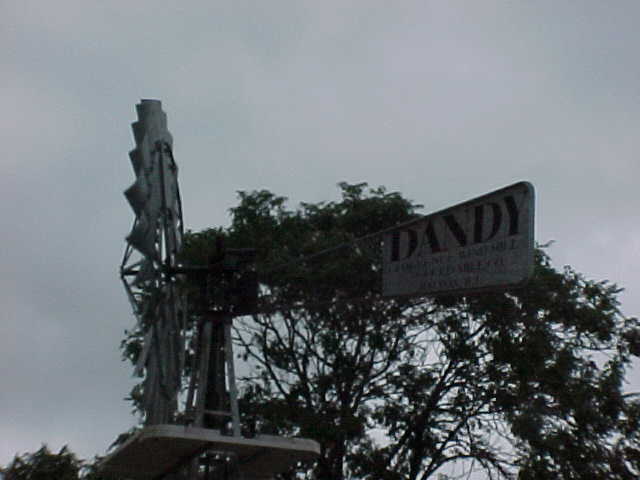

Dandy

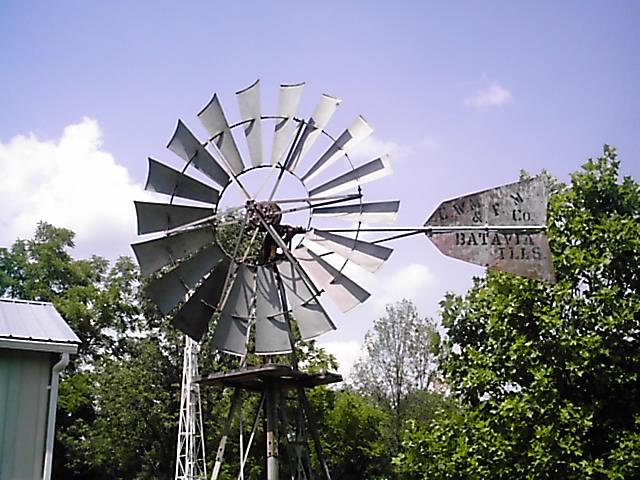

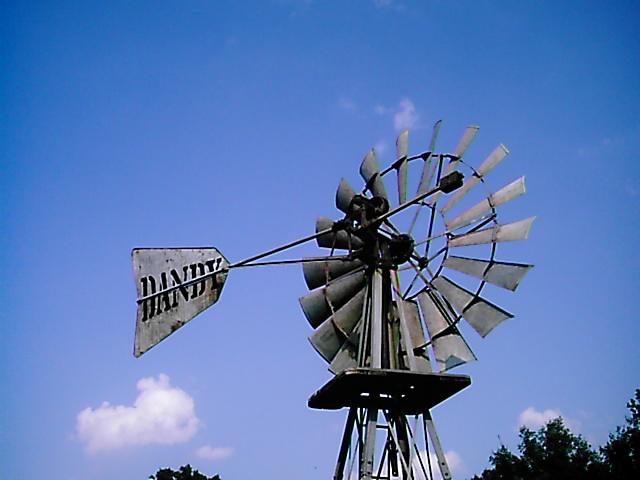

Late Production 8ft

Late Production 8ft

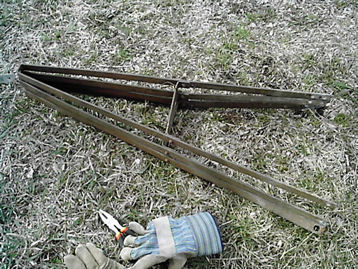

8ft Spoke

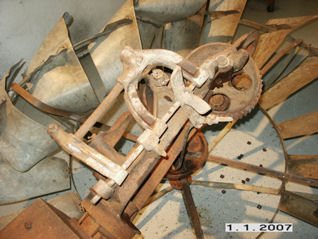

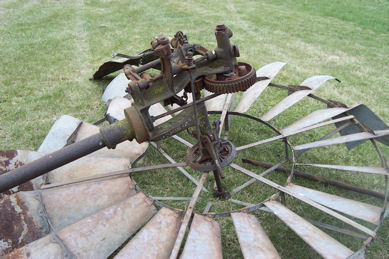

Early Model Head

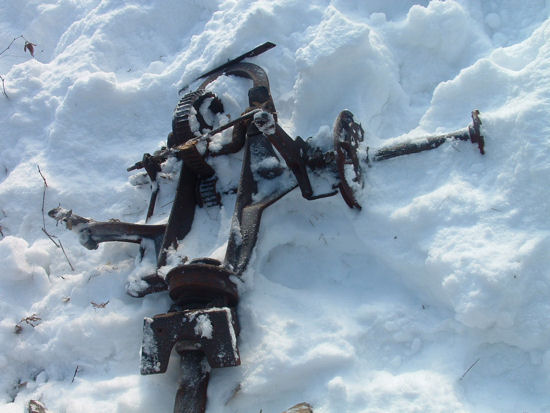

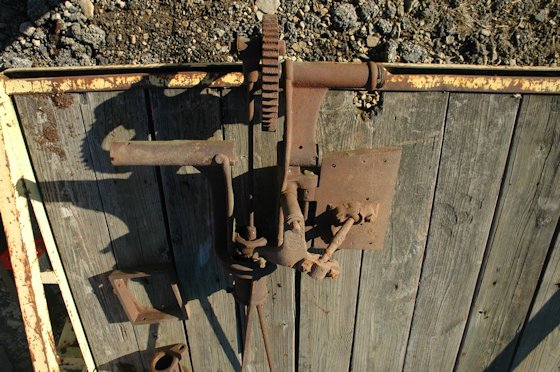

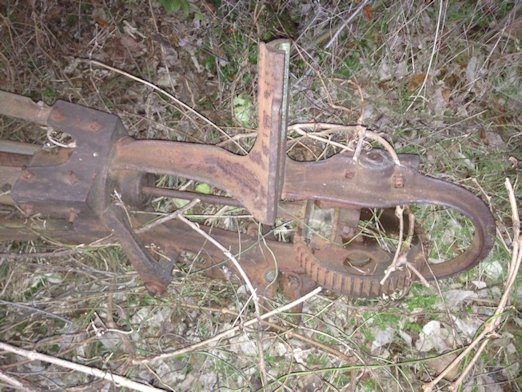

Dandy Irrigator Head

Dandy Irrigator Head

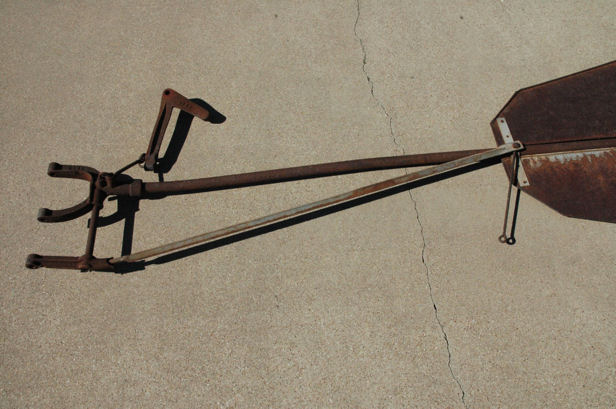

Irrigator Vane Hinge & Weight Elbow

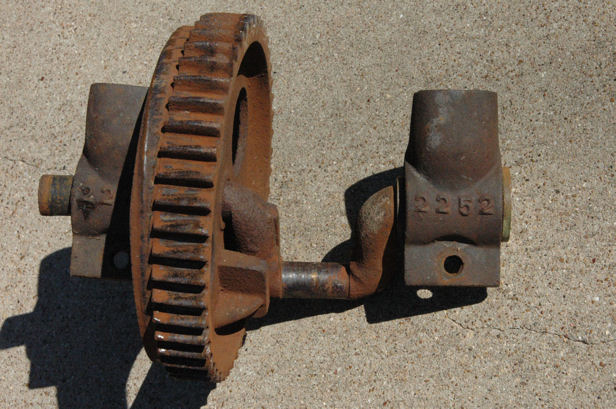

Irrigator Lrg Gear, Crank Shaft & Oil Cups

Irrigator Head

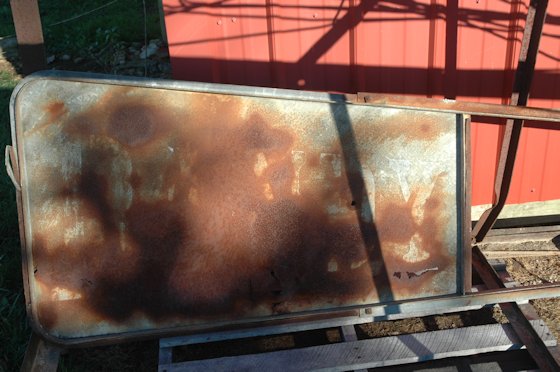

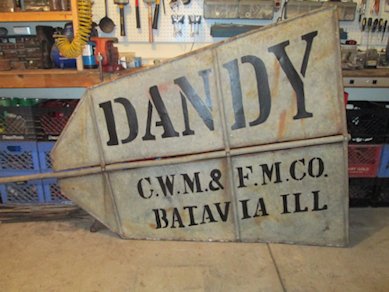

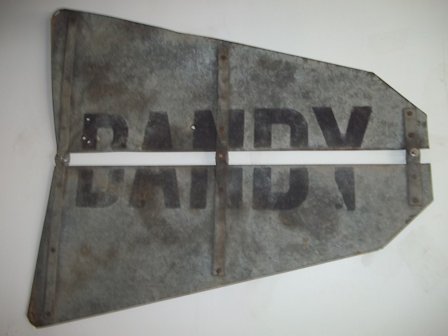

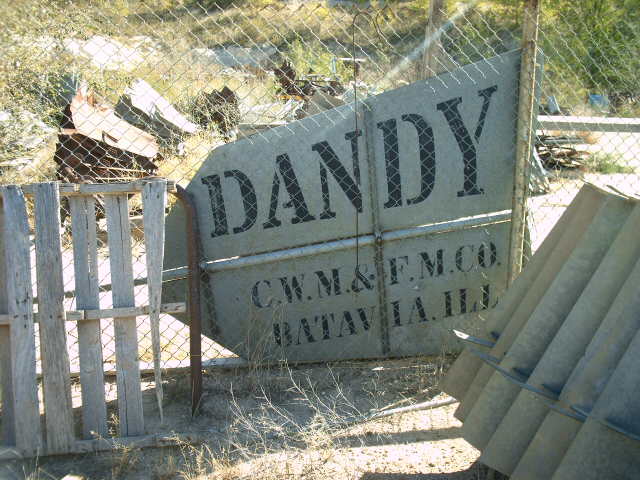

Vane

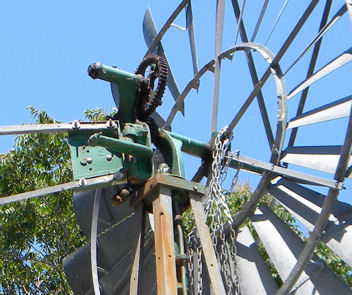

Late Model Head

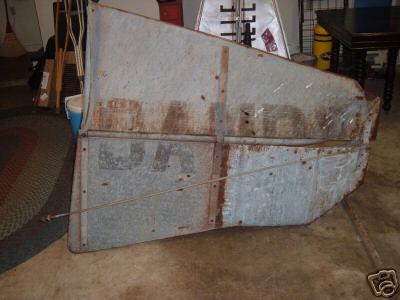

Vane

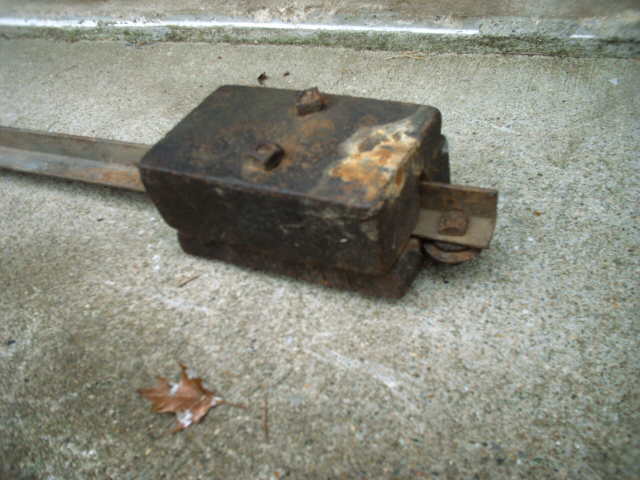

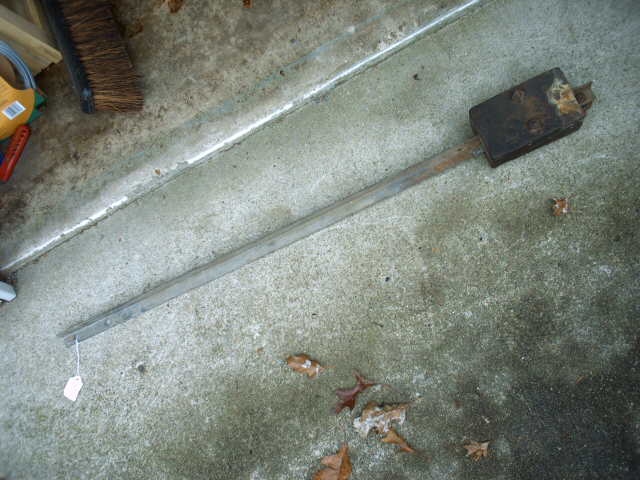

Govenor Weight With Arm

Govenor Weight

Original Dandy Steel

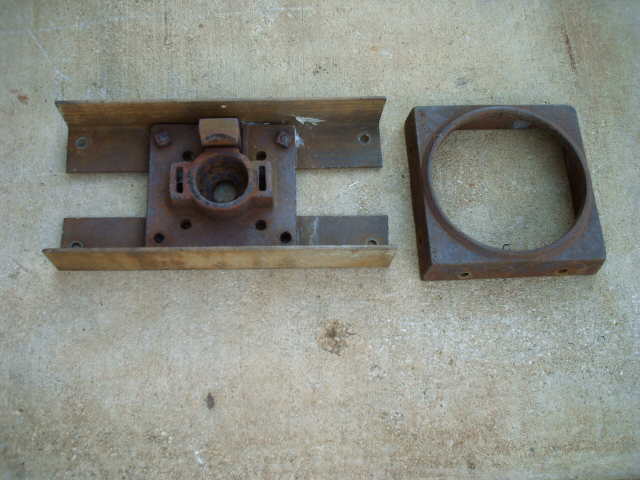

Tower Cap & Mast Base

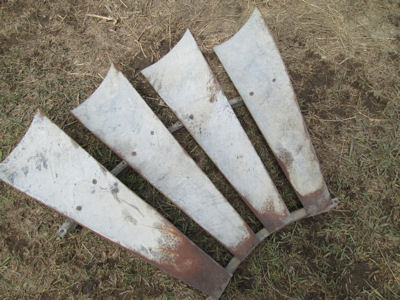

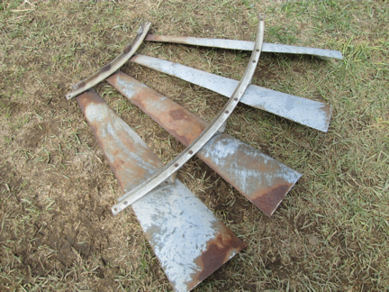

10ft Wheel Section & Arm

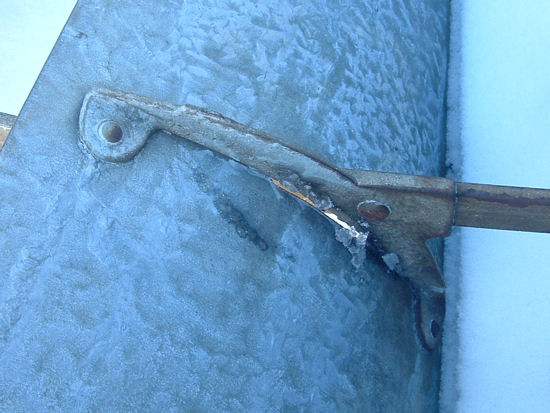

Early Cast Sail Brace

Original Dandy Motor

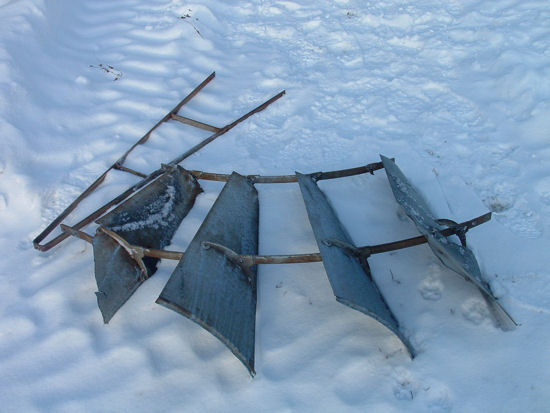

Original Dandy Wheel Design

Original Dandy Wheel Design

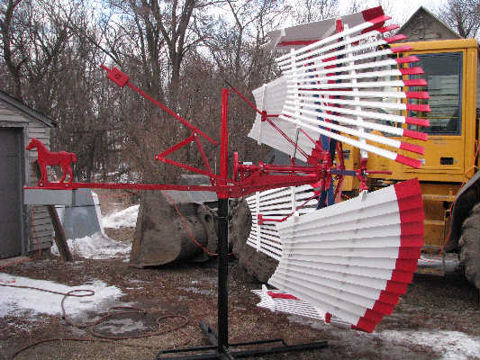

David Bradley

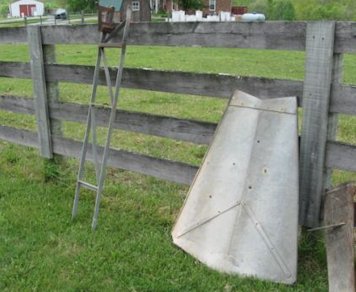

Model 802.8 Vane

Model 802.8 Head (Monitor WC)

Sail w/ Upper Bace


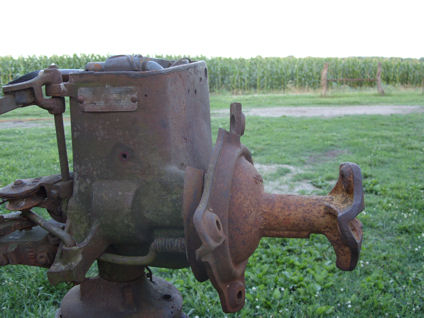

Model 802.6 Head

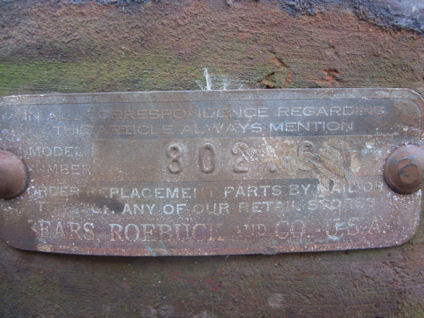

Model 802.6 ID Plate

.

Champion Motor w/ Vane

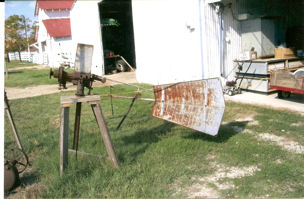

Champion Head (Samson M)

Champion Motor Case for 6ft/Lt. 8ft

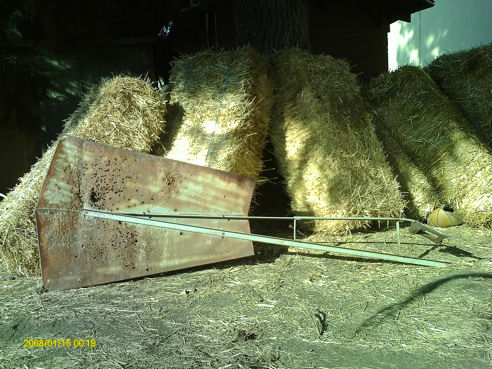

ChampionVane w/Stem

Champion Hubs, Lt. 8ft & Reg. 8ft

Champion Wheel Arms

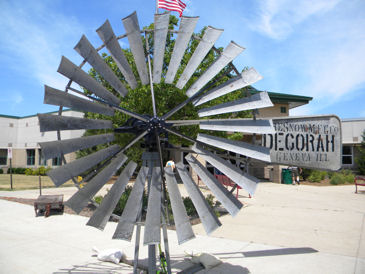

Decorah

8ft Mill

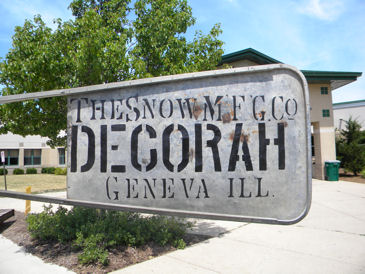

Vane

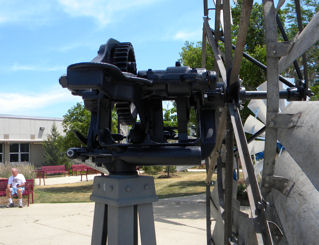

8ft Motor

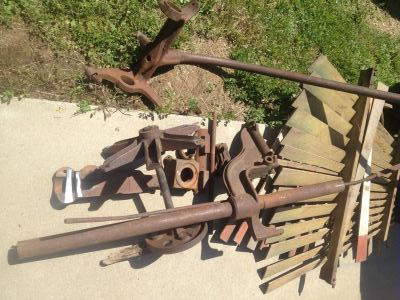

Dempster

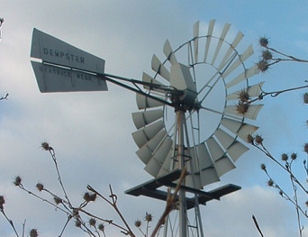

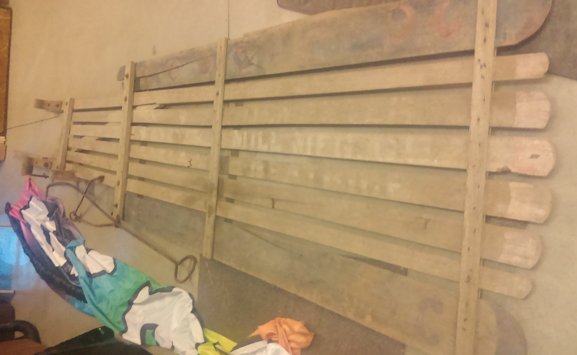

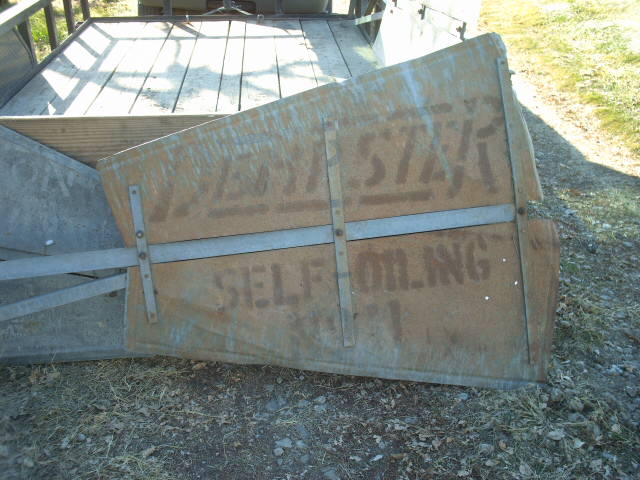

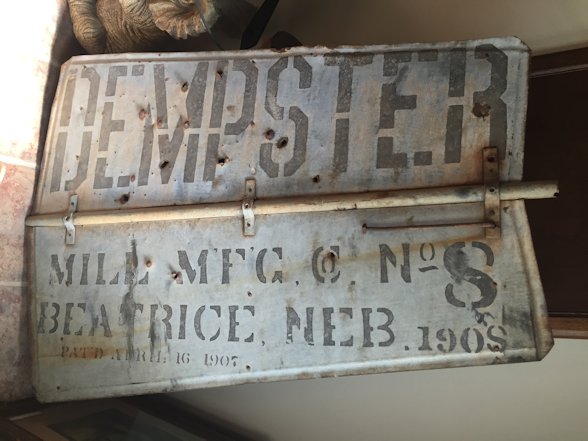

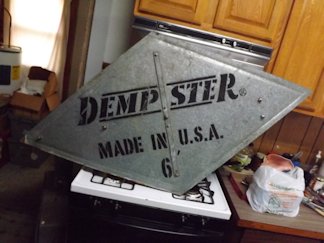

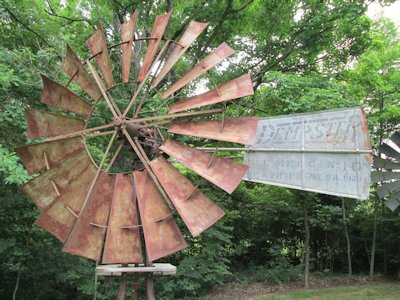

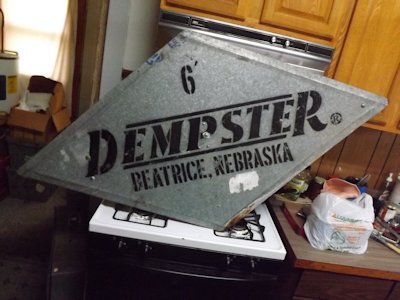

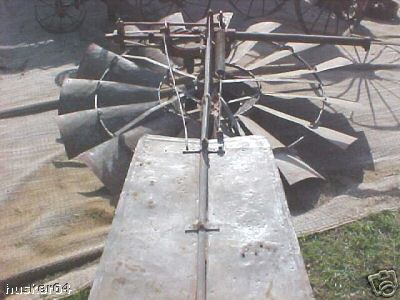

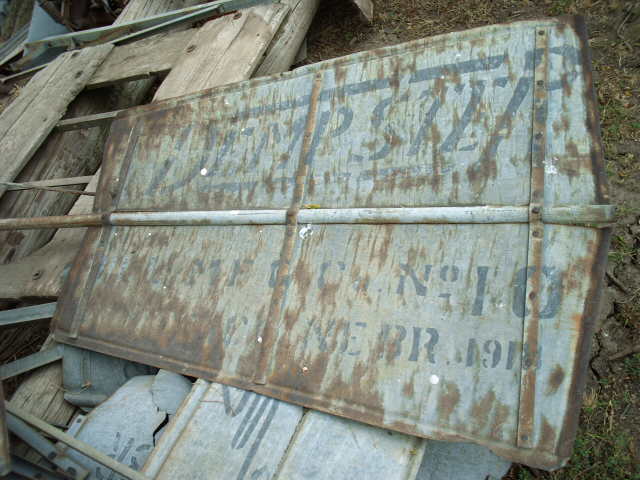

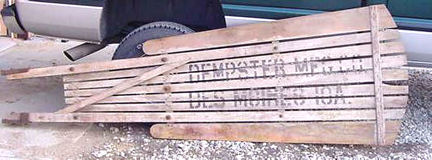

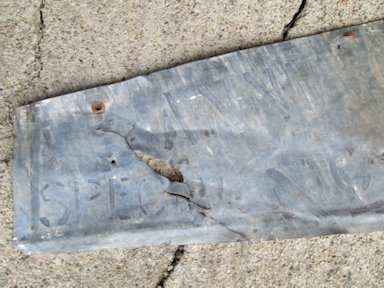

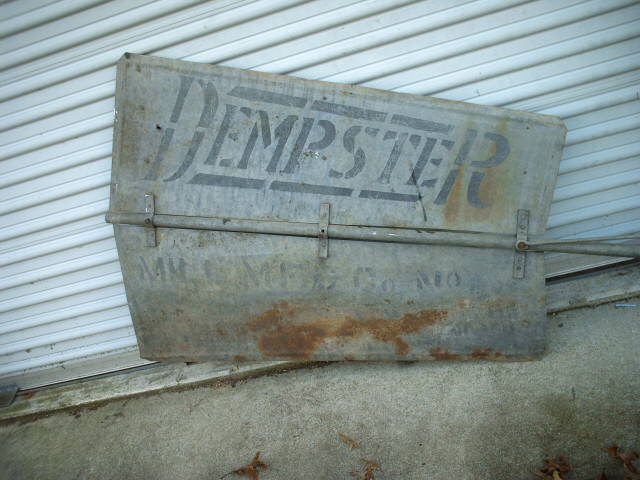

Dempster of Des Moines, IA Vane

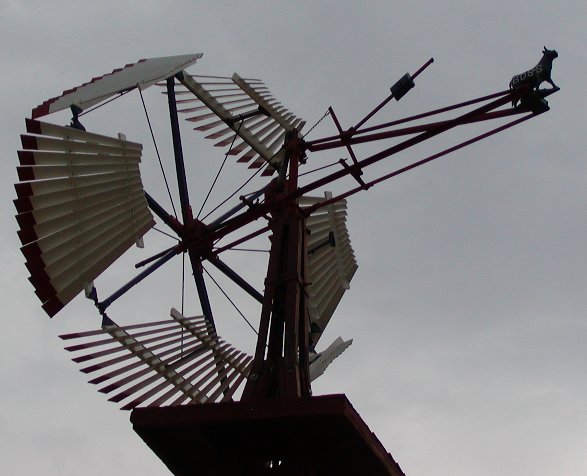

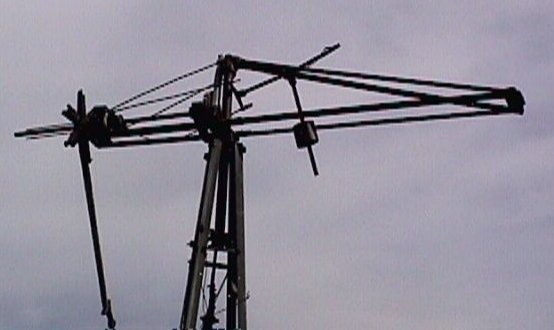

Dempster of Des Moines, IA "Boss"

Dempster of Des Moines, IA "Boss" Main Frame

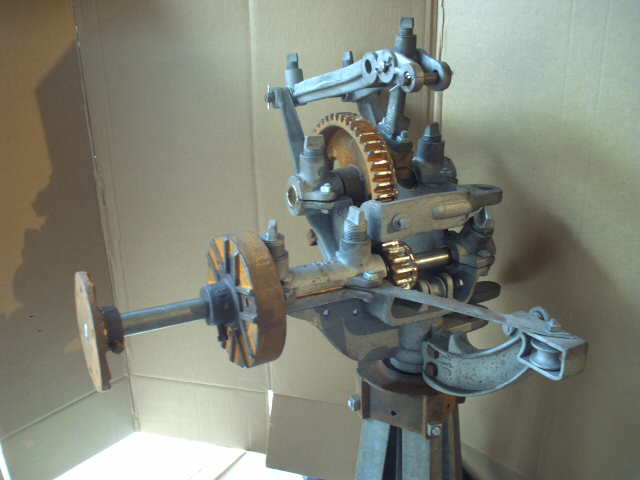

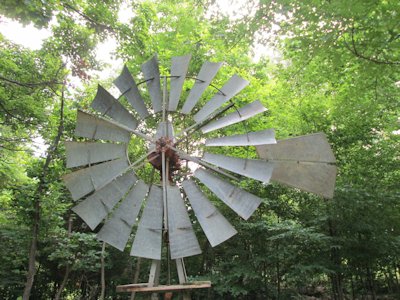

Dempster of Des Moines, IA

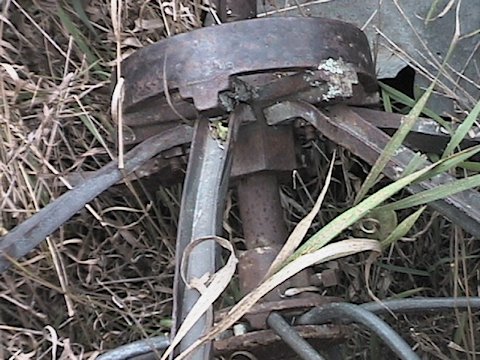

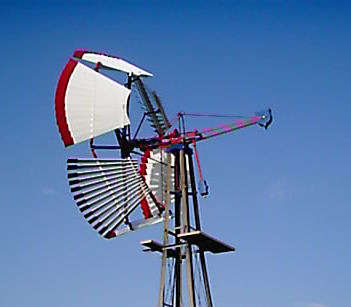

Capital Vaneless

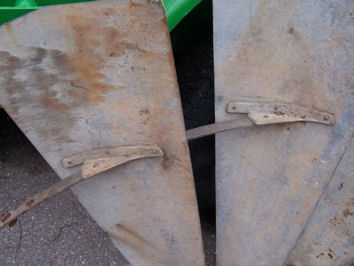

Earliest Style Sail Brace

(note inside mount)

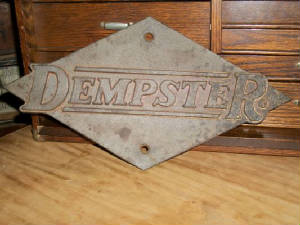

Vintage Advertising Plaque

Dempster of Des Moines, IA

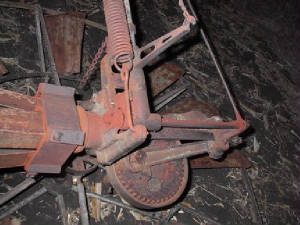

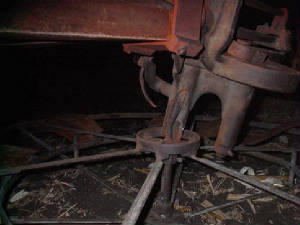

Capital Steel

Dempster of Des Moines, IA
Capital Steel

Dempster of Des Moines, IA
Dealer Sign

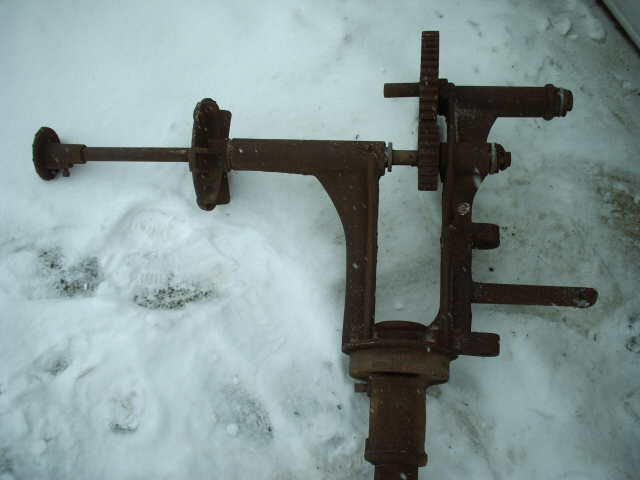

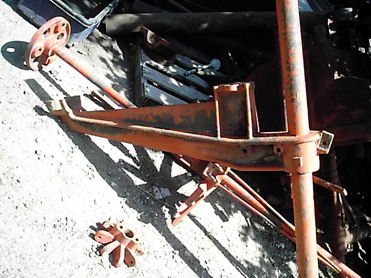

#1 Main Frame

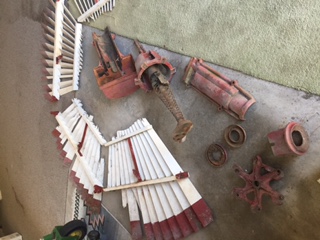

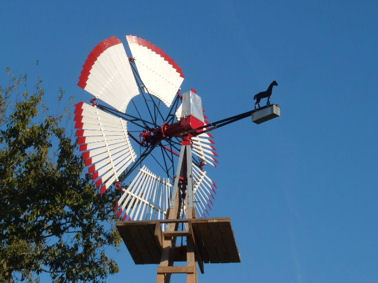

#14

#3

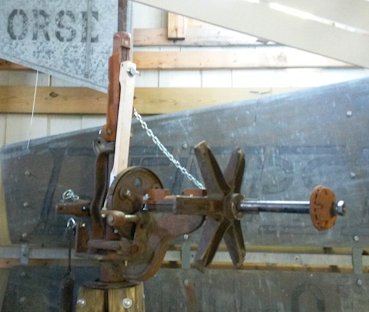

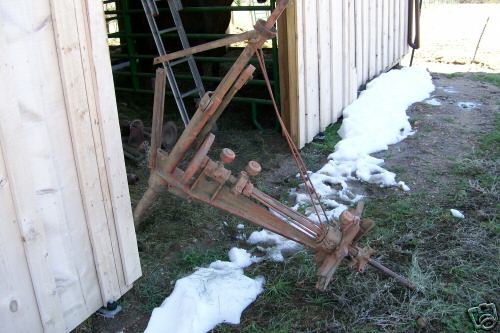

# 4 Head

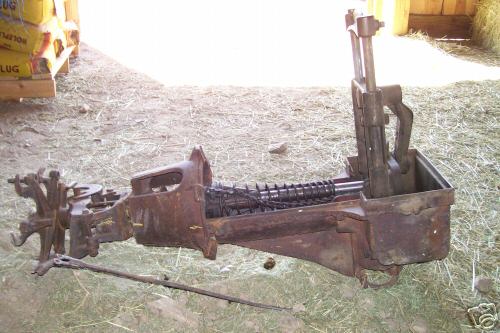

# 14 Head

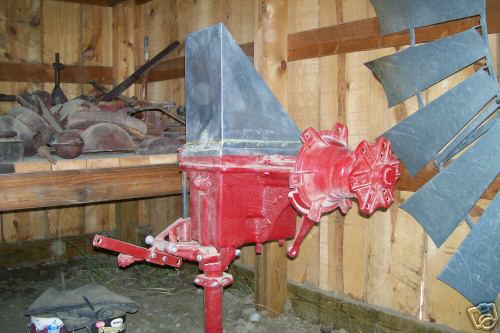

# 11 Head

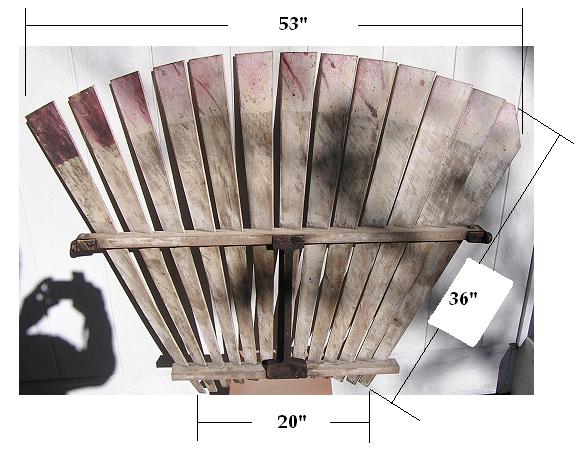

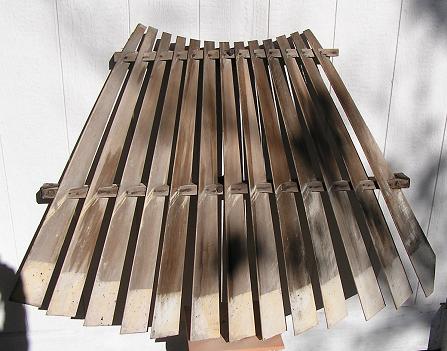

10ft #3 & #4 Wheel Section

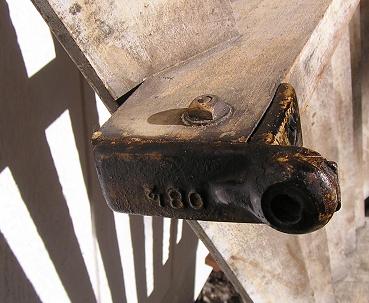

#3 & #4 Wheel Section Hinge

10ft #3 & #4 Wheel Section

# 8 Head

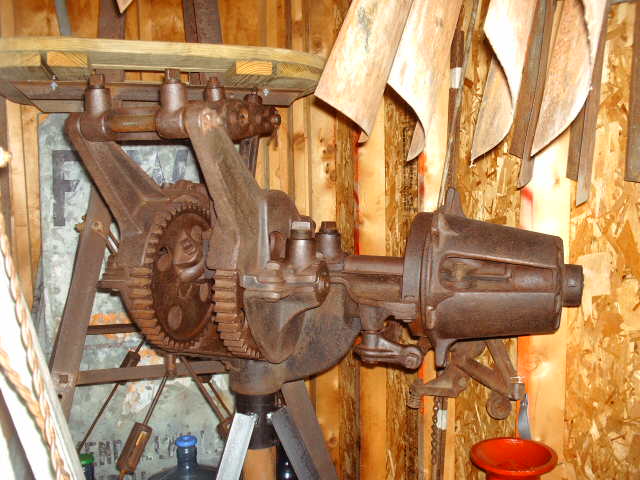

# 10 Head

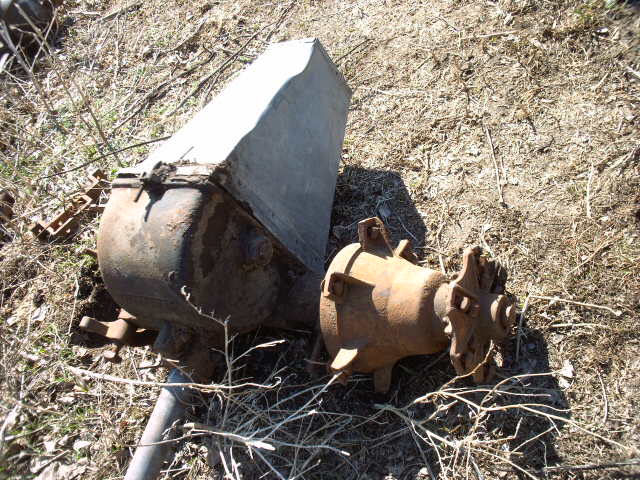

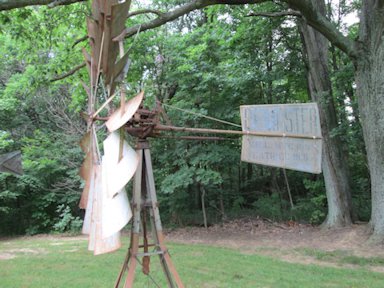

Original 1921-22 8ft #12

# 8 Vane

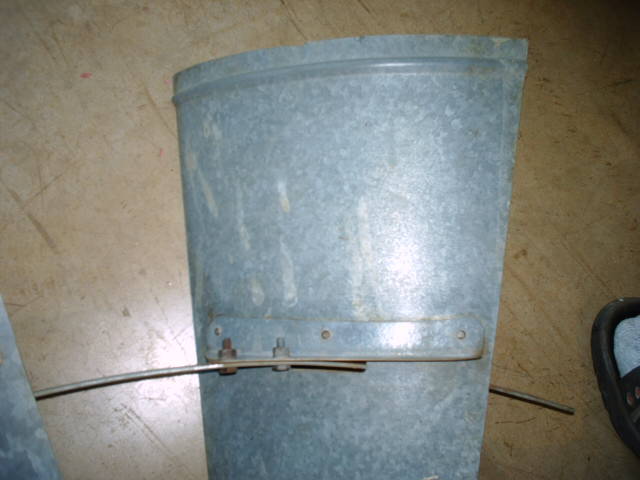

Improved Steel Sail Brace

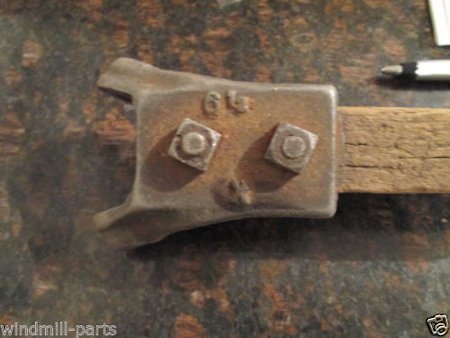

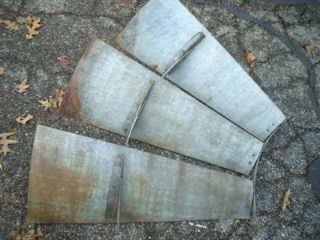

# 12 Sail & Brace (late)

#11 Vane

#11 Hub

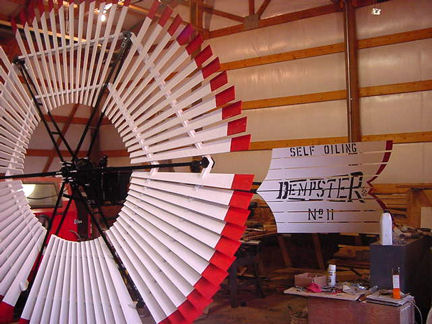

#11 8ft Wheel (24 sail)

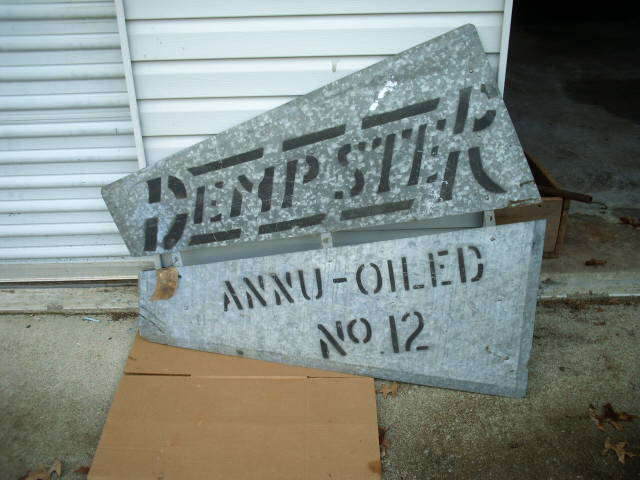

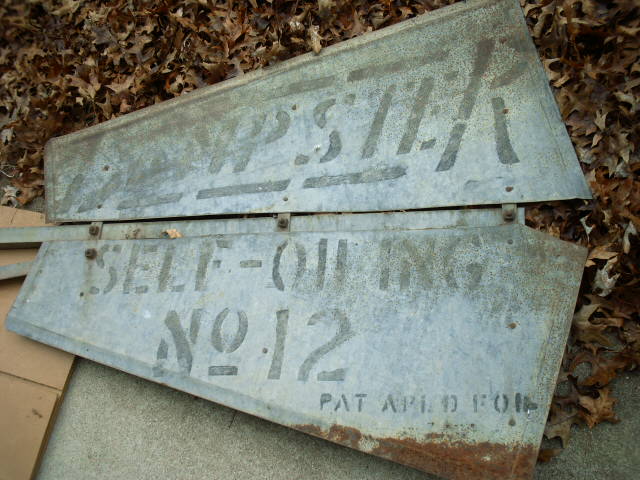

#12 Vane (early)

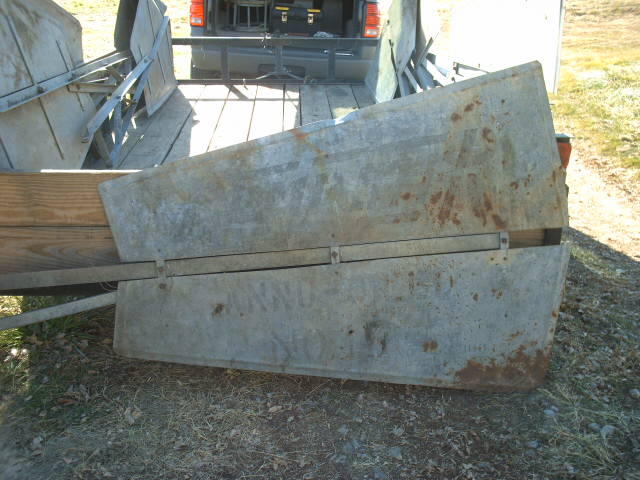

#12 Vane (late)

#12A / 12 Bonnets

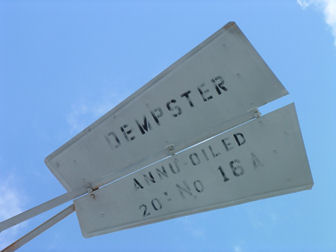

#15 Vane (10ft)

# 8-12 Sails (early)

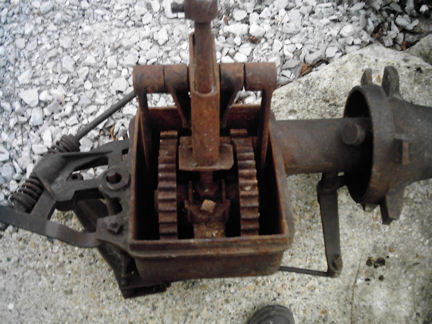

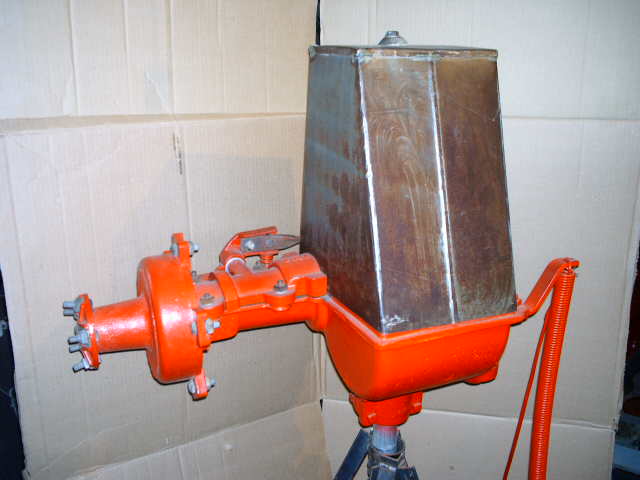

1925 #12 Head

1925 #12 Head

1925 #12 Head

#11 Bonnet & Hub

Original 1921-22 10ft #12 Head

Original 1921-22 10ft #12 Head

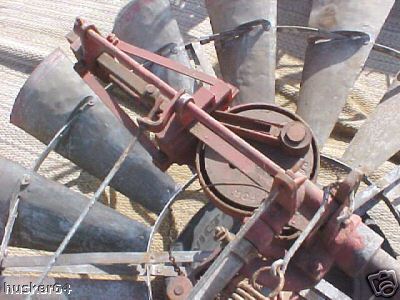

6ft #7 Head

#7 Vane, Wheel, Head

#10 Vane

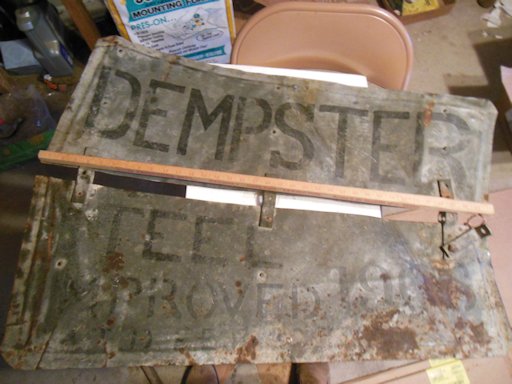

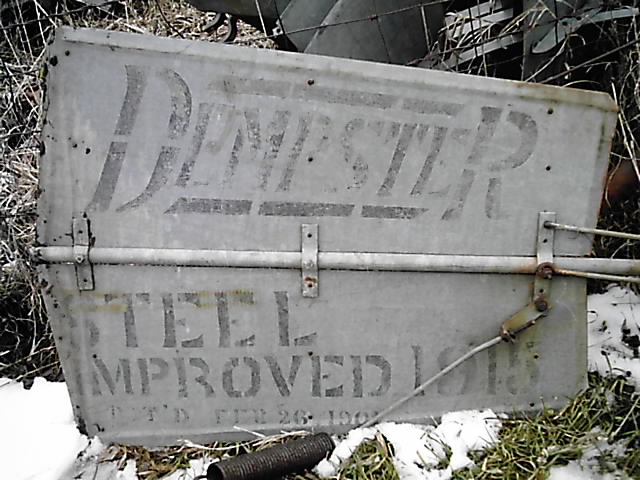

6ft Improved Steel Vane

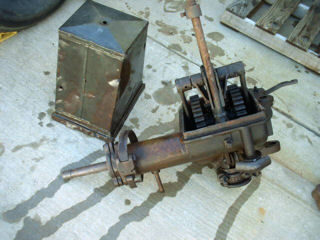

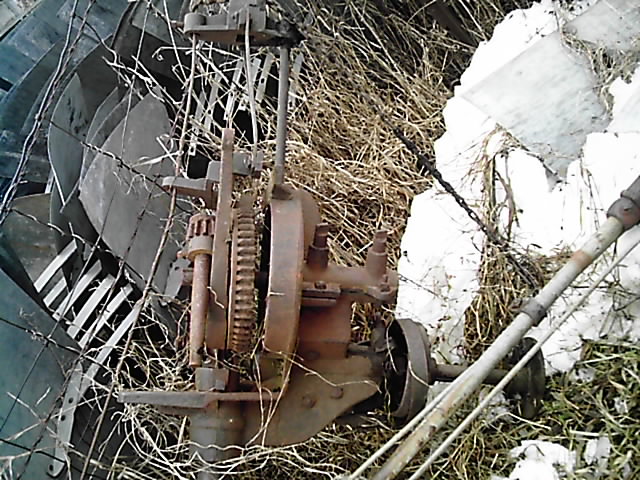

6ft Improved Steel Head

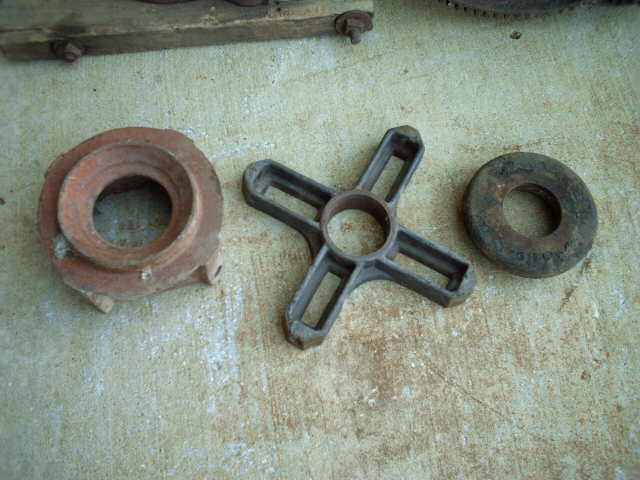

#12/12A/14/15 TowerCap, Race & Storm Stay

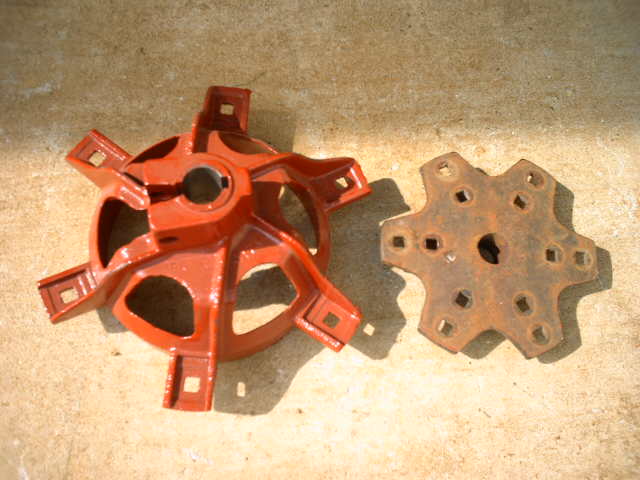

Early #12/12A 6 Section Hub & Brace Spider

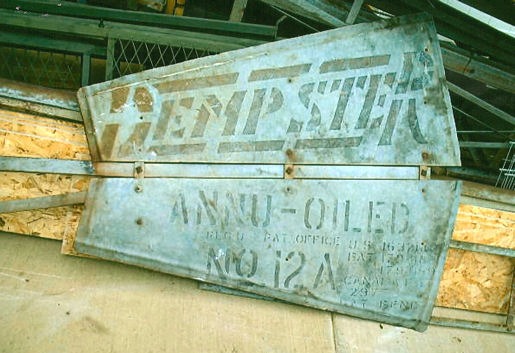

12A Vane

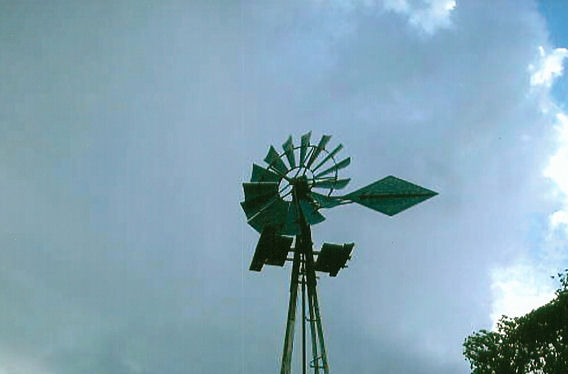

Centenial Diamond Vane

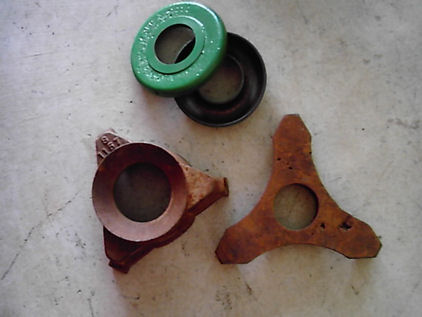

3 Post Tower Cap, Stay & Race

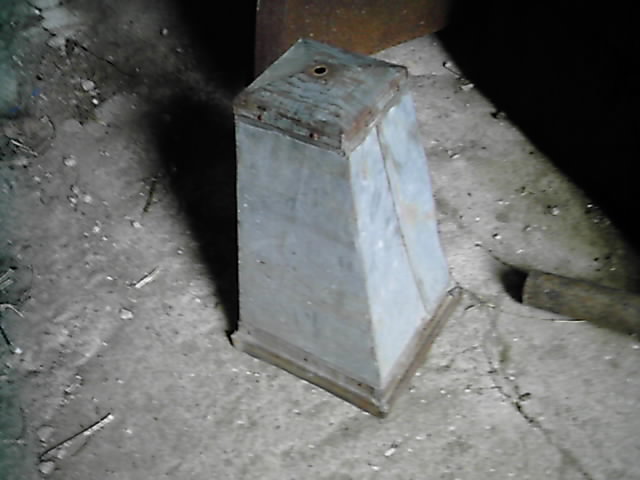

#15 Bonnet

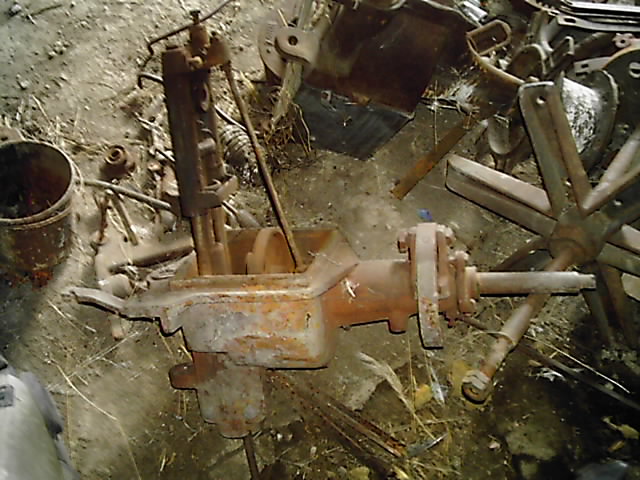

#15 Head

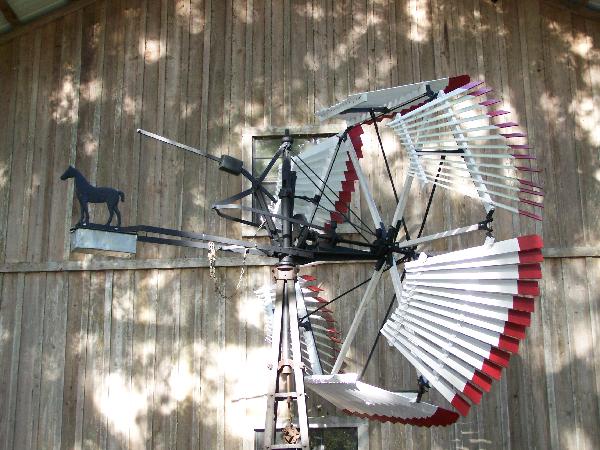

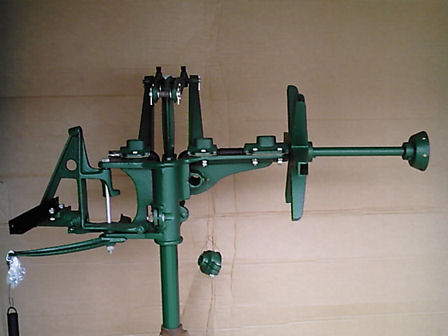

Assembled Dempster Vaneless #4

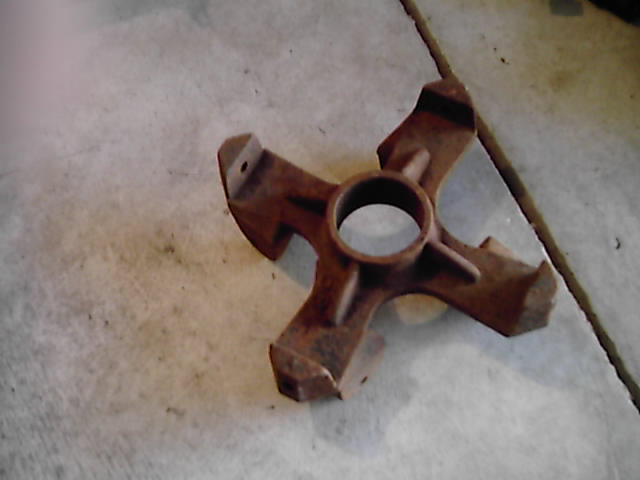

Storm Stay for Models 3, 4, & Early Steel

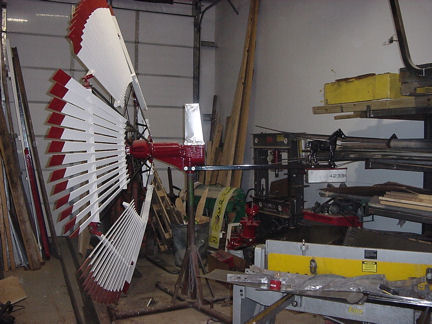

#15

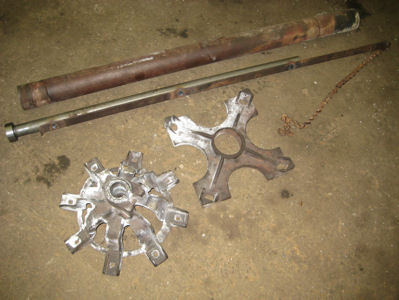

14ft #12 Hub, Stay, Pull-Out Tube & Mast

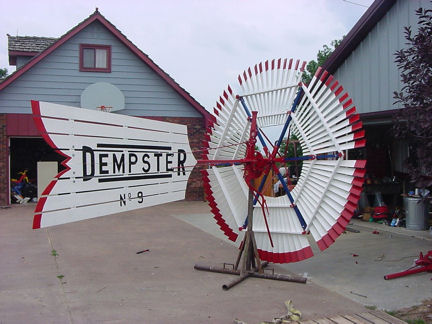

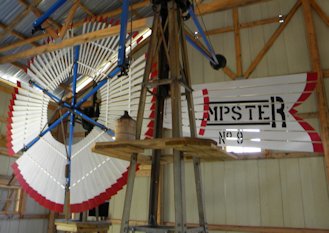

#9

#11, Wood Version

#14

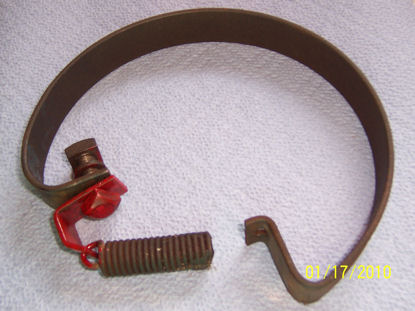

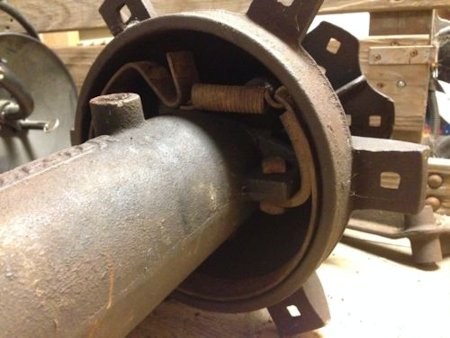

Pre 1932 #12 Brake Band

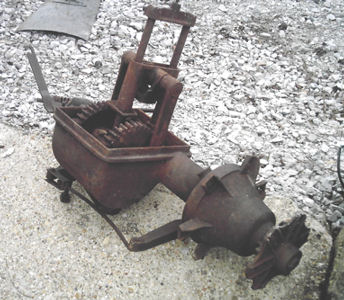

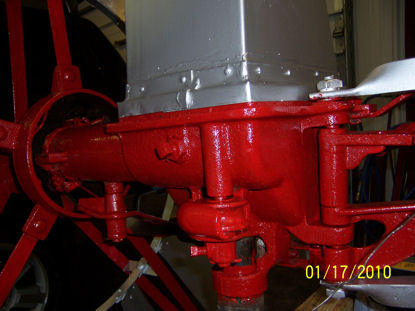

1925-32 6ft #12 Case & Castings

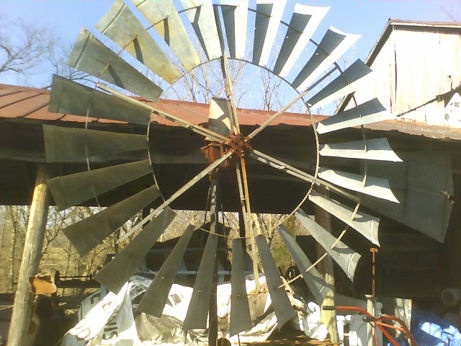

#15

#16 Vane

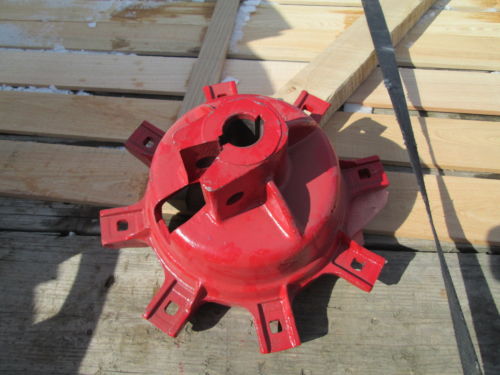

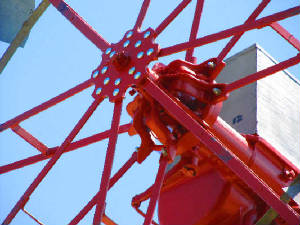

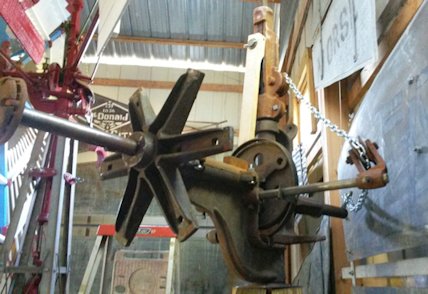

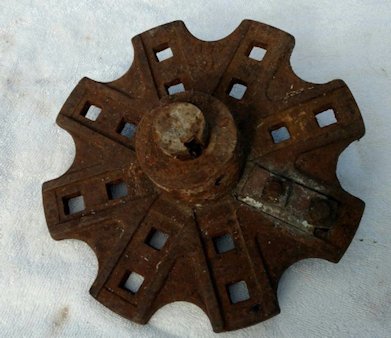

10ft #12- 8 Section Hub & Spider

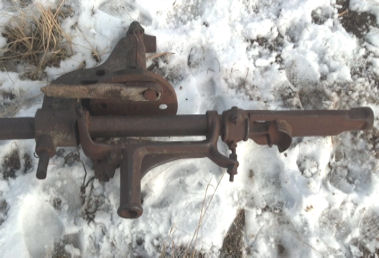

#9 Frame, Crank Plate, Vane Hinge & Pump Rod Guide

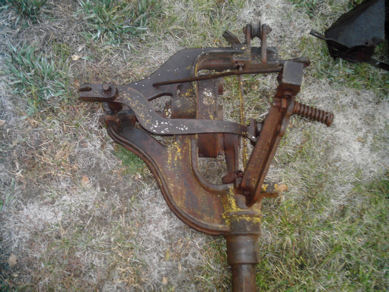

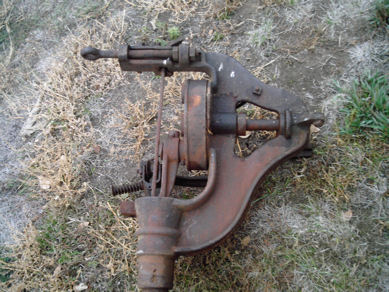

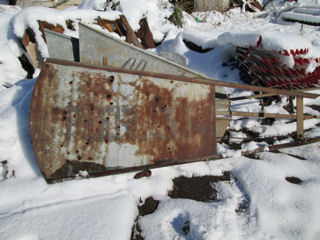

Rare Dempster Queen City Frame

Rare Dempster Queen City Frame

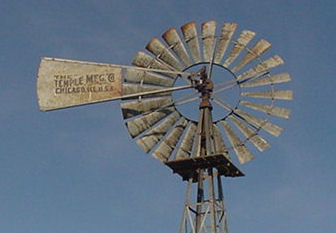

Diamond

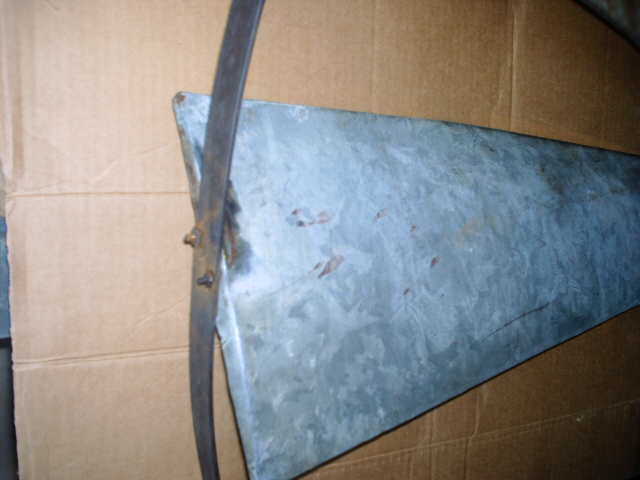

Outer Band Is Sail Brace

Outer Band Is Sail Brace

Inner Sail Brace

8ft Complete Mill

8ft Complete Mill

Tower Cap

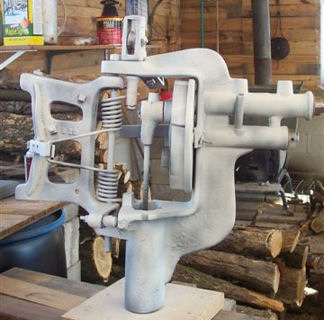

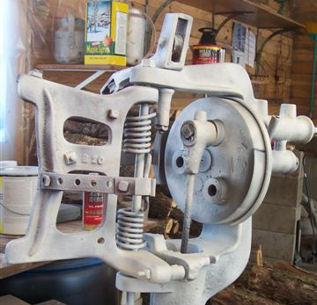

8ft Motor

8ft Motor

8ft Motor

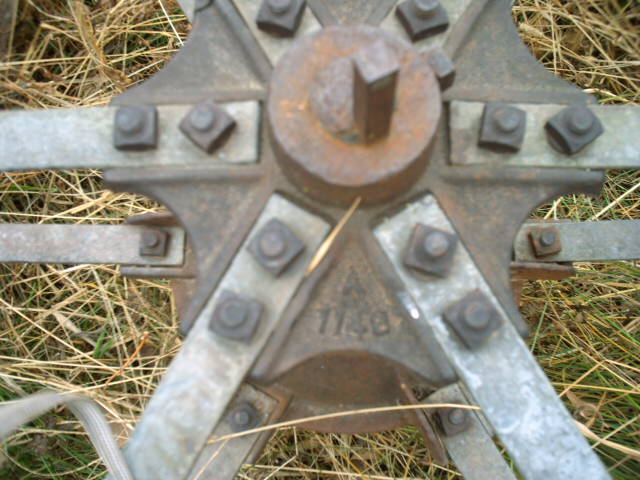

Hub with Spokes

Vane Hinge

8ft Motor

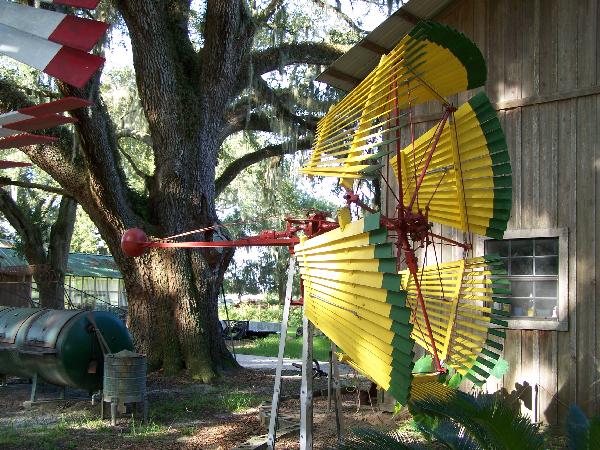

Duplex

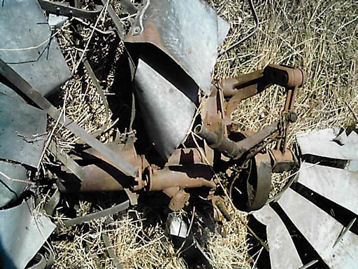

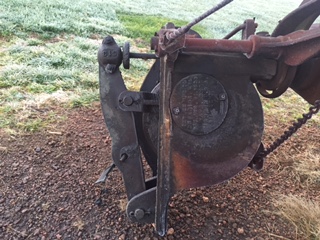

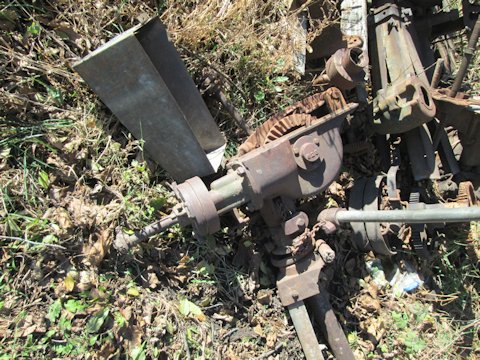

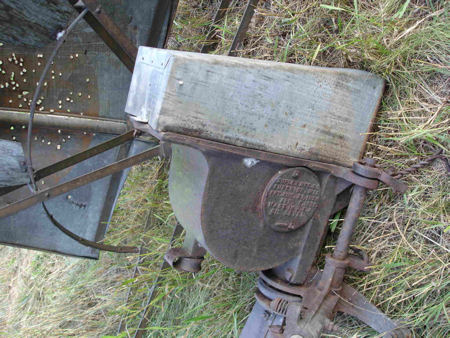

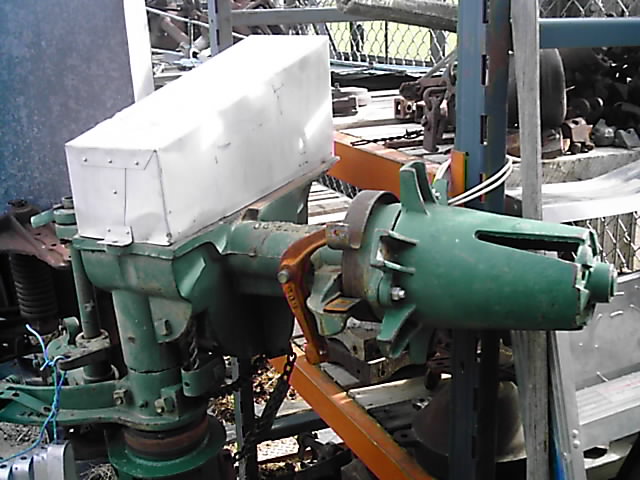

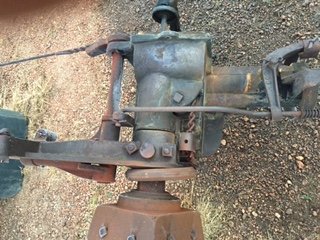

Andrew Head

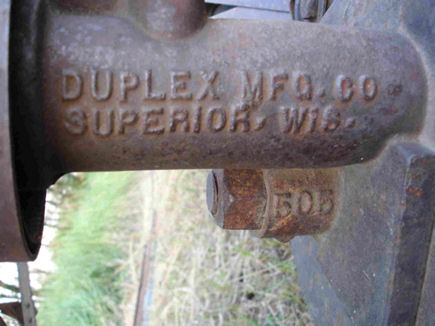

Snoot of Andrew Main Casting

Andrew Wheel

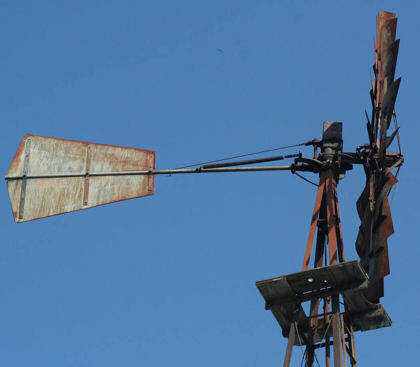

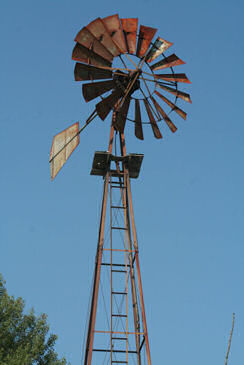

Andrew Profile

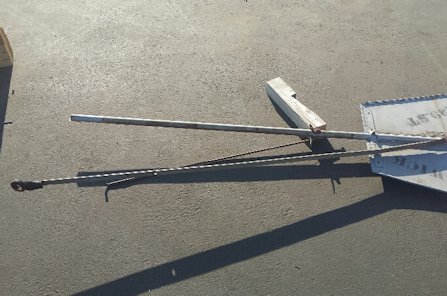

Andrew Vane

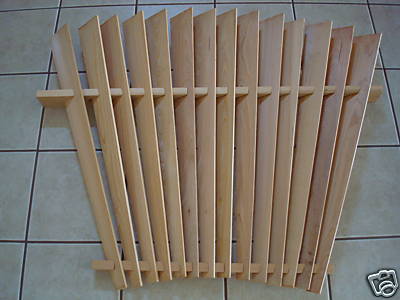

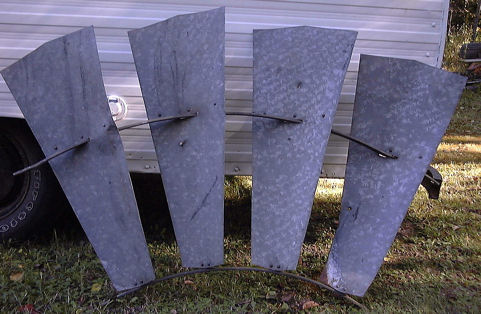

Andrew Sails

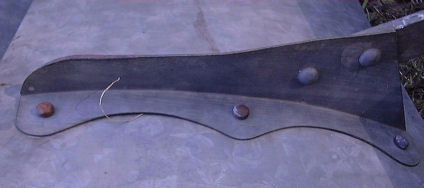

Andrew Outer Sail Brace

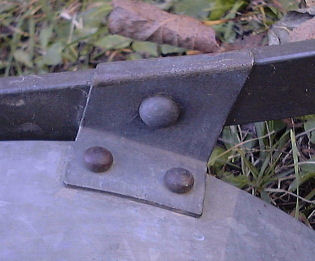

Andrew Inner Sail Brace

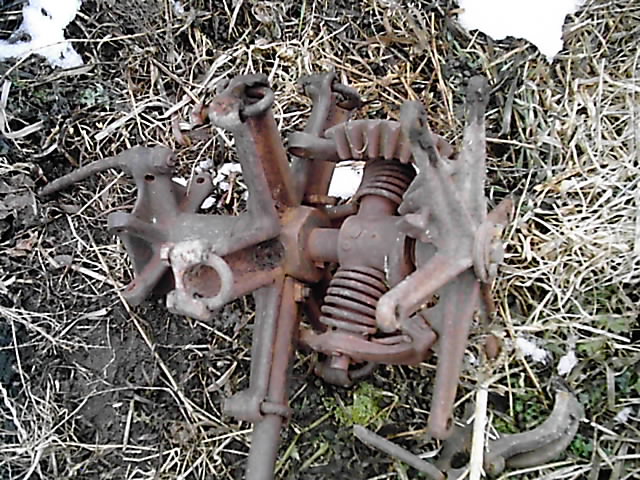

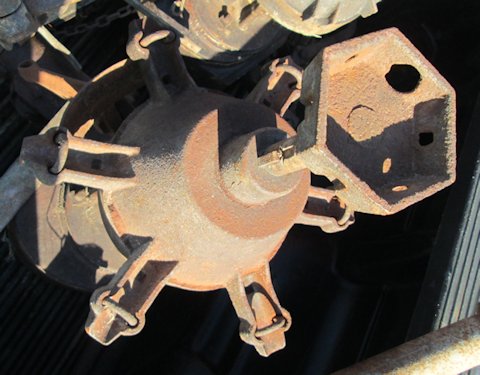

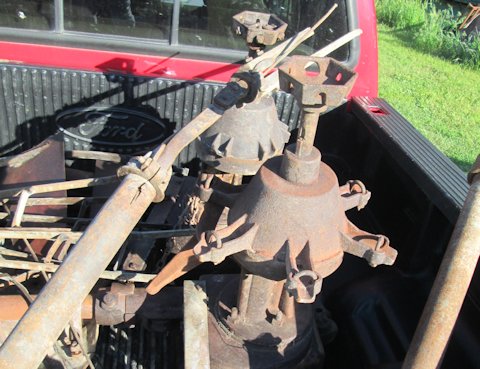

Duplex Vaneless Hub Assembly

Vaneless Main Frame on Stub

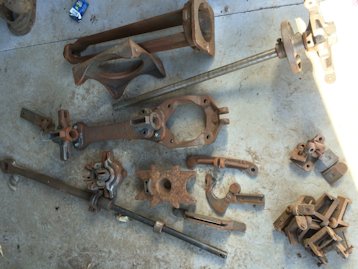

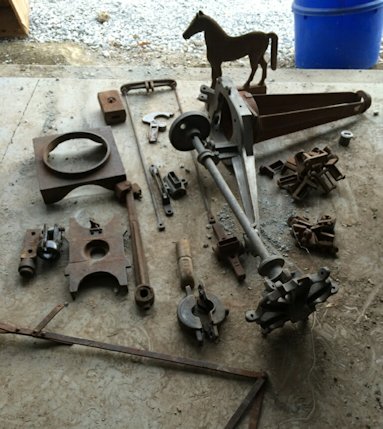

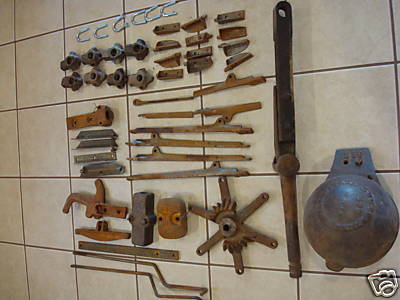

Vaneless Parts & Weights

Vaneless Wheel Section

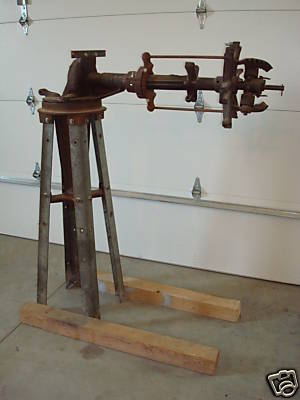

Assembled Duplex Vaneless

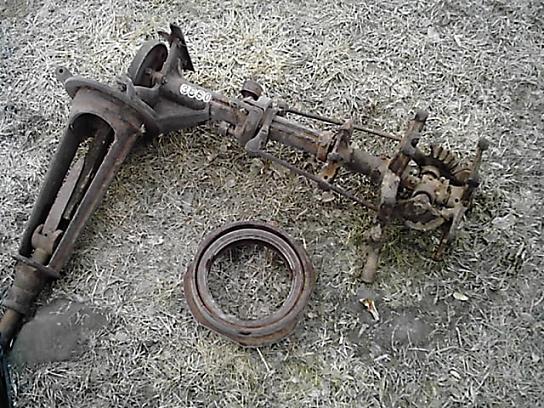

Vaneless Main Frame

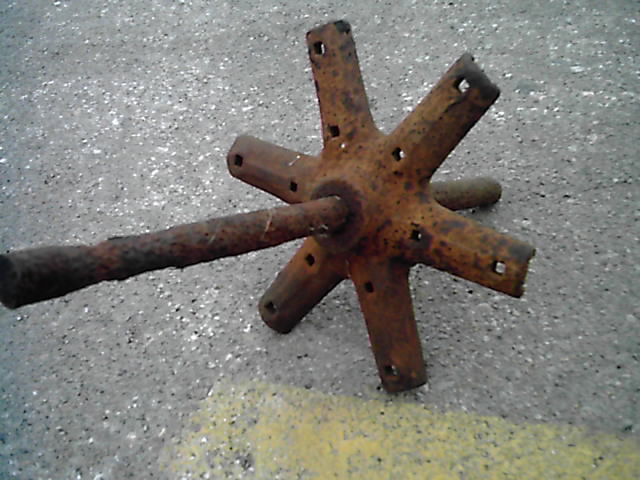

Duplex Superior Spider

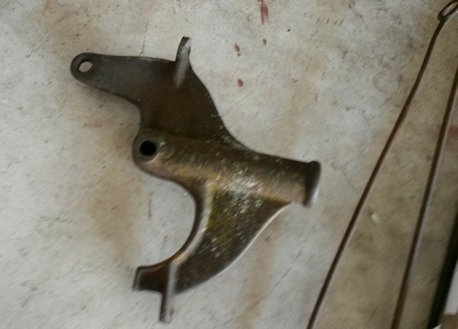

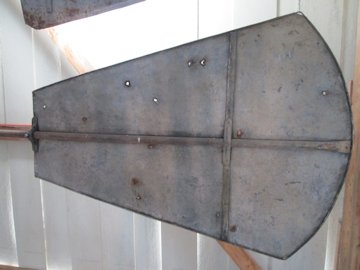

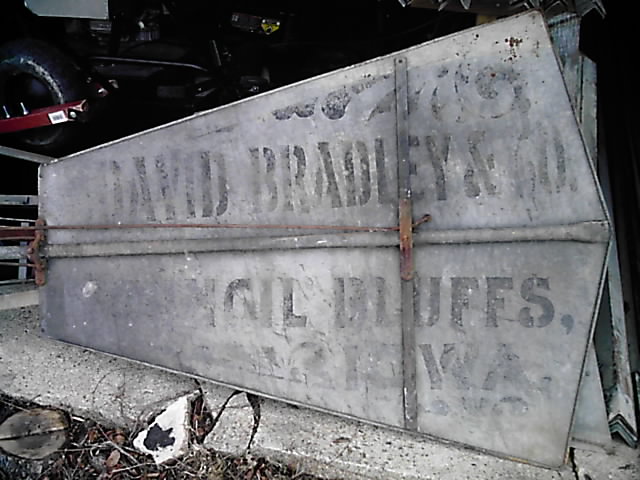

Superior Vane From The Original David Bradley Dist. Co.

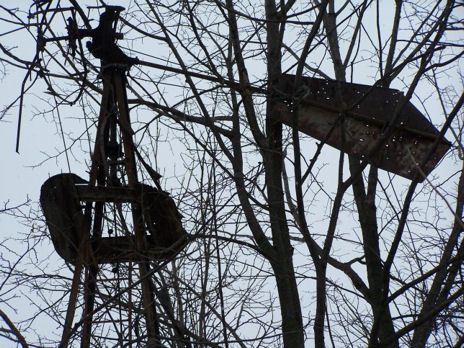

Superior Head

Andrew Model A Head

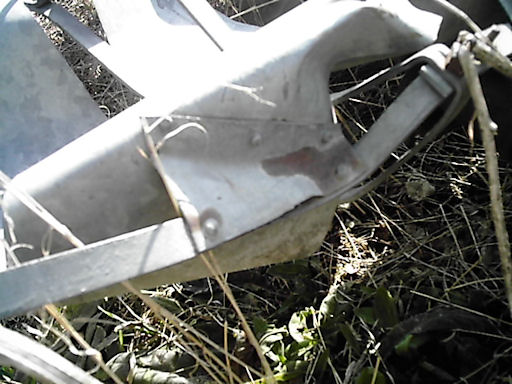

Superior Sail Brace

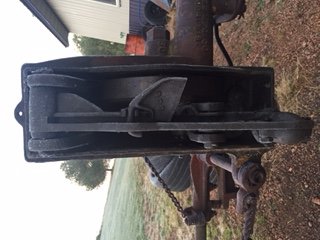

Andrew Internal Gear Head

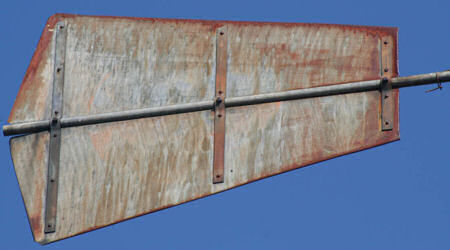

8ft Andrew Vane
